Turn Led On And Off With Push Button Using Arduino & Visuino

Turn Led On And Off With Push Button Using Arduino & Visuino

Photo of Ron

Made by Ron / Home Automation / Lights / Robotics

About the project

In this tutorial we are going to learn how to turn the LED ON or OFF with a button.

Project info

Difficulty: Easy

Platforms: Arduino,  DFRobot,  Visuino

Estimated time: 1 hour

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

Breadboard (generic) Breadboard (generic) x 1
Jumper wires (generic) Jumper wires (generic) x 1
Arduino UNO Arduino UNO x 1
DFRobot Gravity:Digital Push Button (Yellow) DFRobot Gravity:Digital Push Button (Yellow) x 1
Resistor 1k ohm Resistor 1k ohm x 2
LED (generic) LED (generic) x 1

Software apps and online services

Visuino Visuino
Arduino IDE Arduino IDE

Story

It is a simple tutorial for beginners on how to get started with Visuino. Since buttons are used a lot in many projects this will serve you as a great guide for the future prtojects.

Step 1: What You Will Need

1 / 6

  • Arduino UNO (or any other Arduino or ESP)
  • 2X 1K ohm resistor

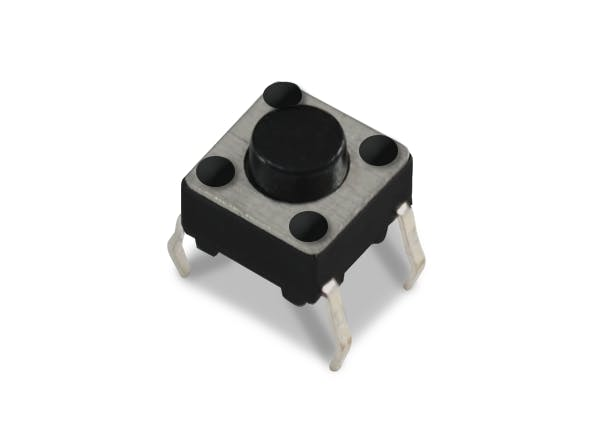

  • Button

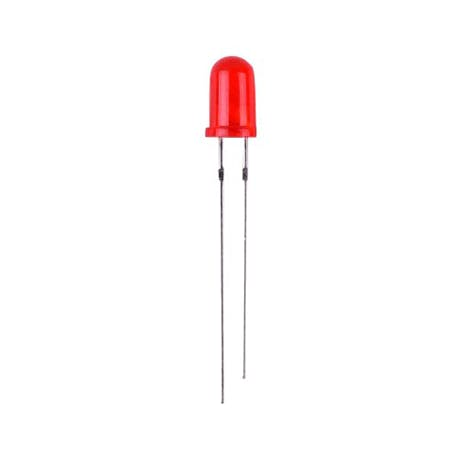

  • LED
  • Jumper wires

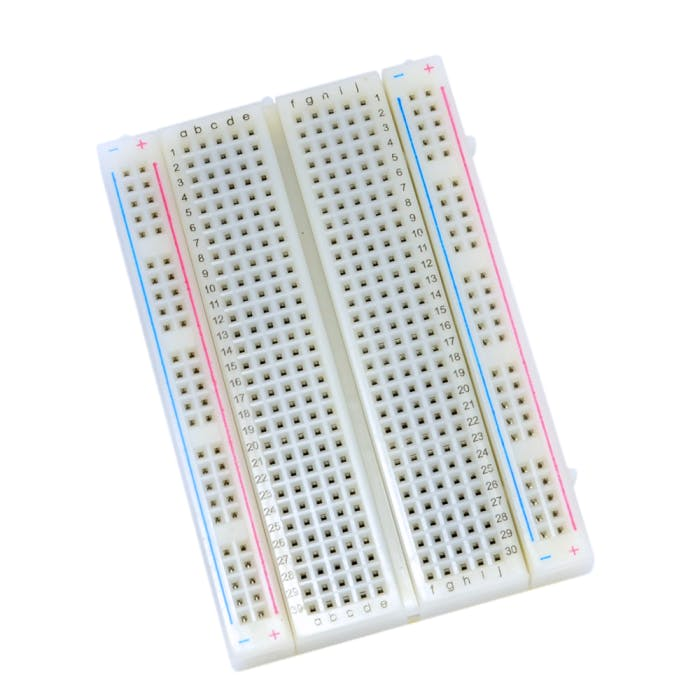

  • Breadboard
  • Visuino program: Download Visuino

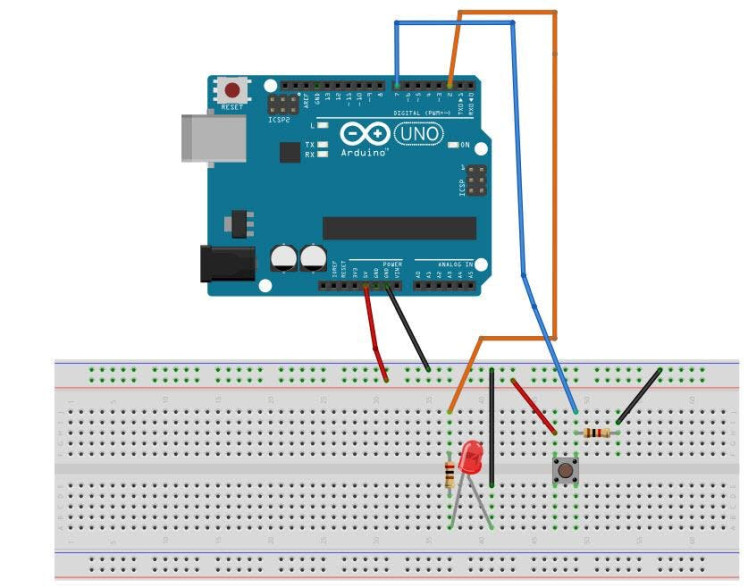

Step 2: The Circuit

  • Connect Arduino Digital pin [7] to button on the breadboard and to the Resistor1
  • Connect other side of the resistor1 to the breadboard pin [GND]
  • Connect Other pin of the button to the breadboard positive pin [5V]
  • Connect Arduino pin [5V] to breadboard positive pin [Red line]
  • Connect Arduino pin [GND] to breadboard negative pin [Black line]
  • Connect Arduino Digital pin [2] to the Resistor2
  • Connect other side of the resistor2 to the LED positive pin
  • Connect LED negative pin to breadboard pin [GND]

Step 3: Start Visuino, and Select the Arduino UNO Board Type

1 / 2

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2

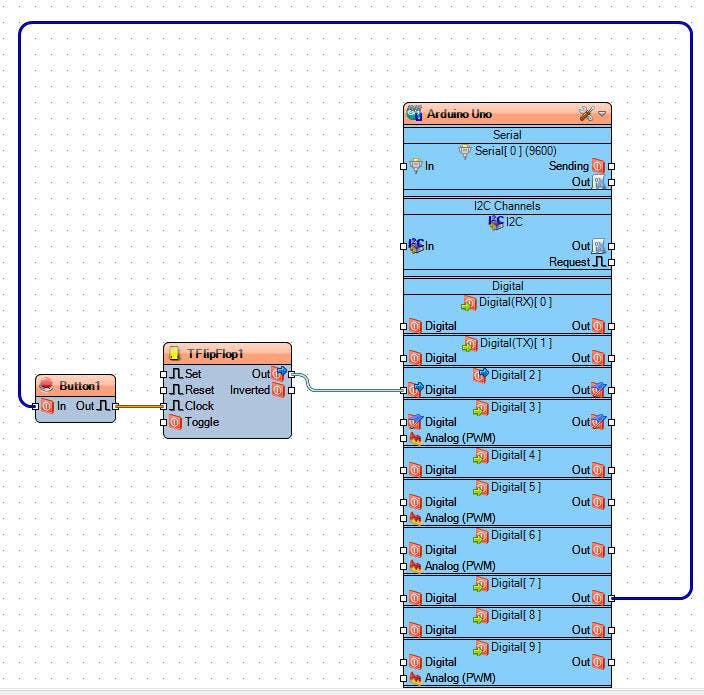

Step 4: In Visuino Add & Connect Components

1 / 3

  • Add "Debounce Button" component
  • Add "Toggle(T) Flip-Flop" component
  • Connect Arduino digital pin [7] to "Button1" pin [In]
  • Connect "Button1" pin [Out] to "TFlipFlop1" pin [Clock]
  • Connect "TFlipFlop1 pin [Out] to Arduino digital pin [2]

Step 5: Generate, Compile, and Upload the Arduino Code

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

Step 6: Play

If you power the Arduino module, press the button and the LED will turn ON or OFF.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this tutorial, you can download it and open it in Visuino: https://www.visuino.eu

Schematics, diagrams and documents

Visuino File

Code

Visuino File
