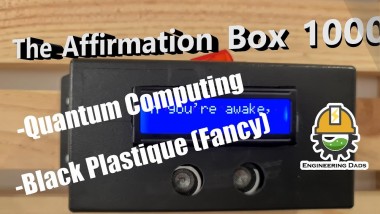

The Affirmation Box 1000: Start Your Day The Right Way!

Made by engineering-dads / Productivity / Robotics / IoT

About the project

Want to Start your Day right every time? Get the New Affirmation Box 1000 by Engineering Dads. The first 100 callers will also get the Dis-Affirmation Box v2.

Project info

Difficulty: Easy

Platforms: Arduino

Estimated time: 6 hours

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

	ARDUINO NANO V3	x 1
	I2C 1602 Arduino LCD Screen To display affirmation message	x 1
	Ultrasonic Distance Sensor - HC-SR04 To detect hand movement	x 1
	Rotary Potentiometer Module output LCD screen at 0.5 V	x 1
	10 JUMPER WIRES 150mm	x 1
	On-Off Power Button / Pushbutton Toggle Switch	x 1
	Instrument Case Plastic	x 1

Hand tools and fabrication machines

	Soldering Kit	x 1
	Dremmel Kit	x 1

Story

This was a fun and simple project targeted at starting your day the right way! The affirmation box uses an ultrasonic sensor to detect when a person is approaching and displays a random affirmation each morning. The most important part of your day is when you wake up and it's important to start it on a good note. To see more about how the affirmation box works, please check out the video below! Please also check out our other social media platforms and other fun projects we have been working on:

Youtube: https://www.youtube.com/channel/UC9RR80AIlM8iC6m6I6Go8Hw

Facebook: https://www.facebook.com/EngineeringDads

Instagram: https://www.instagram.com/engineering.dad/

Tik Tok: https://www.tiktok.com/@engineering.dads

Code

Affirmation Box Code

// defines variables
#include <LiquidCrystal.h> // includes the LiquidCrystal Library
LiquidCrystal lcd(2, 3, 4, 5, 6, 7); // Creates an LCD object. Parameters: (rs, enable, d4, d5, d6, d7)
const int trigPin = 9;
const int echoPin = 10;
long duration;
int distance;
char *affirmations[] = {"Never laugh too much, never cry too much", "Today, you are in charge", "If you cannot do great things, do small things in a great way","Never will you have this day again. SO MAKE IT COUNT",
                        "The best dreams happen when you're awake, go","Do not leave this room without a purpose", "Thank you for visiting the comfort zone. Next destination. SUCCESS"}; // Only an example of afew affirmations
long affirmation;
int afflength;
void setup() {
Serial.begin(9600);
randomSeed(666);
lcd.begin(16,1); // Initializes the interface to the LCD screen, and specifies the dimensions (width and height) of the display
pinMode(trigPin, OUTPUT);
pinMode(echoPin, INPUT);
}

void loop() {

digitalWrite(trigPin, LOW);
delayMicroseconds(2);
digitalWrite(trigPin, HIGH);
delayMicroseconds(10);
digitalWrite(trigPin, LOW);
duration = pulseIn(echoPin, HIGH);
distance = duration*0.034/2;
Serial.print(distance);
Serial.println();
affirmation = random(sizeof(affirmations)/sizeof(char*));
afflength = strlen(affirmations[affirmation]);

  if (distance <= 10) {
    lcd.setCursor(10,0);
    lcd.print(affirmations[affirmation]);
    delay(500);
    for (int positionCounter = 0; positionCounter < (afflength+8); positionCounter++) {
    // scroll one position left:
    lcd.scrollDisplayLeft();
    if (afflength > 50) {
    delay(100);
  }   else if (afflength > 30) {
      delay(115);
    } else if (afflength > 20) {
      delay(150);
    } else {
      delay(180);
    }
  }
    lcd.clear();
    delay(50);

  }
}
