Text Machina

The goal of this project is to run GPT-2 models for text generation on Raspberry Pi 4, with a nice GUI so text can easily be generated. As well as integration with other projects for enhancing a chatbot etc.

The project was started in May 2022, and I have been working on it since then. I am currently working with the Raspberry PI 4 Model B, but I will be working to get the Pi Zero 2 working as well. The project has been tested on Raspberry Pi OS Bullseye 64 bit.

So what is GPT-2?

It is an open source artificial intelligence made by OpenAi, it takes text inputs and transforms them to generate text outputs. It is the successor to GPT-1. You can find more information on GPT-1 here.

It comes in 4 main sizes that I know of; small, medium, large and extra-large - with 124M, 355M, 774M, and 1.5B parameters, respectively. There are also some more specifically trained ones, but I am not using them here.

I have allowed for a selection to be made within this program to choose which one to run and download. This is because they can consume quite a lot of RAM, so it is handy to be able to choose smaller models for smaller devices.

The other thing to consider is that the RAM is not always available. If you are using a device with a low-end processor, you may not be getting the best performance. So, it's a good idea to have a larger RAM size.

Of course the larger the model, the more outputs can be generated.

You can find out more at here and here.

Why not GPT-3?

GPT-3 is an even me advanced model with 175B parameters.

I believe GPT-3 is currently only available via API; I basically wanted something that would run locally, in future I may add an option to use GPT-3 if Text Machina is connected to the internet. Also I believe GPT-3, while now open to everyone; still requires some sign up to gain access to.

You can read more information here.

And more information on all the GPT models journey here.

So this is just a a nice little easy to setup and run text generator that could integrate into a robot or some other text-based software.

The 3 main bits of code that do the work are:

download_model.py

This is where the models and tokenizers are set and then saved to models/gpt folder.

run_text_generation.py

The pipeline is setup here to load the model and run text generation from the input text provided to the function. This is mainly handled with code from huggingface libraries that abstracts out the downloading and running of the models, so instead of lots of code it's nice and tidy like so:

text_generation = pipeline(task="text-generation", model=f"{models_dir}/{gpt2_size.x}",
tokenizer=f"{models_dir}/{gpt2_size.x}")
generated_text = text_generation(prefix_text,
max_length=output_length.x,
do_sample=sampling_enable,
top_k=top_k_setting,
top_p=top_p_setting,
random_seed=random_seed_setting,
temperature=temperature_setting,
no_repeat_ngram_size=no_repeat_ngram_size_setting,
num_return_sequences=num_return_sequences_setting)[0]

Then finally code for the GUI:

gui_runner.py

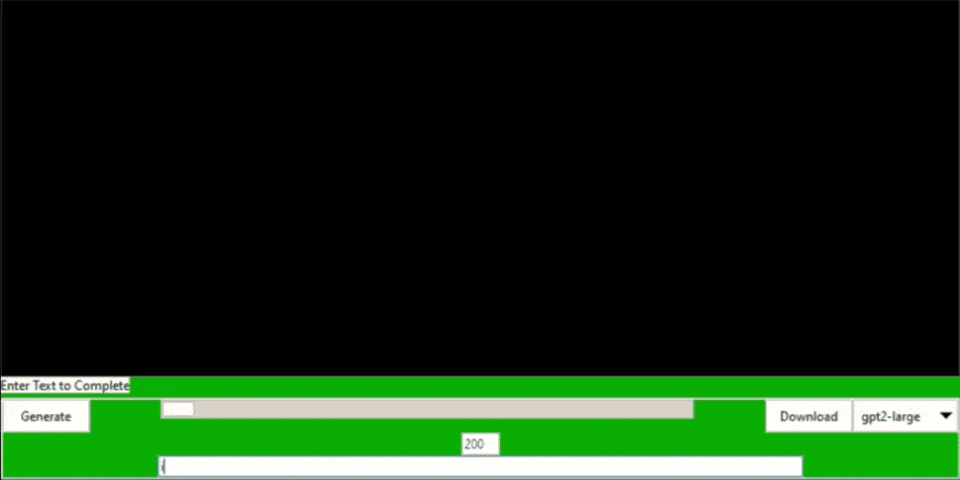

I am using tkinter to create a nice GUI for this, this is where all the code for that resides; it allows for downloading of the models, typing of input text and of course, the output text.

It should prevent any un-wanted clicks during processing by disabling the buttons/text inputs. If you find any bugs with this let me know.

There is also code under utils that can be used to get and set variables, this is used for setting the model version while the program is running.

Under utils there is also:

load_bar_non_iterable.py

and

print_colors.py

Which are used to create nice loading bars when downloading/saving models, these are both borrowed from my latest Chatbot Project.

Before using this please be aware of the biases and limitations of GPT-2, straight from the repos README.md:

Using GPT-2 to generate text may result in some offensive language or some strange things, so please be aware of that.

Go here to read more:
https://huggingface.co/gpt2#limitations-and-bias

So I can't be responsible for any strange things generated by these pre-trained models.

You should also not use this to do anything other than generate text for fun/robots, don't use it for serious things!

GPT-2 Limitations and Bias. < Read this.

In terms of installation you should ensure you have either a decent modern Windows based machine 8gb+ RAM or a Raspberry Pi 4 64 bit OS 4gb RAM or above (I haven't tried on a Pi Zero 2 yet) and also ensure you have Python 3.9 installed. As well as having git and virtualenv installed.

You can see more details of general system requirements here.

It can also take up to a few minutes to process a sentence running even on medium GPT2 size on a Raspberry Pi. But on my Ryzen 5 laptop it is of course considerably faster.

For Raspberry Pi 4's with <8GB RAM you may want to increase swap, with the instructions here. Although the extra large model will most likely require swap on a Pi 4 8GB.

Then clone out the code:

git clone https://github.com/LordofBone/text-machina.git

Setup a virtual environment for python or just install the required libraries to the root python instance:

pip install -r requirements.txt

The GPT2 files are found in the models/gpt/ folder, once they have been downloaded.

Once the models have been downloaded it can be run with no internet connection - perfect for robots/applications that are on the edge.

You can run the GUI using:

python run_text_generator_gui.py

You can also run the setup of models from a function to download the data from the server, so that I can use it in my GUI. It is also used when I want to change the name of a particular model, or to add a new model to the list. Here is what the function looks like:

def get_and_save_models():
"""
    Downloads the GPT2 models if they don't already exist.
:return:
    """
tokenizer = GPT2Tokenizer.from_pretrained(gpt2_size.x)
    model = GPT2Model.from_pretrained(gpt2_size.x)

    model.save_pretrained(f'{models_dir}/{gpt2_size.x}')
    tokenizer.save_pretrained(f'{models_dir}/{gpt2_size.x}')

and that is within the file:

python setup_models.py

You can also run the sentence generation for multiple sentences with:

python run_text_generator_from_file.py

This loads up the file 'seed_sentences.txt' under data/seeds and goes through ever line in the file, then runs text generation on it; it then outputs the generated text.

This can be integrated into other things and use it to generate text, pull down the repo into the folder of the project you are working on, then append the system path of the text machina folder to the system path of the project.

`text_machina_dir = os.path.join( path_to_text_machina )`

`sys.path.append(text_machina_dir)`

You will also need to install everything in requirements.txt and/or add the requirements to your project's requirements.txt

Then just import everything in:

from integrate_text_generation import *

and call

use_text_generation

with a text input.Or call

use_text_generation_from_file

to load a text file from the 'data/seeds' directory and generate text from the sentences within the text files there.

There is also the change model function which can be called to use different models for text generation:

change_gpt2_model(model_name='gpt2-medium')

The GPT2 model has a default configuration file, which is located in the config/gpt2_config.py file. The file is a text file with the following structure:

from pathlib import Path
from utils.get_and_set import Property

dataset_dir = Path(__file__).parent.parent / f"data/seeds/"
models_dir = Path(__file__).parent.parent / f"models/gpt/"

gpt2_models = ["gpt2", "gpt2-medium", "gpt2-large", "gpt2-xl"]

gpt2_size = Property()

sampling_enable = True
top_k_setting = 50
top_p_setting = 0.92
num_return_sequences_setting = 3
# not sure if this works within the text-generation pipeline but adding anyway, '0' should mean no seed set
random_seed_setting = 0
temperature_setting = 0.7

output_length = Property()

default_gpt2_size = gpt2_models[0]

gpt2_size.x = default_gpt2_size

output_length.x = 200

This allows for nice tweaking of the text generation; you can find out more about these settings here.

The gpt2_size variable is a getter/setter that is used to change and reference the model size within the GUI without having to restart the application.

Also extra model names can be added into the gpt2_models list and they will appear under the download/usage options.

The text generation by the gpt2 models is quite impressive, although sometimes it does create non-sensical outputs that are hard to parse and sometimes it didn't make sense - the gpt2-large model especially produces good results, but the gpt2 (small) and gpt2-medium models were also passable and ran a lot faster.

So here are some fun examples I've made using the extra large model:

Input text:

I do want to integrate this into future projects at some point, however; the RAM and processing requirements make it quite difficult to work alongside other code, so I may have to wait until the RPi 5 or use a Pi alternative that has more horse power/memory.

I hope you all enjoyed this latest raspberry pi project. I hope this project can inspire you and give you some ideas for what to do with your Raspberry Pi. If you enjoyed the article and would like to be notified when I post new projects then please subscribe to my blog.

Do you think I typed that last paragraph?

(using Text Machina)

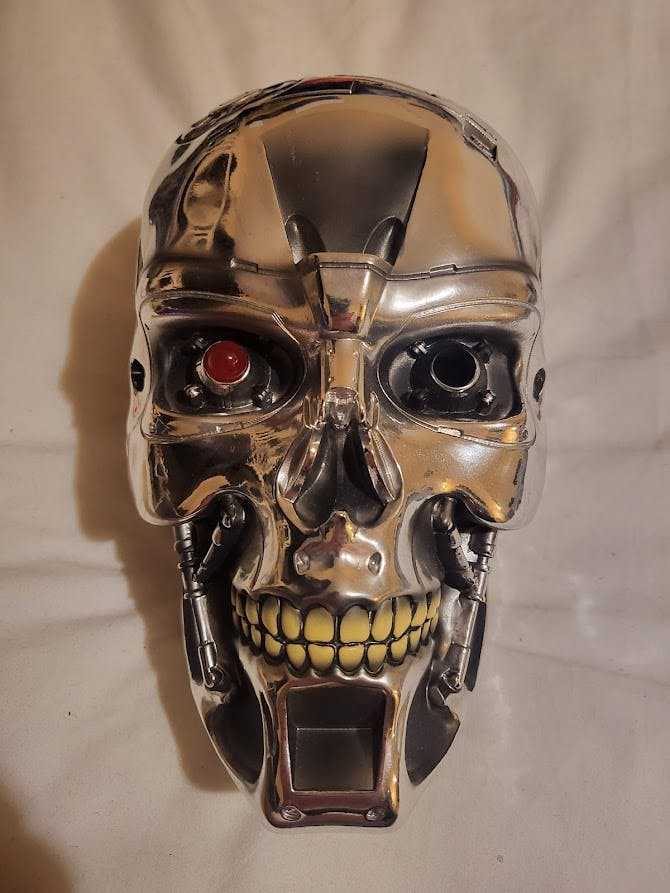

I also have a new Terminator head project on the way - and this would be a great example of where integrating something like this into the chatbot side of it would be awesome for expanding out responses; however as mentioned I think at the moment the CPU/RAM requirements of running everything else as well as this would be too much on a Pi4.

But do keep an eye out for the aforementioned project and see you next time.

Soon.
