Rubber Chicken Subwoofer

Made by TPalowski13 / 3D Printing / Animals / Music / Robotics

About the project

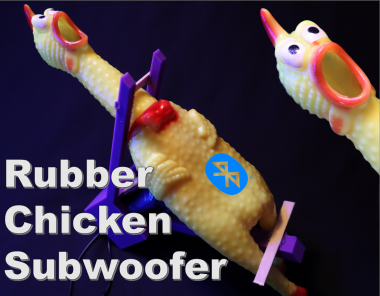

I thought it would be funny to listen to music via Rubber Chicken, thus this Bluetooth Rubber Chicken Subwoofer was born.

Project info

Difficulty: Moderate

Platforms: Adafruit, Arduino

Estimated time: 2 hours

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

	Arduino Uno - R3 Could use Mega, Nano, Uno.	x 1
	Perma-Proto Half Sized Breadboard 3ct Any proto board.	x 1
	DF Robot Audio Analyzer	x 1
	12V Push-Pull Solenoid	x 1

Software apps and online services

Arduino IDE

Hand tools and fabrication machines

Soldering Iron

x 1

Story

I had the idea to make a funny Bluetooth speaker that makes noise by physically squeezing those squawking rubber chickens. I have a YouTube channel where I make these kinds of projects, linked below you can find the build and demonstration videos!

The device works by using an incoming audio signal via salvaged bluetooth earbuds. Then splitting the signal into 7 different channels using an Audio Analyzer (DFRobot brand), those signals get sent an Arduino Mega which then triggers a 12V solenoid. The solenoid is triggered by a circuit using a 30N06L MOSFET.

The enclosure used to hold the chicken was just a simple Sputnik inspired holder mocked up in Solidworks and 3D Printed. The print combined with some strategically placed/hot-glued popsicle sticks were enough to hold the chicken and solenoid in place.

Here's the Build Video: https://youtu.be/SyhLgpI_NUA

Here's the Demonstration Video: https://youtu.be/CJgRqDsG1JQ

Rubber Chicken Holder: https://www.thingiverse.com/thing:4196808

Schematics, diagrams and documents

Wiring Schematic

Wiring schematic for the rubber chicken subwoofer, using DFRobot Audio Analyzer.

CAD, enclosures and custom parts

Rubber Chicken Holder

STL file of the rubber chicken holder used for project.

Go to download

Code

Audio Analyzer Code

Everything can be tweaked. Original Code by HeathenHacks on YouTube.

#include <AudioAnalyzer.h>

#define msgRST 12
#define msgStrobe 13
#define msgAnalog 0
Analyzer Audio = Analyzer(10, 11, 0); //Strobe pin ->10  RST pin ->11 Analog Pin ->0


int LEDpins[7] = {2, 3, 4, 5, 6, 7, 8};
int FreqVal[7] = {63, 160, 400, 1000, 2500, 6250, 16000};

void setup()
{
  Serial.begin(57600);  //Init the baudrate
  Audio.Init();         //Init module

  for (int x = 0; x < 7; x++) {
    pinMode(LEDpins[x], OUTPUT);
  }
  pinMode(msgRST, OUTPUT);
  pinMode(msgStrobe, OUTPUT);
}


void loop()
{
  Audio.ReadFreq(FreqVal);      //return 7 value of 7 bands pass filter
  //Frequency(Hz):63  160  400  1K  2.5K  6.25K  16K
  //FreqVal[7]:      0    1    2    3    4    5    6
  digitalWrite(msgRST, HIGH);
  delay(20);
  digitalWrite(msgRST, LOW);

  for (int x = 0; x < 7; x++)
  {
    digitalWrite(msgStrobe, LOW);
    delayMicroseconds(20);
    int spectrumRead = analogRead(0);
    int PWMvalue = map(spectrumRead, 0, 1024, 0, 255);
    if (PWMvalue < 75)
      PWMvalue = PWMvalue / 100;
    analogWrite(LEDpins[x], PWMvalue);
    digitalWrite(msgStrobe, HIGH);


    Serial.print(max((FreqVal[x] - 100), 0));     //Transmit the DC value of the seven bands
    if (x < 6)  Serial.print(",");
    else Serial.println();
  }



}
SCHEMATICS

Credits

TPalowski13

Mechanical Engineering Graduate, Youtuber. I like to make dumb builds that I find funny.
