Programming Propane: Espnow And Fire Shooting Walkway Lights

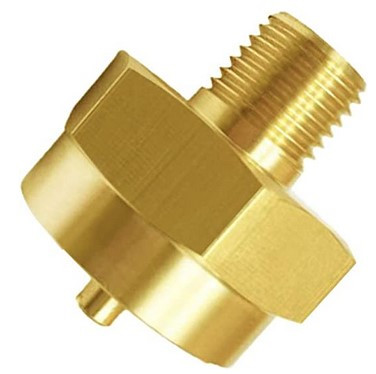

The Concept: Upon returning to my idyllic suburbanite life after a long day's work, I wanted to feel more awesome. More badass. The solution? Fire and (electric guitar) power chords.

I had an idea inspired by my buddy Tomasz, who shares all of his projects here.

Specifically, he made for me the best gift ever:

/*
This is poorly written code shared by Dan from Gears, Code, and Fire
https://youtube.com/@gearscodeandfire

Gigantic credit to Rui Santos of randomnerdtutorials.com

You are advised against reproducing this for the original putpose (shooting fire)
That said, this is simply code for the master chip using the ESPNow library.
Pressing buttons on the recommended keyboard (https://www.tindie.com/products/arturo182/bb-q20-keyboard-with-trackpad-usbi2cpmod/)

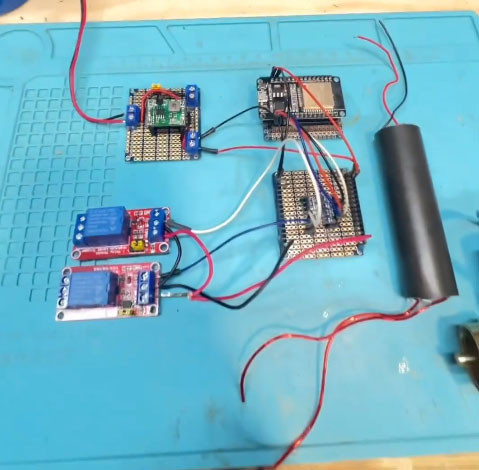

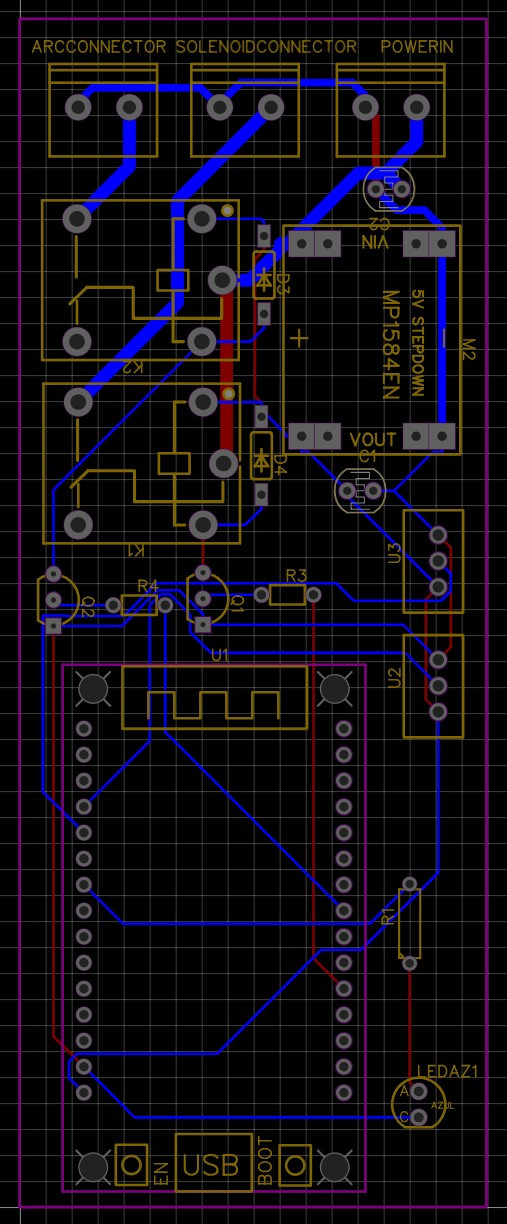

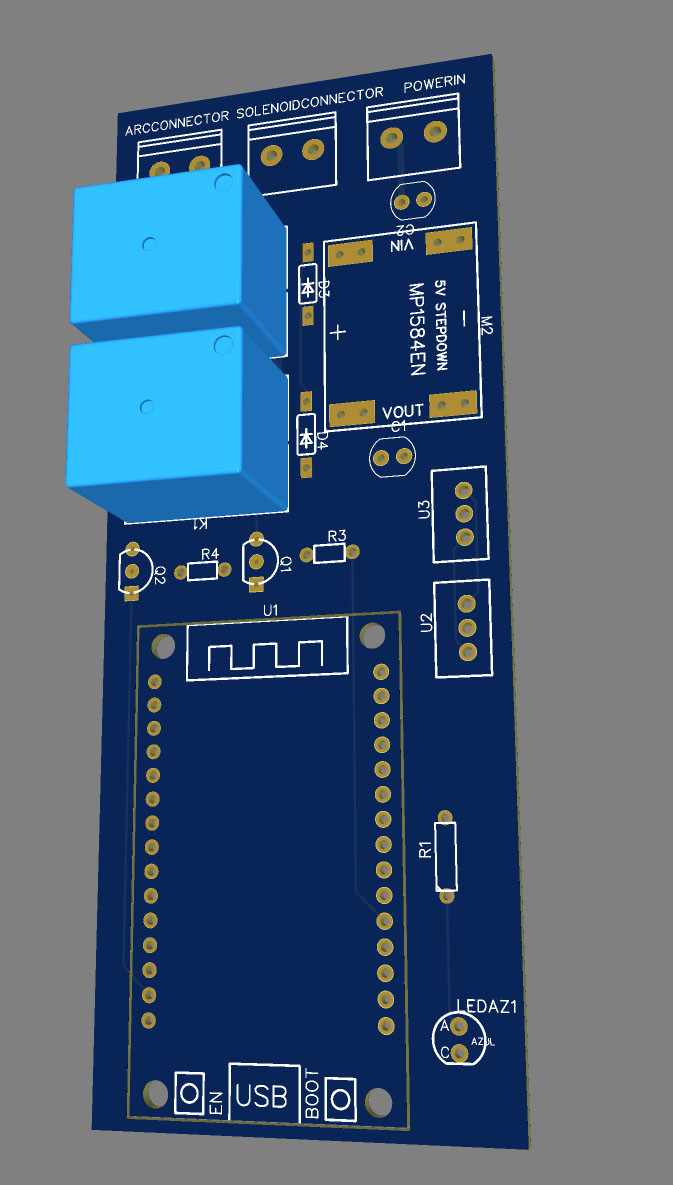

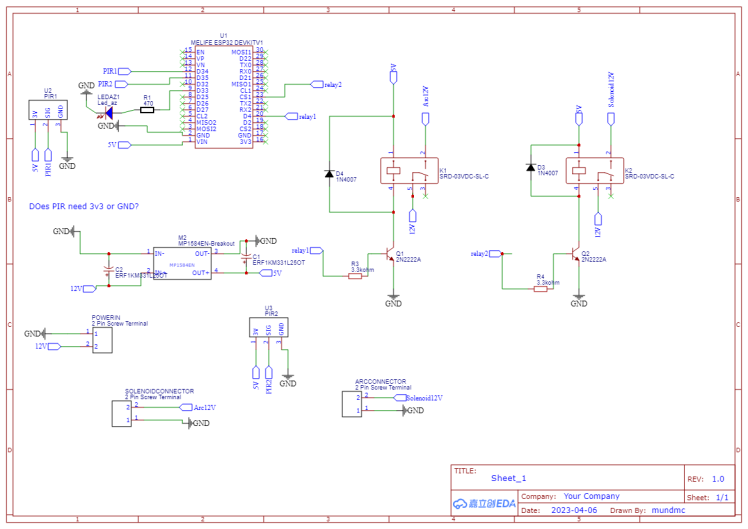

controls varying combos of 6 ESPNow slave esp32 chips running two 12V relays and an LED

Originally posted 9/23/2023 to https://www.electromaker.io/

v5: instead of broadcasting to all, i iterate over it and it works fine now
*/
#include <Arduino.h>
#include <esp_now.h>
#include <WiFi.h>
#include <algorithm>
#include <BBQ10Keyboard.h>
#include <iostream>
#include <string>


#define CHANNEL 0
#define PRINTSCANRESULTS 0
#define NUMSLAVES 7 //

esp_now_peer_info_t slaves[NUMSLAVES] = {};
BBQ10Keyboard keyboard;
int SlaveCnt = 0;

//led onboard
const int ledPin = 2;    // the number of the LED pin

// Set up tactile buttons // I stopped using this approach at some point
struct Button {
  const int pin;
  bool currentState;
  bool prevState;
};

//I am not using these in this code (they are here for redundancy), but they reflect the mac addresses of the six slave esp32s
String burnerMac[6] = {"94:3C:C6:33:99:24",
                        "08:B6:1F:34:A5:50",
                        "08:B6:1F:3B:53:1C",
                        "C8:F0:9E:74:E1:A0",
                        "08:B6:1F:3D:22:70",
                        "C8:F0:9E:50:7D:40"};

/* This was discovery info logged form ESPNow about my 6 slave chips
1: Slave:C8:F0:9E:74:E1:A0 [C8:F0:9E:74:E1:A1] (-48) burner[3]
2: Slave:08:B6:1F:34:A5:50 [08:B6:1F:34:A5:51] (-51) burner[1]
5: Slave:C8:F0:9E:50:7D:40 [C8:F0:9E:50:7D:41] (-55) burner[5]
6: Slave:08:B6:1F:3B:53:1C [08:B6:1F:3B:53:1D] (-56) burner[2]
7: Slave:94:3C:C6:33:99:24 [94:3C:C6:33:99:25] (-61) burner[0]
8: Slave:08:B6:1F:3D:22:70 [08:B6:1F:3D:22:71] (-65) burner[4]
*/


// I stopped using below as well, but leave it incase somebody wants to go with push-buttons
const int numButtons = 6;
Button buttons[numButtons] = {
  {4, false, false},
  {16, false, false},
  {17, false, false},
  {5, false, false},
  {18, false, false},
  {19, false, false}
};

//timers for ScanSlave and ManageSlave
unsigned long scanTimer = 600000;
unsigned long lastTimer = 0;

//below is the basic transmission payload that I determine
typedef struct cmd_struct {
  uint8_t burnerNumbers[6];
  bool fire[6];
  uint8_t igniterStartDelays[6]; //IMPORTANT: uint8_t is 1 byte, int is 4 bytes. Max value is 255, so I will have to multiply it by 10 on the client side
  //this is because the bytes are translated into time delays on the slave chip
  uint8_t igniterEndDelays[6];
  uint8_t solenoidEndDelays[6];
} cmd_struct;

typedef struct payload_struct {
  uint8_t burnerNumbers[6];
  bool fire[6];
  uint8_t igniterStartDelays[6]; //IMPORTANT: uint8_t is 1 byte, int is 4 bytes. Max value is 255, so I will have to multiply it by 10 on the client side
  // as above
  uint8_t igniterEndDelays[6];
  uint8_t solenoidEndDelays[6];
} payload_struct;

payload_struct* payload;

// Init ESP Now with fallback
void InitESPNow() {
  WiFi.disconnect();
  if (esp_now_init() == ESP_OK) {
    Serial.println("ESPNow Init Success");
  }
  else {
    Serial.println("ESPNow Init Failed");
    // Retry InitESPNow, add a counte and then restart?
    // InitESPNow();
    // or Simply Restart
    ESP.restart();
  }
}

// Scan for slaves in AP mode
void ScanForSlave() {
  int8_t scanResults = WiFi.scanNetworks(); //returns an int8_t of compatible devices (e.g. in AP mode)
  //reset slaves
  memset(slaves, 0, sizeof(slaves));
  SlaveCnt = 0;
  Serial.println("");
  if (scanResults == 0) {
    Serial.println("No WiFi devices in AP Mode found");
  } else {
    Serial.print("Found "); Serial.print(scanResults); Serial.println(" devices ");
    for (int i = 0; i < scanResults; ++i) {
      // Print SSID and RSSI for each device found
      String SSID = WiFi.SSID(i);
      int32_t RSSI = WiFi.RSSI(i);
      String BSSIDstr = WiFi.BSSIDstr(i);

      if (PRINTSCANRESULTS) { //initialized to 0
        Serial.print(i + 1); Serial.print(": "); Serial.print(SSID); Serial.print(" ["); Serial.print(BSSIDstr); Serial.print("]"); Serial.print(" ("); Serial.print(RSSI); Serial.print(")"); Serial.println("");
      }
      delay(10);
      // Check if the current device starts with `Slave`
      if (SSID.indexOf("Slave") == 0) {
        // SSID of interest
        Serial.print(i + 1); Serial.print(": "); Serial.print(SSID); Serial.print(" ["); Serial.print(BSSIDstr); Serial.print("]"); Serial.print(" ("); Serial.print(RSSI); Serial.print(")"); Serial.println("");
        // Get BSSID => Mac Address of the Slave
        int mac[6];

        if ( 6 == sscanf(BSSIDstr.c_str(), "%x:%x:%x:%x:%x:%x",  &mac[0], &mac[1], &mac[2], &mac[3], &mac[4], &mac[5] ) ) {
          for (int ii = 0; ii < 6; ++ii ) {
            slaves[SlaveCnt].peer_addr[ii] = (uint8_t) mac[ii];
          } // it appears the variable slaves[i].peer_addr = an array of 6 hexidecimal numbers
        }
        slaves[SlaveCnt].channel = CHANNEL; // pick a channel
        slaves[SlaveCnt].encrypt = 0; // no encryption
        SlaveCnt++;
      }
    }
  }

  if (SlaveCnt > 0) {
    Serial.print(SlaveCnt); Serial.println(" Slave(s) found, processing..");
  } else {
    Serial.println("No Slave Found, trying again.");
  }

  // clean up ram
  WiFi.scanDelete();
}

// Check if the slave is already paired with the master.
// If not, pair the slave with master
void manageSlave() {
  if (SlaveCnt > 0) {
    for (int i = 0; i < SlaveCnt; i++) {
      Serial.print("Processing: ");
      for (int ii = 0; ii < 6; ++ii ) { //purely for outputting mac addresses of slaves; Slave[i] is int, Slave[i].peeraddr is mac in an array[6]
        Serial.print((uint8_t) slaves[i].peer_addr[ii], HEX);
        if (ii != 5) Serial.print(":");
      }
      Serial.print(" Status: ");
      // check if the peer exists
      bool exists = esp_now_is_peer_exist(slaves[i].peer_addr);
      if (exists) {
        // Slave already paired.
        Serial.println("Already Paired");
      } else {
        // Slave not paired, attempt pair
        esp_err_t addStatus = esp_now_add_peer(&slaves[i]);
        if (addStatus == ESP_OK) {
          // Pair success
          Serial.println("Pair success");
          //THIS IS WHERE I SHOULD WRITE IT TO EEPROM, and on the SLAVE SIDE I SHOULD DO THE SAME
        } else if (addStatus == ESP_ERR_ESPNOW_NOT_INIT) {
          // How did we get so far!!
          Serial.println("ESPNOW Not Init");
        } else if (addStatus == ESP_ERR_ESPNOW_ARG) {
          Serial.println("Add Peer - Invalid Argument");
        } else if (addStatus == ESP_ERR_ESPNOW_FULL) {
          Serial.println("Peer list full");
        } else if (addStatus == ESP_ERR_ESPNOW_NO_MEM) {
          Serial.println("Out of memory");
        } else if (addStatus == ESP_ERR_ESPNOW_EXIST) {
          Serial.println("Peer Exists");
        } else {
          Serial.println("Not sure what happened");
        }
        //delay(100);
      }
    }
  } else {
    // No slave found to process
    Serial.println("No Slave found to process");
  }
}

void sendData(const uint8_t* burnerNumbers, const bool* fire, const uint8_t* igniterStartDelays, const uint8_t* igniterEndDelays,const uint8_t* solenoidEndDelays) {
  cmd_struct cmd;

  std::copy(burnerNumbers, burnerNumbers+6, cmd.burnerNumbers);
  std::copy(fire, fire+6, cmd.fire);
  std::copy(igniterStartDelays, igniterStartDelays+6, cmd.igniterStartDelays);
  std::copy(igniterEndDelays, igniterEndDelays+6, cmd.igniterEndDelays);
  std::copy(solenoidEndDelays, solenoidEndDelays+6, cmd.solenoidEndDelays);

  //esp_err_t result = esp_now_send(peer_addr, &test, sizeof(test));
  for(int i=0; i<SlaveCnt; i++){ //QUESTION: is slaves[i] same as cmd.burnerNumbers[i]
    esp_err_t result = esp_now_send(slaves[i].peer_addr, (uint8_t *) &cmd, sizeof(cmd_struct)); //peer_addr replaced with 0 for all
    Serial.print("Send Status: ");
    if (result == ESP_OK) {
      Serial.println("Success");
    } else if (result == ESP_ERR_ESPNOW_NOT_INIT) {
      Serial.println("ESPNOW not Init.");
    } else if (result == ESP_ERR_ESPNOW_ARG) {
      Serial.println("Invalid Argument");
    } else if (result == ESP_ERR_ESPNOW_INTERNAL) {
      Serial.println("Internal Error");
    } else if (result == ESP_ERR_ESPNOW_NO_MEM) {
      Serial.println("ESP_ERR_ESPNOW_NO_MEM");
    } else if (result == ESP_ERR_ESPNOW_NOT_FOUND) {
      Serial.println("Peer not found.");
    } else {
      Serial.println("Not sure what happened");
    }
  }
}

// callback when data is sent from Master to Slave
void OnDataSent(const uint8_t *mac_addr, esp_now_send_status_t status) {
  /*char macStr[18];
  snprintf(macStr, sizeof(macStr), "%02x:%02x:%02x:%02x:%02x:%02x",
           mac_addr[0], mac_addr[1], mac_addr[2], mac_addr[3], mac_addr[4], mac_addr[5]);
  Serial.print("Last Packet Sent to: "); Serial.println(macStr);
  Serial.print("Last Packet Send Status: "); Serial.println(status == ESP_NOW_SEND_SUCCESS ? "Delivery Success" : "Delivery Fail");
  */
}


bool wasClicked(int x){
  if(!buttons[x].currentState && buttons[x].prevState){
    return true;
  }
  else
    return false;
}

// callback when data is recv from Master
void OnDataRecv(const uint8_t *mac_addr, const uint8_t *data, int data_len) {
  char macStr[18];
  payload = (payload_struct*) data;

  snprintf(macStr, sizeof(macStr), "%02x:%02x:%02x:%02x:%02x:%02x",
           mac_addr[0], mac_addr[1], mac_addr[2], mac_addr[3], mac_addr[4], mac_addr[5]);
  // DEBUG
  Serial.print("Last Packet Recv from: "); Serial.println(macStr);
}

void setup() {
  Serial.begin(115200);
  delay(1000);
  WiFi.mode(WIFI_STA);
  Serial.println("ESPNow ***MASTER***");
  Serial.print("STA MAC: "); Serial.println(WiFi.macAddress());
  Wire.begin();
  keyboard.begin();
  keyboard.setBacklight(0.5f);
  InitESPNow();
  esp_now_register_send_cb(OnDataSent);
  esp_now_register_recv_cb(OnDataRecv);

  // DECLARE IO PINS
  pinMode(ledPin, OUTPUT);
  for(int i=0; i<6; i++)
    pinMode(buttons[i].pin, INPUT_PULLDOWN);

  //Initial scan
  ScanForSlave(); // I need to not do this repeatedly and add a timer
  if (SlaveCnt > 0) // check if slave channel is defined
    manageSlave(); // THIS TAKES ABOUT 6 SECONDS AND SHOULD NOT BE CALLED IN THE LOOOP UNLESS NECESSARY
  Serial.println("Setup complete");
}

void loop() {
  const int keyCount = keyboard.keyCount();
  uint8_t burnerNumbers[6] = {0, 1, 2, 3, 4, 5};
  bool fire[6] = {0, 0, 0, 0, 0, 0};
  uint8_t igniterStartDelays[6] = {0, 0, 0, 0, 0, 0}; //IMPORTANT: uint8_t is 1 byte, int is 4 bytes. Max value is 255, so I will have to multiply it by 10 on the client side
  uint8_t igniterEndDelays[6] = {1, 1, 1, 1, 1, 1};
  uint8_t solenoidEndDelays[6] = {2, 2, 2, 2, 2, 2,};

  for(int i=0; i<6; i++){
    buttons[i].currentState = digitalRead(buttons[i].pin);
    if (buttons[i].currentState == LOW) digitalWrite(ledPin, LOW);
    else digitalWrite(ledPin, HIGH);
  }
  if(millis()-lastTimer > scanTimer){
    lastTimer = millis();
    ScanForSlave(); // I need to not do this repeatedly and add a timer
    if (SlaveCnt > 0) // check if slave channel is defined
      manageSlave(); // THIS TAKES ABOUT 6 SECONDS AND SHOULD NOT BE CALLED IN THE LOOOP UNLESS NECESSARY
  }
  //check who got clicked
  for(uint8_t i=0; i<6; i++){
    if(wasClicked(i)){
      fire[i] = 1;
      igniterStartDelays[i] = 50; // MAKE SURE TO MULTIPLY THESE x10 in the SLAVE CODE
      igniterEndDelays[i] = 4;
      solenoidEndDelays[i] = 5;

      sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
      Serial.printf("Button %d was clickedn", i);
    }
  }

  for(int i=0; i<6; i++)
    buttons[i].prevState = buttons[i].currentState;
  if (keyCount != 0){
    uint8_t burnerNumbers[6] = {0, 1, 2, 3, 4, 5};
    bool fire[6] = {0, 0, 0, 0, 0, 0};
    uint8_t igniterStartDelays[6] = {0, 0, 0, 0, 0, 0}; //IMPORTANT: uint8_t is 1 byte, int is 4 bytes. Max value is 255, so I will have to multiply it by 10 on the client side
    uint8_t igniterEndDelays[6] = {1, 1, 1, 1, 1, 1};
    uint8_t solenoidEndDelays[6] = {2, 2, 2, 2, 2, 2,};

    const BBQ10Keyboard::KeyEvent key = keyboard.keyEvent();

    if (key.state == BBQ10Keyboard::StatePress){
      Serial.print(key.key); Serial.println(" pressed");
      switch(key.key){
        case 'w': //burner 0, small poof
          fire[0] = 1;
          igniterStartDelays[0] = 0;
          igniterEndDelays[0] = 10; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[0] = 10;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
        case 's': //burner 0, bigger poof
          fire[0] = 1;
          igniterStartDelays[0] = 10; //eg 200
          igniterEndDelays[0] = 10; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[0] = 10;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
        case 'z': //burner 0, biggest poof
          fire[0] = 1;
          igniterStartDelays[0] = 0; //eg 200
          igniterEndDelays[0] = 20; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[0] = 0;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
          /////////////////////////////////////////////////////////////////////////////
        case 'e': //burner 1, small poof
          fire[1] = 1;
          igniterStartDelays[1] = 0;
          igniterEndDelays[1] = 10; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[1] = 10;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
        case 'd': //burner 1, bigger poof
          fire[1] = 1;
          igniterStartDelays[1] = 10; //eg 200
          igniterEndDelays[1] = 10; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[1] = 10;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
        case 'x': //burner 1, biggest poof
          fire[1] = 1;
          igniterStartDelays[1] = 0; //eg 200
          igniterEndDelays[1] = 20; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[1] = 0;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
          /////////////////////////////////////////////////////////////////////////////////////
        case 'r': //burner 2, small poof
          fire[2] = 1;
          igniterStartDelays[2] = 0;
          igniterEndDelays[2] = 10; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[2] = 10;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
        case 'f': //burner 2, bigger poof
          fire[2] = 1;
          igniterStartDelays[2] = 10; //eg 200
          igniterEndDelays[2] = 10; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[2] = 10;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
        case 'c': //burner 2, biggest poof
          fire[2] = 1;
          igniterStartDelays[2] = 0; //eg 200
          igniterEndDelays[2] = 20; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[2] = 0;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          Serial.println("w pressed");
          break;
          /////////////////////////////////////////////////////////////////////////////////////
        case 't': //burner 3, small poof
          fire[3] = 1;
          igniterStartDelays[3] = 0;
          igniterEndDelays[3] = 10; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[3] = 10;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
        case 'g': //burner 3, bigger poof
          fire[3] = 1;
          igniterStartDelays[3] = 10; //eg 200
          igniterEndDelays[3] = 10; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[3] = 10;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
        case 'v': //burner 3, biggest poof
          fire[3] = 1;
          igniterStartDelays[3] = 0; //eg 200
          igniterEndDelays[3] = 20; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[3] = 0;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
          //////////////////////////////////////////////////////////////////////////
        case 'y': //burner 4, small poof
          fire[4] = 1;
          igniterStartDelays[4] = 0;
          igniterEndDelays[4] = 10; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[4] = 10;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
        case 'h': //burner 4, bigger poof
          fire[4] = 1;
          igniterStartDelays[4] = 10; //eg 200
          igniterEndDelays[4] = 10; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[4] = 10;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
        case 'b': //burner 4, biggest poof
          fire[4] = 1;
          igniterStartDelays[4] = 0; //eg 200
          igniterEndDelays[4] = 20; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[4] = 0;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
          ///////////////////////////////////////////////////////////////////////////
        case 'u': //burner 5, small poof
          fire[5] = 1;
          igniterStartDelays[5] = 0;
          igniterEndDelays[5] = 10; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[5] = 10;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
        case 'j': //burner 5, bigger poof
          fire[5] = 1;
          igniterStartDelays[5] = 10; //eg 200
          igniterEndDelays[5] = 10; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[5] = 10;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
        case 'n': //burner 5, biggest poof
          fire[5] = 1;
          igniterStartDelays[5] = 0; //eg 200
          igniterEndDelays[5] = 20; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[5] = 0;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
        //////////////////////// DUAL BURNERS !!!!!////////////////////////////
        case 'i': //burner 1 and 2 safe poof
          fire[0] = 1;
          igniterStartDelays[0] = 0; //eg 200
          igniterEndDelays[0] = 20; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[0] = 0;
          fire[1] = 1;
          igniterStartDelays[1] = 0; //eg 200
          igniterEndDelays[1] = 20; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[1] = 0;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
        case 'k': //burner 2 and 3 safe poof
          fire[2] = 1;
          igniterStartDelays[2] = 0; //eg 200
          igniterEndDelays[2] = 20; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[2] = 0;
          fire[3] = 1;
          igniterStartDelays[3] = 0; //eg 200
          igniterEndDelays[3] = 20; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[3] = 0;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
        case 'm': //burner 2 and 3 safe poof
          fire[4] = 1;
          igniterStartDelays[4] = 0; //eg 200
          igniterEndDelays[4] = 20; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[4] = 0;
          fire[5] = 1;
          igniterStartDelays[5] = 0; //eg 200
          igniterEndDelays[5] = 20; //remember these ge 10x when the client finally receives them
          solenoidEndDelays[5] = 0;
          sendData(burnerNumbers, fire, igniterStartDelays, igniterEndDelays, solenoidEndDelays);
          break;
      }
    }
  }
}
