Nearby Bluetooth Devices Scanner M5stack Core Esp32

Nearby Bluetooth Devices Scanner M5stack Core Esp32

Photo of Ron

Made by Ron / Communication / Displays / IoT

About the project

In this tutorial we will learn how to make a Bluetooth Scanner using M5Stack Core ESP32, to Scan & Display the Nearby Bluetooth Devices.

Project info

Difficulty: Easy

Platforms: Arduino,  Visuino,  M5Stack

Estimated time: 1 hour

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

M5Stack ESP32 Basic Core IoT Development Kit M5Stack ESP32 Basic Core IoT Development Kit x 1

Software apps and online services

Visuino Visuino
Arduino IDE Arduino IDE

Story

In this tutorial we will learn how to make a Bluetooth Scanner using M5Stack Core ESP32 and Visuino, to Scan & Display the Nearby Bluetooth Devices.

Watch the video!

Step 1: What You Will Need

1 / 2

Step 2: Start Visuino, and Select the M5 Stack Core Board Type

1 / 2

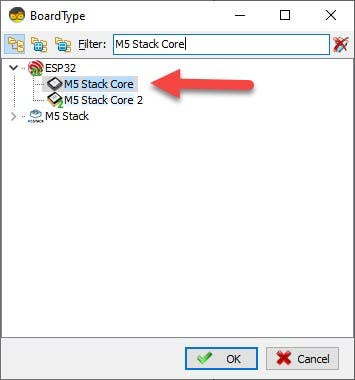

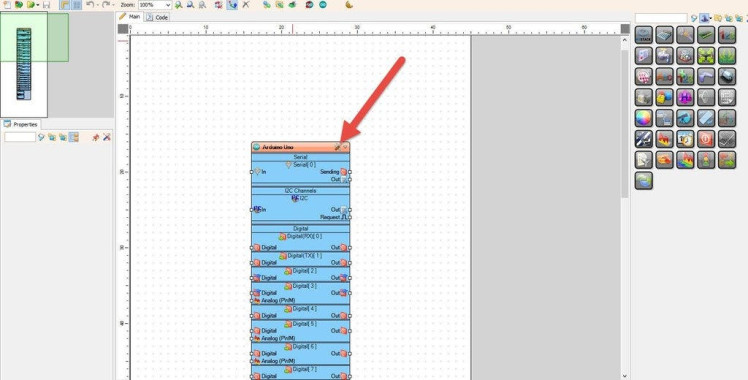

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "M5 Stack Core" as shown on Picture 2

Step 3: In Visuino Add & Set Components

1 / 5

  • Add "Digital Multi Source" component

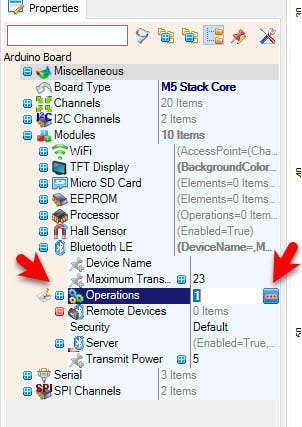

  • Select "M5 Stack Core" and in the properties window expand "Modules" > "Bluetooth LE" > "Operations" and click on the 3 dots button.
  • In "Operations" window drag "Search Bluetooth Devices" to the left side
  • Close the "Operations" window

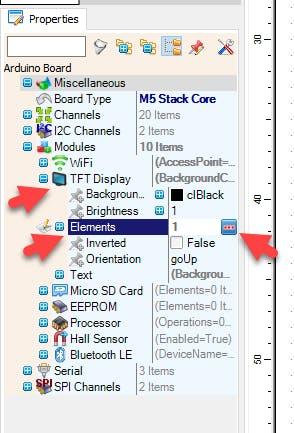

  • Select "M5 Stack Core" and in the properties window expand "Modules" > "TFT Display" > "Elements" and click on the 3 dots button.

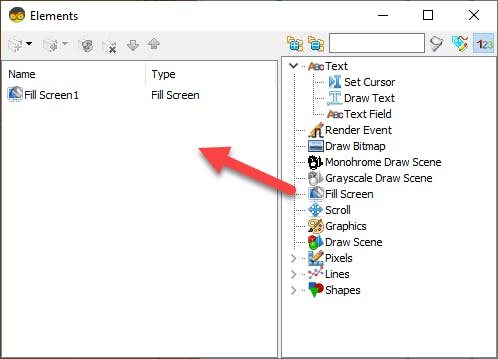

  • In the "Elements" window drag "Fill Screen" to the left side and close the window

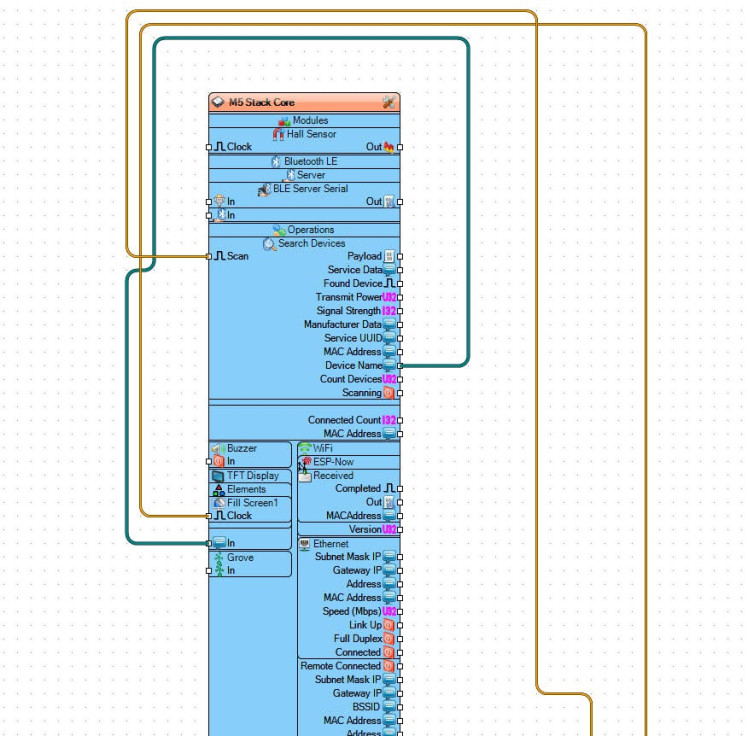

Step 4: In Visuino Connect Components

1 / 2

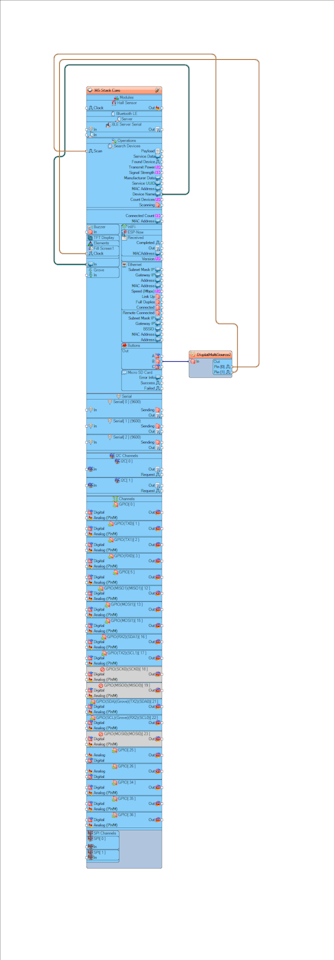

  • Connect "M5 Stack Core" pin Out (B) to "DigitalMultiSource1" pin [In]
  • Connect "DigitalMultiSource1" pin [0] to "M5 Stack Core" > "FillScreen1" pin [Clock]"
  • Connect "DigitalMultiSource1" pin [1] to "M5 Stack Core" > "Search Devices" pin [Scan]"
  • Connect "M5 Stack Core" > pin "Device Name" to "M5 Stack Core" >"TFT Display" pin [In]

Step 5: Generate, Compile, and Upload the Code

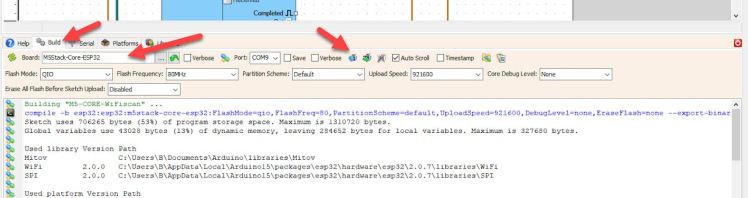

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.

Step 6: Play

If you power the M5 Stack Core module and click on the B button, the module will start scanning for Bluetooth devices. After the scanning is finished you will be able to se on the display the names of the Bluetooth devices nearby.

Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this project, you can download it and open it in Visuino: https://www.visuino.eu

Schematics, diagrams and documents

Visuino File

Code

Visuino File

Credits

Photo of Ron

Ron

Arduino Developer
