Measure And Display The Earth's Magnetic Field

About the project

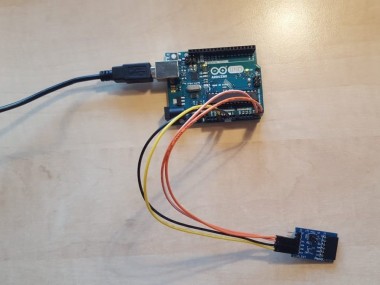

This project shows how to use Pmod CMPS2 and Arduino Uno to measure and display the Earth's magnetic field components. The 3 components of the magnetic field, module, & angle are displayed in the serial monitor.

Project info

Difficulty: Easy

Platforms: Arduino, Digilent

Estimated time: 1 hour

License: GNU General Public License, version 3 or later (GPL3+)

Items used in this project

Hardware components

	Pmod CMPS2	x 1
	Arduino Uno - R3	x 1

Software apps and online services

Arduino

Story

This is a demo project for the Digilent Pmod CMPS2. The X, Y and Z components of Earth's magnetic field are measured, converted in mG (milliGauss) and displayed on the Serial monitor. The module of the components and the angle of the device is also calculated and displayed (calculations are made according to the Pmod's datasheet). To control the Pmod, an Arduino UNO is used, which also sends the data to the computer. To communicate with the peripheral device, I2C communication protocol is used, the device address is 0x30. Data is received as two 8-bit parts of a 16-bit number in two's complement form.

Schematics, diagrams and documents

Pmod CMPS2 and Arduino Uno Fritzing Image

Code

Pmod CMPS2 and Arduino Uno Code

/************************************************************************

  Test of the Pmod

*************************************************************************

  Description: Pmod_CMPS2
  Calculates the heading of the device form the X and Y components of the magnetic field

  Wiring
  Module<----------> Arduino
  VCC     to        3V3
  GND     to        GND
  SCL     to        A5 (SCL)
  SDA     to        A4 (SDA)

*************************************************************************/

// The earth's magnetic field varies according to its location.
// Add or subtract a constant to get the right value
// of the magnetic field using the following site
// http://www.ngdc.noaa.gov/geomag-web/#declination

#define DECLINATION 6.11 // declination (in degrees) in Saint George (Romania).

/************************************************************************/

#include <Wire.h> //including library for I2C communication

unsigned char CMPS2_address = 0x30; //I2C address of the device

//store highest, middle and lowest values, x component and y component
float Max[2], Mid[2], Min[2], X, Y;

void setup() {
  Serial.begin(9600); //serial initialization
  pinMode(13, OUTPUT);
  delay(10);
  CMPS2_init(); //initialize the compass
}

void loop() {
  delay(500);

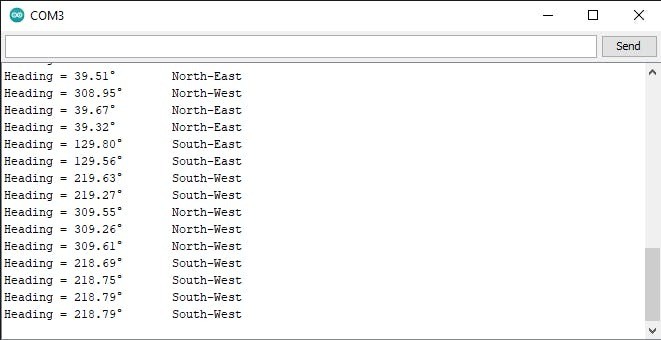

  //retrieving and displaying the heading of the compass
  float measured_angle = CMPS2_getHeading();
  Serial.print("Heading = ");
  Serial.print(measured_angle);
  Serial.print("°");
  Serial.print('\t');

  CMPS2_decodeHeading(measured_angle);  //get direction
}

void CMPS2_decodeHeading(float measured_angle) {
  //decoding heading angle according to datasheet
  if (measured_angle > 337.25 | measured_angle < 22.5) {
    Serial.println("North");
    digitalWrite(13, HIGH);
  }
  else {
    digitalWrite(13, LOW);
    if (measured_angle > 292.5) {
      Serial.println("North-West");
    }
    else if (measured_angle > 247.5) {
      Serial.println("West");
    }
    else if (measured_angle > 202.5) {
      Serial.println("South-West");
    }
    else if (measured_angle > 157.5) {
      Serial.println("South");
    }
    else if (measured_angle > 112.5) {
      Serial.println("South-East");
    }
    else if (measured_angle > 67.5) {
      Serial.println("East");
    }
    else {
      Serial.println("North-East");
    }
  }
}

float CMPS2_getHeading(void) {
  float components[2];
  CMPS2_set(false);   //set the polarity to normal
  CMPS2_read_XYZ();  //read X, Y, Z components of the magnetic field
  components[0] = X;  //save current results
  components[1] = Y;
  CMPS2_set(true);   //set the polarity to normal
  CMPS2_read_XYZ();  //read X, Y, Z components of the magnetic field

  //eliminate offset from all components
  components[0] = (components[0] - X) / 2.0;
  components[1] = (components[1] - Y) / 2.0;

  //variables for storing partial results
  float temp0 = 0;
  float temp1 = 0;
  //and for storing the final result
  float deg = 0;

  //calculate heading from components of the magnetic field
  //the formula is different in each quadrant
  if (components[0] < Mid[0])
  {
    if (components[1] > Mid[1])
    {
      //Quadrant 1
      temp0 = components[1] - Mid[1];
      temp1 = Mid[0] - components[0];
      deg = 90 - atan(temp0 / temp1) * (180 / 3.14159);
    }
    else
    {
      //Quadrant 2
      temp0 = Mid[1] - components[1];
      temp1 = Mid[0] - components[0];
      deg = 90 + atan(temp0 / temp1) * (180 / 3.14159);
    }
  }
  else {
    if (components[1] < Mid[1])
    {
      //Quadrant 3
      temp0 = Mid[1] - components[1];
      temp1 = components[0] - Mid[0];
      deg = 270 - atan(temp0 / temp1) * (180 / 3.14159);
    }
    else
    {
      //Quadrant 4
      temp0 = components[1] - Mid[1];
      temp1 = components[0] - Mid[0];
      deg = 270 + atan(temp0 / temp1) * (180 / 3.14159);
    }
  }

  //correct heading
  deg += DECLINATION;
  if (DECLINATION > 0)
  {
    if (deg > 360) {
      deg -= 360;
    }
  }
  else
  {
    if (deg < 0) {
      deg += 360;
    }
  }

  return deg;
}

//reads measurements in mG
void CMPS2_read_XYZ(void) {
  //command internal control register 0 bit 0 (measure)
  Wire.beginTransmission(CMPS2_address);
  Wire.write(0x07);
  Wire.write(0x01);
  Wire.endTransmission();
  delay(8);

  //wait for measurement to be completed
  bool flag = false;
  while (!flag) {
    //jump to status register
    Wire.beginTransmission(CMPS2_address);
    Wire.write(0x06);
    Wire.endTransmission();

    //read its value
    Wire.requestFrom(CMPS2_address, (uint8_t)1);
    int temporal = 0;
    if (Wire.available()) {
      temporal = Wire.read();
    }

    //if the last bit is 1, data is ready
    temporal &= 1;
    if (temporal != 0) {
      flag = true;
    }
  }

  //move address pointer to first address
  Wire.beginTransmission(CMPS2_address);
  Wire.write(0x00);
  Wire.endTransmission();

  //save data
  Wire.requestFrom(CMPS2_address, (uint8_t)6);
  byte tmp[6] = {0, 0, 0, 0, 0, 0}; //array for raw data
  if (Wire.available()) {
    for (int i = 0; i < 6; i++) {
      tmp[i] = Wire.read(); //save it
    }
  }

  //initialize array for data
  float measured_data[2];

  //reconstruct raw data
  measured_data[0] = 1.0 * (int)(tmp[1] << 8 | tmp[0]); //x
  measured_data[1] = 1.0 * (int)(tmp[3] << 8 | tmp[2]); //y

  //convert raw data to mG
  for (int i = 0; i < 2; i++) {
    measured_data[i] = 0.48828125 * (float)measured_data[i];
  }

  X = measured_data[0];
  Y = measured_data[1];

  //correct minimum, mid and maximum values
  if (measured_data[0] > Max[0]) { //x max
    Max[0] = measured_data[0];
  }
  if (measured_data[0] < Min[0]) { //x min
    Min[0] = measured_data[0];
  }
  if (measured_data[1] > Max[1]) { //y max
    Max[1] = measured_data[1];
  }
  if (measured_data[1] < Min[1]) { //y min
    Min[1] = measured_data[1];
  }
  for (int i = 0; i < 2; i++) { //mid
    Mid[i] = (Max[i] + Min[i]) / 2;
  }

  return;
}

//initialize the compass
void CMPS2_init(void) {
  Wire.begin(); // initialization of I2C bus

  //command internal control register 0 for set operation
  Wire.beginTransmission(CMPS2_address);
  Wire.write(0x07);
  Wire.write(0x20);
  Wire.endTransmission();
  delay(10);

  //command internal control register 1 to 16 bit resolution, 8ms measurement time
  Wire.beginTransmission(CMPS2_address);
  Wire.write(0x08);
  Wire.write(0x00);
  Wire.endTransmission();
  delay(10);

  //initialize minimum, mid and maximum values
  for (int i = 0; i < 2; i++) {
    Max[i] = -32768;  //smallest int on 16 bits
    Min[i] = 32767;  //largest int on 16 bits
    Mid[i] = 0;
  }
}

//sets/resets the sensor, changing the magnetic polarity of the sensing element
void CMPS2_set(bool reset) {
  //command internal control register 0 bit 7 (capacitor recharge)
  Wire.beginTransmission(CMPS2_address);
  Wire.write(0x07);
  Wire.write(0x80);
  Wire.endTransmission();
  delay(50);

  if (reset) {
    //command internal control register 0 bit 6 (reset)
    Wire.beginTransmission(CMPS2_address);
    Wire.write(0x07);
    Wire.write(0x40);
    Wire.endTransmission();
    delay(10);
  }
  else {
    //command internal control register 0 bit 5 (set)
    Wire.beginTransmission(CMPS2_address);
    Wire.write(0x07);
    Wire.write(0x20);
    Wire.endTransmission();
    delay(10);
  }
  return;
}
