Making Subnautica Scarier With Real-life Effects

Made by donutsorelse / Games & Gaming / Lights / Sensors / Wearables / IoT

About the project

By monitoring the health, oxygen, and depth in Subnautica, let's make the game scarier and more immersive with real life effects!

Project info

Difficulty: Moderate

Platforms: Adafruit, Python, Espressif

Estimated time: 1 day

License: GNU Lesser General Public License version 3 or later (LGPL3+)

Items used in this project

Hardware components

	Adafruit NeoPixel Ring: WS2812 5050 RGB LED	x 1
	Espressif ESP32S	x 1

Software apps and online services

Arduino IDE

Hand tools and fabrication machines

visual studio code For python code

x 1

Story

Inspiration

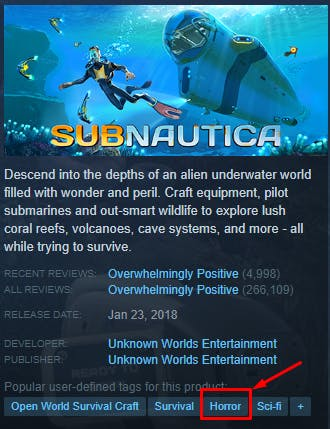

Subnautica is a blast, but it was around the time that I started scanning and grappling onto the murderous leviathans like Indiana Jones that I realized I was just too desensitized to fully appreciate the thalassophobia feelings the game is supposed to invoke. It is classified as a horror game, after all! With Subnautica 2 set to release in the coming year, this needed rectified immediately. What to do...

What We're Building

The goal is to increase the immersion and the fear factors. That means we need to have a way of monitoring certain aspects of the game so that we can trigger fun stuff.

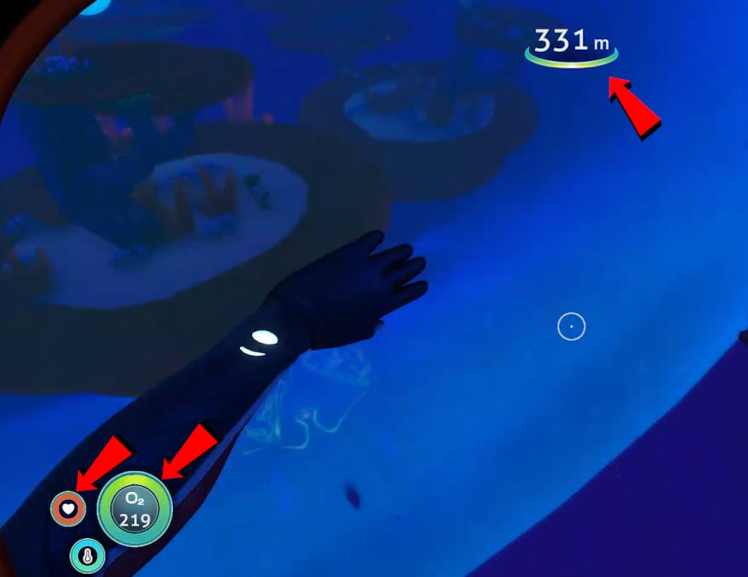

To do so we're going to put together a python script that monitors certain aspects of the game. For this, we're monitoring the health, oxygen levels, and depth. Depth will just be to increase immersion. I tend to avoid spoilers so I can fully enjoy the given game, but I did look into what the maximum depth vehicles can go to for exactly this purpose and set the deepest depths I expect to be red. On the way down, we'll flow from one color to the next such that we can visualize how deep we are with color in the room!

Next up is oxygen. If we're going to induce panic, there's nothing quite like the Sonic Music that plays when you're near drowning from <redacted> years ago. It gets us right in the childhood and gets the adrenaline pumping like nothing else. If the oxygen percentage drops below 15% we play the music. If the oxygen levels start going up, we stop the music.

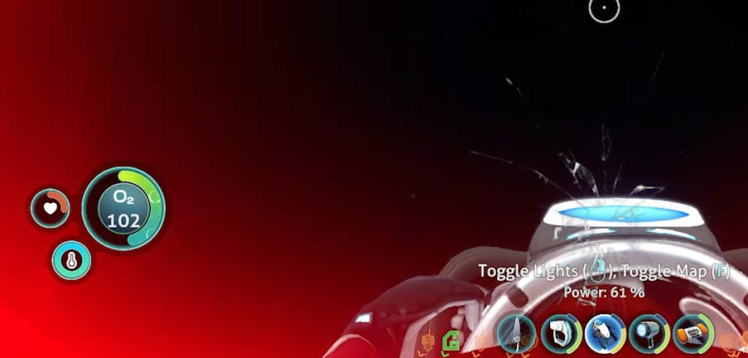

Last is health. Subnautica has a nice display when you get hit, mixing a red backdrop with a cracked screen, but adding a real life element really makes it hit home. As we'll get to momentarily, we're using an ESP32 for the led's and the buzzers. When we get hit, we pass a message to the ESP32 and make it buzz us so we feel it in real life.

Codey Time

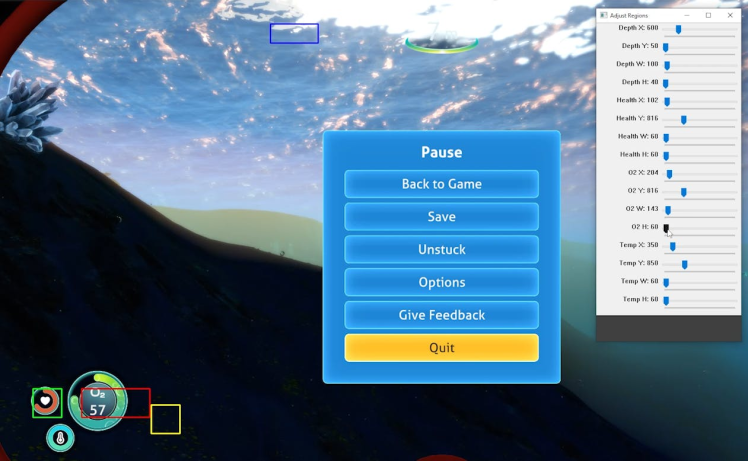

The majority of the code is in a python script that monitors the display with pytesseract. I also included a calibration program, which was super nice. Last time I dabbled in this type of thing, it took me way too long to hone in on the part of the screen I wanted to read data from. This time, the calibration program makes it a quick visual process. Much less painful.

The full python program for adding immersion does a lot. For oxygen and health I ended up doing different processing methods to visually interpret the data. It was a pain but eventually the result was pretty good. The depth is just text and that worked pretty well very quickly.

For the 3 effects described, the only one that plays on the computer-run side of things is the sonic underwater music. When we drop below 15% oxygen, it plays until we start increasing in oxygen or, um - the audio finishes playing. For this I moved to pygame and it resolved some really annoying issues I had with other approaches.

The code is attached so it should just work in full, but here are the installs you'll need for it:

pip install opencv-python pyautogui numpy pygame pytesseract

Physical Additions

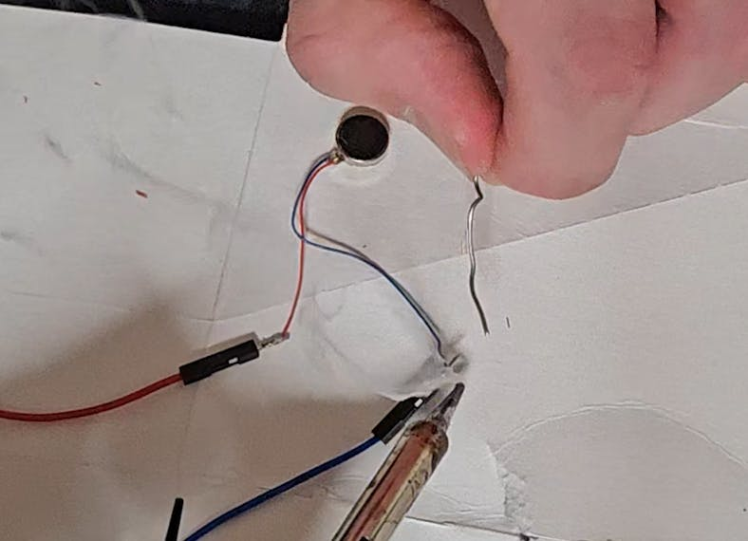

The last part of the process is the ESP32 side of things. The python program still handles the bulk of the processing, but we continuously listen for commands on the arduino side as well. Depth is passed ongoingly, anytime we get good values (which should be the vast majority of the time). A "buzz" is only passed when we take damage, and the arduino orchestrates playing a buzz through the coin buzzers.

To wire to the ESP32 is pretty straightforward. Here is a simple pinout:

D5 --> LED data

VIN --> LED power

GND --> LED GND

D14 --> buzzer red

D2 --> other buzzer's red

GND --> both buzzer's blue

End Result

Now we have a fully functional way to give us anxiety problems when we ignore our oxygen levels for too long, cool lighting to represent the depths we reach, and a way to buzz ourselves when we get too close to a bitey-fish. Now that the code works, it does add a lot of fun to the game and sets the stage for when Subnautica 2 arrives. I look forward to hear any ideas and iterations other people have and make! Hope you enjoyed and have a good one.

Code

arduino_subnautica

This is to be run on an esp32 (or tweak it as needed to run on your arduino of choice). It handles listening for depth information as well as when we get damaged to update led display and buzz us when relevant.

#include <WiFi.h> #include <WiFiUdp.h> #include <FastLED.h> // Wi-Fi credentials const char* WIFI_SSID = "your wifi here"; const char* WIFI_PASSWORD = "your wifi pw here"; const int UDP_PORT = 12345; WiFiUDP udp; // for your buzzers const int MOTOR_PIN1 = 14; const int MOTOR_PIN2 = 2; #define LED_PIN 5 #define NUM_LEDS 120 CRGB leds[NUM_LEDS]; // Short motor activation unsigned long BUZZ_TIME_MS = 60; bool buzzing = false; unsigned long buzzStartTime = 0; // We define multiple color stops for different depths // Each entry is { depth in meters, CRGB color }. struct DepthColor { int depth; CRGB color; }; DepthColor depthStops[] = { { 0, CRGB::Green }, // 0 m { 300, CRGB::Teal }, // 300 m { 700, CRGB::Blue }, // 700 m {1200, CRGB::Purple }, // 1200 m {1700, CRGB::Red } // 1700 m }; const int NUM_STOPS = sizeof(depthStops)/sizeof(depthStops[0]); void setup() { Serial.begin(115200); Serial.println("Subnautica Depth + Multi-Color Gradient + Buzz (FastLED)."); pinMode(MOTOR_PIN1, OUTPUT); pinMode(MOTOR_PIN2, OUTPUT); digitalWrite(MOTOR_PIN1, LOW); digitalWrite(MOTOR_PIN2, LOW); // Setup FastLED FastLED.addLeds<WS2812B, LED_PIN, GRB>(leds, NUM_LEDS); FastLED.setBrightness(255); fill_solid(leds, NUM_LEDS, CRGB::Black); FastLED.show(); // Connect Wi-Fi WiFi.mode(WIFI_STA); WiFi.begin(WIFI_SSID, WIFI_PASSWORD); while (WiFi.status() != WL_CONNECTED) { delay(500); Serial.print("."); } Serial.println("\nWi-Fi connected."); Serial.print("IP: "); Serial.println(WiFi.localIP()); // UDP udp.begin(UDP_PORT); Serial.print("Listening on port "); Serial.println(UDP_PORT); } // Helper to blend between two CRGB colors CRGB blendCRGB(const CRGB &c1, const CRGB &c2, float fraction) { // clamp fraction to [0..1] if (fraction < 0) fraction = 0; if (fraction > 1) fraction = 1; uint8_t r = c1.r + (uint8_t)((c2.r - c1.r) * fraction); uint8_t g = c1.g + (uint8_t)((c2.g - c1.g) * fraction); uint8_t b = c1.b + (uint8_t)((c2.b - c1.b) * fraction); return CRGB(r, g, b); } // We find which two stops the depth is between, then interpolate CRGB getColorForDepth(int depthVal) { // If below first stop, clamp to first color if (depthVal <= depthStops[0].depth) { return depthStops[0].color; } // If above last stop, clamp to last color if (depthVal >= depthStops[NUM_STOPS - 1].depth) { return depthStops[NUM_STOPS - 1].color; } // Otherwise, find the segment of the two stops we fall between for (int i = 0; i < NUM_STOPS - 1; i++) { int d1 = depthStops[i].depth; int d2 = depthStops[i+1].depth; if (depthVal >= d1 && depthVal <= d2) { // fraction from d1..d2 float fraction = (float)(depthVal - d1) / (float)(d2 - d1); // blend between color[i]..color[i+1] return blendCRGB(depthStops[i].color, depthStops[i+1].color, fraction); } } // Fallback (shouldn’t happen) return depthStops[NUM_STOPS - 1].color; } // Set entire strip to the color for a given depth void setStripColorForDepth(int depthVal) { // get interpolated color CRGB c = getColorForDepth(depthVal); // Serial.print("Color for depth: "); // Serial.println(c); for (int i = 0; i < NUM_LEDS; i++) { leds[i] = c; } FastLED.show(); } void loop() { // Check incoming UDP int packetSize = udp.parsePacket(); if (packetSize > 0) { static char incomingPacket[128]; int len = udp.read(incomingPacket, 127); if (len > 0) { incomingPacket[len] = 0; } String data = String(incomingPacket); data.trim(); Serial.print("Received: "); Serial.println(data); if (data.startsWith("BUZZ")) { Serial.println("Buzz => motors on"); buzzing = true; buzzStartTime = millis(); digitalWrite(MOTOR_PIN1, HIGH); digitalWrite(MOTOR_PIN2, HIGH); } else if (data.startsWith("DEPTH:")) { String valStr = data.substring(6); valStr.trim(); int depthVal = valStr.toInt(); Serial.print("Depth: "); Serial.println(depthVal); setStripColorForDepth(depthVal); } } // turn off motors if time’s up if (buzzing) { if (millis() - buzzStartTime >= BUZZ_TIME_MS) { buzzing = false; digitalWrite(MOTOR_PIN1, LOW); digitalWrite(MOTOR_PIN2, LOW); Serial.println("Motors off"); } } delay(5); }

immersive_subnautica.py

This is the main program that captures your data as you play Subnautica and orchestrates having immersive effects happen.

import cv2 import pytesseract import pyautogui import socket import time import re import numpy as np import os import pygame ############################################################################### # Configuration ############################################################################### # Turn logs on/off DEBUG_LOG = False # set True to see debug-level logs INFO_LOG = True # set True to see info-level logs # UDP broadcast for the ESP32 UDP_BROADCAST_IP = "255.255.255.255" UDP_PORT = 12345 # Health bounding box and color thresholds HEALTH_REGION = (96, 808, 60, 60) HEALTH_LOWER_COLOR = np.array([0, 100, 100]) HEALTH_UPPER_COLOR = np.array([10, 255, 255]) HEALTH_RAW_MIN = 4.7 HEALTH_RAW_MAX = 28.88 # O2 bounding boxes O2_REGION = (176, 779, 125, 125) O2_LABEL_REGION = (220, 810, 37, 26) O2_MASK_FILE = "oxygen_icon_mask.png" O2_RAW_MIN = 5.05 O2_RAW_MAX = 97.3 LOW_O2_THRESHOLD = 15.0 # MP3 path for the Sonic alarm (provide your own file name here). LOW_O2_AUDIO = "sonic_underwater.mp3" # Depth bounding box DEPTH_REGION = (896, 37, 125, 59) DEPTH_CONFIG = r'--psm 7 -c tessedit_char_whitelist=0123456789m' VALID_DEPTH_RANGE = (0, 3000) ############################################################################### # Logging Helpers ############################################################################### def log_debug(message): if DEBUG_LOG: print("[DEBUG]", message) def log_info(message): if INFO_LOG: print("[INFO]", message) ############################################################################### # Pygame Audio Helpers ############################################################################### def init_audio_system(): """ Initialize pygame.mixer so we can load and play MP3 files. """ pygame.mixer.init() log_debug("Pygame mixer initialized.") def load_sound(file_path): """ Load a sound (MP3 or WAV) into pygame. Returns a pygame.mixer.Sound object or None if load fails. """ try: sound = pygame.mixer.Sound(file_path) log_debug(f"Audio file loaded: {file_path}") return sound except pygame.error as e: print(f"Failed to load audio file '{file_path}': {e}") return None def play_alarm(sound): """ Start playing the alarm in a loop if it's not already playing. """ if not pygame.mixer.get_busy(): log_info("O2 < 15% => Starting alarm.") sound.play(loops=-1) else: log_debug("Alarm already playing, not restarting.") def stop_alarm(sound): """ Stop the alarm if it's currently playing. """ if pygame.mixer.get_busy(): log_info("O2 recovered or icon gone => Stopping alarm.") sound.stop() else: log_debug("No alarm playing to stop.") ############################################################################### # Image Capture and OCR ############################################################################### def capture_screenshot(): screenshot = pyautogui.screenshot() screenshot.save("temp_screenshot.png") return cv2.imread("temp_screenshot.png") def safe_crop(img, region): if img is None: return None x, y, w, h = map(int, region) H, W = img.shape[:2] if x < 0: x = 0 if y < 0: y = 0 if x + w > W: w = max(0, W - x) if y + h > H: h = max(0, H - y) if w <= 0 or h <= 0: return None return img[y:y+h, x:x+w] def read_text(roi, config=None): """ Convert the region to grayscale, enlarge, threshold, then run Tesseract for text. Returns the text string. """ if roi is None: return "" gray = cv2.cvtColor(roi, cv2.COLOR_BGR2GRAY) scale_factor = 3 bigger = cv2.resize(gray, (gray.shape[1]*scale_factor, gray.shape[0]*scale_factor), interpolation=cv2.INTER_CUBIC) _, thresh = cv2.threshold(bigger, 0, 255, cv2.THRESH_BINARY+cv2.THRESH_OTSU) thresh = cv2.bitwise_not(thresh) kernel = np.ones((2,2), np.uint8) cleaned = cv2.morphologyEx(thresh, cv2.MORPH_OPEN, kernel) text = pytesseract.image_to_string(cleaned, config=config).strip() return text ############################################################################### # Health / O2 / Depth Measurement ############################################################################### def measure_health_fill(roi): """ Returns scaled health % from 0..100, based on color threshold in HSV. """ hsv = cv2.cvtColor(roi, cv2.COLOR_BGR2HSV) mask = cv2.inRange(hsv, HEALTH_LOWER_COLOR, HEALTH_UPPER_COLOR) total_px = roi.size // 3 fill_px = np.count_nonzero(mask) raw_pct = (fill_px / total_px) * 100.0 if raw_pct <= HEALTH_RAW_MIN: return 0.0 elif raw_pct >= HEALTH_RAW_MAX: return 100.0 else: return ((raw_pct - HEALTH_RAW_MIN) / (HEALTH_RAW_MAX - HEALTH_RAW_MIN)) * 100.0 def otsu_threshold(gray): _, th = cv2.threshold(gray, 0, 255, cv2.THRESH_BINARY+cv2.THRESH_OTSU) return th def measure_o2_otsu_with_mask(roi, ring_mask): """ Convert ROI to grayscale, Otsu threshold, then mask with ring_mask to isolate the ring's fill. """ gray = cv2.cvtColor(roi, cv2.COLOR_BGR2GRAY) th = otsu_threshold(gray) H_roi, W_roi = roi.shape[:2] if ring_mask is None: return 0.0, th, None H_mask, W_mask = ring_mask.shape[:2] if (W_mask != W_roi) or (H_mask != H_roi): ring_mask_resized = cv2.resize(ring_mask, (W_roi, H_roi), interpolation=cv2.INTER_NEAREST) else: ring_mask_resized = ring_mask masked = cv2.bitwise_and(th, th, mask=ring_mask_resized) ring_pixels = np.count_nonzero(ring_mask_resized) if ring_pixels == 0: return 0.0, th, masked white_in_ring = np.count_nonzero(masked) raw_pct = (white_in_ring / ring_pixels) * 100.0 if raw_pct <= O2_RAW_MIN: scaled = 0.0 elif raw_pct >= O2_RAW_MAX: scaled = 100.0 else: scaled = ((raw_pct - O2_RAW_MIN) / (O2_RAW_MAX - O2_RAW_MIN)) * 100.0 return scaled, th, masked def read_depth(roi): text = read_text(roi, config=DEPTH_CONFIG) match = re.search(r'(\d+)m', text) if match: return int(match.group(1)) match2 = re.search(r'\d+', text) if match2: return int(match2.group(0)) return None ############################################################################### # Main ############################################################################### def main(): log_debug("Starting main function.") # Setup network sock = socket.socket(socket.AF_INET, socket.SOCK_DGRAM, socket.IPPROTO_UDP) sock.setsockopt(socket.SOL_SOCKET, socket.SO_BROADCAST, 1) # Init pygame audio pygame.mixer.init() log_debug("pygame.mixer initialized.") # Load ring mask ring_mask = cv2.imread(O2_MASK_FILE, cv2.IMREAD_GRAYSCALE) if ring_mask is None: print(f"Failed to load ring mask: {O2_MASK_FILE}") return # Load alarm sound try: alarm_sound = pygame.mixer.Sound(LOW_O2_AUDIO) log_debug(f"Loaded alarm sound: {LOW_O2_AUDIO}") except pygame.error as e: print(f"Could not load alarm sound: {e}") return prev_health = None o2_alarm_playing = False while True: img = capture_screenshot() if img is None: log_debug("No screenshot captured, sleeping.") time.sleep(1) continue # --- Health --- health_roi = safe_crop(img, HEALTH_REGION) if health_roi is not None: health_val = measure_health_fill(health_roi) log_info(f"Health: {health_val:.1f}%") if prev_health is not None and health_val > 0 and health_val < prev_health: log_info("Health decreased => broadcast BUZZ") sock.sendto(b"BUZZ\n", (UDP_BROADCAST_IP, UDP_PORT)) prev_health = health_val else: log_debug("Health ROI is None.") # --- O2 --- label_roi = safe_crop(img, O2_LABEL_REGION) o2_icon_text = "" if label_roi is not None: o2_icon_text = read_text(label_roi).upper() log_info(f"O2 icon text => '{o2_icon_text}'") # We'll consider multiple potential OCR outputs that represent O2 is_o2 = any(sub in o2_icon_text for sub in ["O2","O.","OS","OS."]) if is_o2: o2_roi = safe_crop(img, O2_REGION) if o2_roi is not None: o2_fill, _, _ = measure_o2_otsu_with_mask(o2_roi, ring_mask) log_info(f"O2 fill: {o2_fill:.1f}%") if o2_fill < LOW_O2_THRESHOLD: if not o2_alarm_playing: log_info("O2 < 15 => starting alarm with pygame") alarm_sound.play(loops=-1) o2_alarm_playing = True else: if o2_alarm_playing: log_info("O2 recovered => stopping alarm") alarm_sound.stop() o2_alarm_playing = False else: log_debug("O2 ROI is None.") else: log_debug("Not O2 => skip O2 fill.") # If not recognized as O2, also stop if playing if o2_alarm_playing: log_info("No O2 circle => stopping alarm") alarm_sound.stop() o2_alarm_playing = False # --- Depth --- depth_roi = safe_crop(img, DEPTH_REGION) if depth_roi is not None: depth_val = read_depth(depth_roi) if depth_val is not None and VALID_DEPTH_RANGE[0] <= depth_val <= VALID_DEPTH_RANGE[1]: log_debug(f"Depth: {depth_val}m") msg = f"DEPTH:{depth_val}\n".encode('utf-8') sock.sendto(msg, (UDP_BROADCAST_IP, UDP_PORT)) else: log_debug(f"Depth invalid: {depth_val}") else: log_debug("Depth ROI is None.") # Check if user pressed 'q' key = cv2.waitKey(1000) & 0xFF if key == ord('q'): log_debug("'q' pressed => break loop") break # On exit if o2_alarm_playing: log_info("Stopping alarm on exit.") alarm_sound.stop() cv2.destroyAllWindows() sock.close() pygame.quit() # optional to close the mixer log_debug("main() ended, script done.") if __name__ == "__main__": main()

calibration.py

A simple calibration program that makes it easier to get the right location and sizing for the different parts we want to capture for the full immersive Subnautica program.

import cv2 import pyautogui import numpy as np SCALE = 0.1 MAX_RANGE_XY = 10800 MAX_RANGE_WH = 10800 # Initial bounding boxes, in actual pixels. Adjust if you already know approximate coords. depth_vals = [600, 50, 100, 40] # (x, y, width, height) health_vals = [50, 850, 60, 60] oxygen_vals = [200, 850, 60, 60] temperature_vals = [350, 850, 60, 60] # Window where we show the main screenshot preview MAIN_WINDOW = "Calibration Preview" cv2.namedWindow(MAIN_WINDOW, cv2.WINDOW_NORMAL) # Window for trackbar controls TRACKBAR_WINDOW = "Adjust Regions" cv2.namedWindow(TRACKBAR_WINDOW, cv2.WINDOW_NORMAL) def val_to_trackbar(pixel_value): """Convert an actual pixel value to trackbar units.""" return int(pixel_value / SCALE) def trackbar_to_val(trackbar_value): """Convert from trackbar units back to float pixel values.""" return trackbar_value * SCALE # trackbars for Depth region cv2.createTrackbar("Depth X", TRACKBAR_WINDOW, val_to_trackbar(depth_vals[0]), MAX_RANGE_XY, lambda x: None) cv2.createTrackbar("Depth Y", TRACKBAR_WINDOW, val_to_trackbar(depth_vals[1]), MAX_RANGE_XY, lambda x: None) cv2.createTrackbar("Depth W", TRACKBAR_WINDOW, val_to_trackbar(depth_vals[2]), MAX_RANGE_WH, lambda x: None) cv2.createTrackbar("Depth H", TRACKBAR_WINDOW, val_to_trackbar(depth_vals[3]), MAX_RANGE_WH, lambda x: None) # trackbars for Health region cv2.createTrackbar("Health X", TRACKBAR_WINDOW, val_to_trackbar(health_vals[0]), MAX_RANGE_XY, lambda x: None) cv2.createTrackbar("Health Y", TRACKBAR_WINDOW, val_to_trackbar(health_vals[1]), MAX_RANGE_XY, lambda x: None) cv2.createTrackbar("Health W", TRACKBAR_WINDOW, val_to_trackbar(health_vals[2]), MAX_RANGE_WH, lambda x: None) cv2.createTrackbar("Health H", TRACKBAR_WINDOW, val_to_trackbar(health_vals[3]), MAX_RANGE_WH, lambda x: None) # trackbars for Oxygen region cv2.createTrackbar("O2 X", TRACKBAR_WINDOW, val_to_trackbar(oxygen_vals[0]), MAX_RANGE_XY, lambda x: None) cv2.createTrackbar("O2 Y", TRACKBAR_WINDOW, val_to_trackbar(oxygen_vals[1]), MAX_RANGE_XY, lambda x: None) cv2.createTrackbar("O2 W", TRACKBAR_WINDOW, val_to_trackbar(oxygen_vals[2]), MAX_RANGE_WH, lambda x: None) cv2.createTrackbar("O2 H", TRACKBAR_WINDOW, val_to_trackbar(oxygen_vals[3]), MAX_RANGE_WH, lambda x: None) # trackbars for Temperature region cv2.createTrackbar("Temp X", TRACKBAR_WINDOW, val_to_trackbar(temperature_vals[0]), MAX_RANGE_XY, lambda x: None) cv2.createTrackbar("Temp Y", TRACKBAR_WINDOW, val_to_trackbar(temperature_vals[1]), MAX_RANGE_XY, lambda x: None) cv2.createTrackbar("Temp W", TRACKBAR_WINDOW, val_to_trackbar(temperature_vals[2]), MAX_RANGE_WH, lambda x: None) cv2.createTrackbar("Temp H", TRACKBAR_WINDOW, val_to_trackbar(temperature_vals[3]), MAX_RANGE_WH, lambda x: None) # Windows to display each roi cv2.namedWindow("Depth ROI", cv2.WINDOW_NORMAL) cv2.namedWindow("Health ROI", cv2.WINDOW_NORMAL) cv2.namedWindow("Oxygen ROI", cv2.WINDOW_NORMAL) cv2.namedWindow("Temperature ROI", cv2.WINDOW_NORMAL) def safe_crop(img, x, y, w, h): """Crop (x, y, w, h) safely from an image, avoiding out-of-bounds errors.""" h_img, w_img = img.shape[:2] x, y, w, h = map(int, [x, y, w, h]) if x < 0: x = 0 if y < 0: y = 0 if x + w > w_img: w = max(0, w_img - x) if y + h > h_img: h = max(0, h_img - y) if w <= 0 or h <= 0: return None return img[y:y+h, x:x+w] while True: # Capture current screen screenshot = pyautogui.screenshot() full_frame = cv2.cvtColor(np.array(screenshot), cv2.COLOR_RGB2BGR) # Read trackbar positions, convert to float pixel values dx = trackbar_to_val(cv2.getTrackbarPos("Depth X", TRACKBAR_WINDOW)) dy = trackbar_to_val(cv2.getTrackbarPos("Depth Y", TRACKBAR_WINDOW)) dw = trackbar_to_val(cv2.getTrackbarPos("Depth W", TRACKBAR_WINDOW)) dh = trackbar_to_val(cv2.getTrackbarPos("Depth H", TRACKBAR_WINDOW)) hx = trackbar_to_val(cv2.getTrackbarPos("Health X", TRACKBAR_WINDOW)) hy = trackbar_to_val(cv2.getTrackbarPos("Health Y", TRACKBAR_WINDOW)) hw = trackbar_to_val(cv2.getTrackbarPos("Health W", TRACKBAR_WINDOW)) hh = trackbar_to_val(cv2.getTrackbarPos("Health H", TRACKBAR_WINDOW)) ox = trackbar_to_val(cv2.getTrackbarPos("O2 X", TRACKBAR_WINDOW)) oy = trackbar_to_val(cv2.getTrackbarPos("O2 Y", TRACKBAR_WINDOW)) ow = trackbar_to_val(cv2.getTrackbarPos("O2 W", TRACKBAR_WINDOW)) oh = trackbar_to_val(cv2.getTrackbarPos("O2 H", TRACKBAR_WINDOW)) tx = trackbar_to_val(cv2.getTrackbarPos("Temp X", TRACKBAR_WINDOW)) ty = trackbar_to_val(cv2.getTrackbarPos("Temp Y", TRACKBAR_WINDOW)) tw = trackbar_to_val(cv2.getTrackbarPos("Temp W", TRACKBAR_WINDOW)) th = trackbar_to_val(cv2.getTrackbarPos("Temp H", TRACKBAR_WINDOW)) # Draw rectangles on the main frame to visualize each region cv2.rectangle(full_frame, (int(dx), int(dy)), (int(dx + dw), int(dy + dh)), (255, 0, 0), 2) cv2.rectangle(full_frame, (int(hx), int(hy)), (int(hx + hw), int(hy + hh)), (0, 255, 0), 2) cv2.rectangle(full_frame, (int(ox), int(oy)), (int(ox + ow), int(oy + oh)), (0, 0, 255), 2) cv2.rectangle(full_frame, (int(tx), int(ty)), (int(tx + tw), int(ty + th)), (0, 255, 255), 2) # Crop each ROI and show in separate windows depth_roi = safe_crop(full_frame, dx, dy, dw, dh) health_roi = safe_crop(full_frame, hx, hy, hw, hh) oxygen_roi = safe_crop(full_frame, ox, oy, ow, oh) temp_roi = safe_crop(full_frame, tx, ty, tw, th) cv2.imshow("Depth ROI", depth_roi if depth_roi is not None else np.zeros((10,10,3), dtype=np.uint8)) cv2.imshow("Health ROI", health_roi if health_roi is not None else np.zeros((10,10,3), dtype=np.uint8)) cv2.imshow("Oxygen ROI", oxygen_roi if oxygen_roi is not None else np.zeros((10,10,3), dtype=np.uint8)) cv2.imshow("Temperature ROI", temp_roi if temp_roi is not None else np.zeros((10,10,3), dtype=np.uint8)) # Show the main preview cv2.imshow(MAIN_WINDOW, full_frame) # Press 'q' to quit if cv2.waitKey(10) & 0xFF == ord('q'): break cv2.destroyAllWindows()
