Madness Machine

Made by 8BitsAndAByte / Art / Communication / Notifications

About the project

A small project with a single evil purpose, fooling people into checking their phones.

Project info

Difficulty: Easy

Platforms: Adafruit, Raspberry Pi

Estimated time: 1 day

License: Creative Commons Attribution-NonCommercial CC BY-NC version 4.0 or later (CC BY-NC 4+)

Items used in this project

Hardware components

	Raspberry Pi Zero W Basic Pack	x 1
	Toggle Switch, Metal Lever	x 1
	Vibrating Mini Motor Disc	x 1
	LiFePO4wered/Pi+	x 1
	Wires	x 1
	Plastic Enclosure, Project Box	x 1

Hand tools and fabrication machines

	Soldering iron (generic)	x 1
	Drill / Driver, Cordless	x 1

Story

Project Video

Box

We need something that can hold all our electronics, yet is simple to hide. A small electronics box from the local hardware store is the perfect candidate.

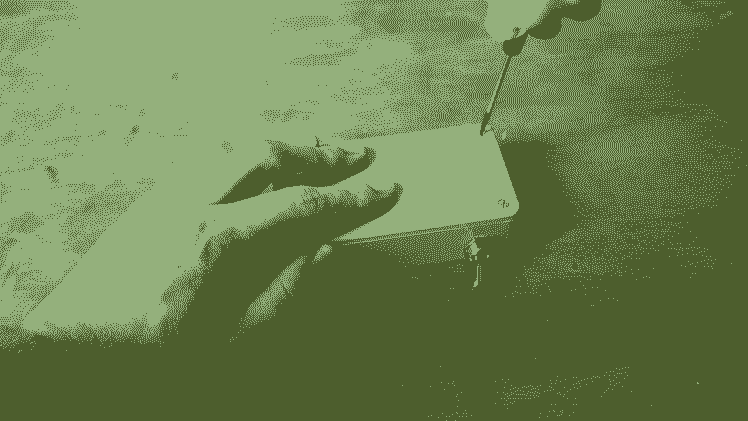

The only modifications needed are drilling a hole in the side, and removing one of the screw holders to make more space.

The changes needed really depend on your box, so as long as all the electronics fit, and you can attach the toggle switch(see next step) somehow, you're all good.

Hardware

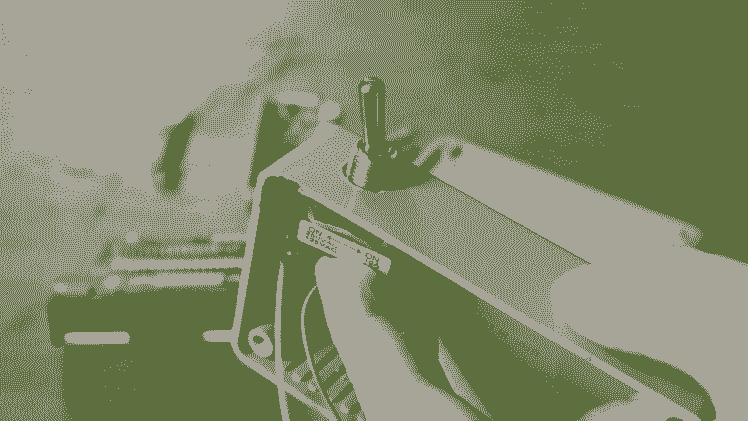

With our box complete we can start adding some hardware. We start with attaching the toggle switch to the box, using our freshly drilled hole.

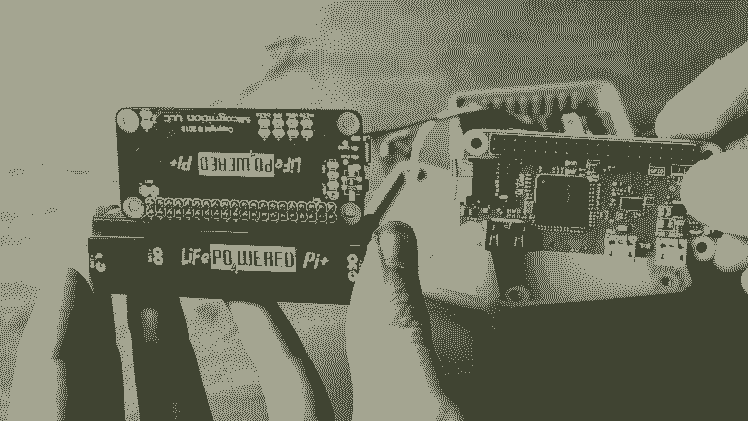

After doing some basic setup on the Raspberry Pi Zero and charging the LiFePO4wered/Pi+, we can assemble the two. They each have their specific role, the Pi Zero executes logic and the LiFePO4wered/Pi+ provides power.

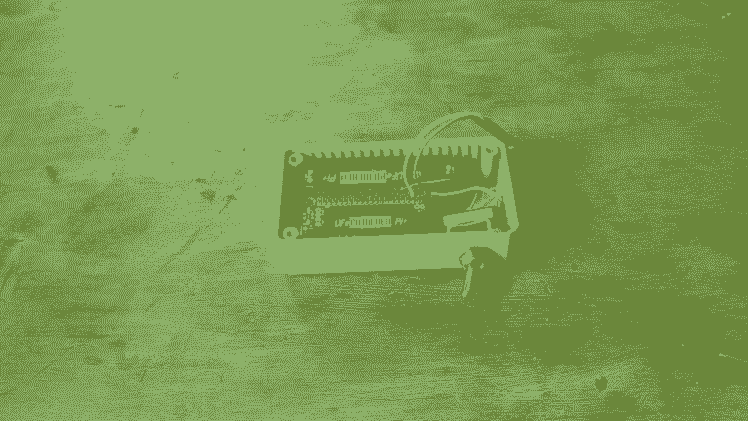

Last but not least, we solder the toggle switch and vibration disc connections. Normally it's best to use jump wires, but we don't have enough space, so instead we directly attach them to the Pi.

Code

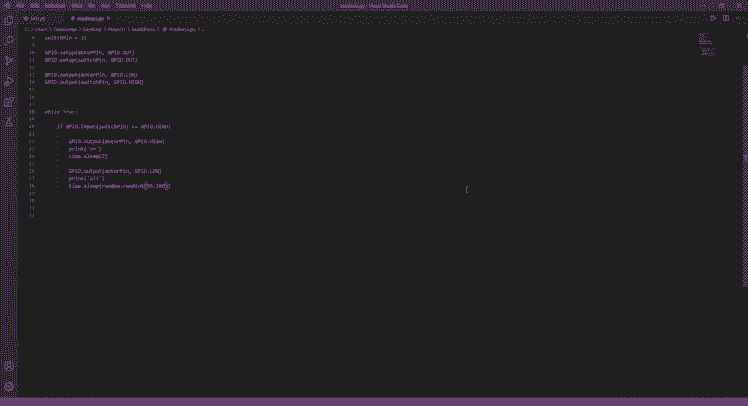

Now we move on to the code itself. It's written in python and included below. To give you a good idea of how it works, the main logic is as follows:

Check if the toggle switch is on

If so, turn on the vibration disc for two seconds, and wait a random amount of time (between 60 and 300 seconds)
If the switch is off, do nothing

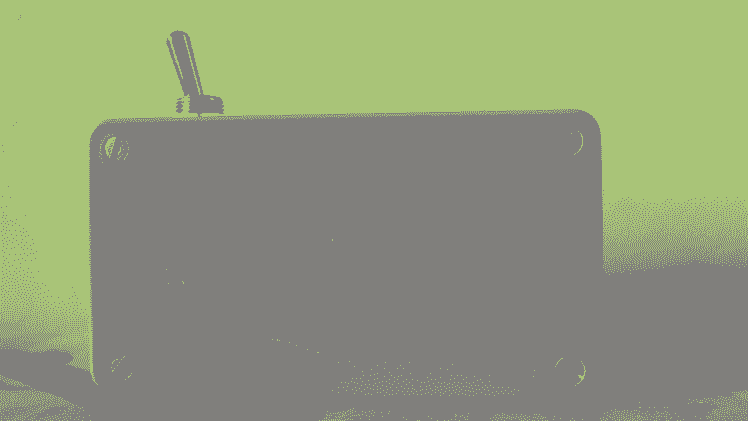

With the code written and working, we can complete the build by mounting the top.

Result

With our irritating invention complete it's time for the final, and best step, causing mayhem!

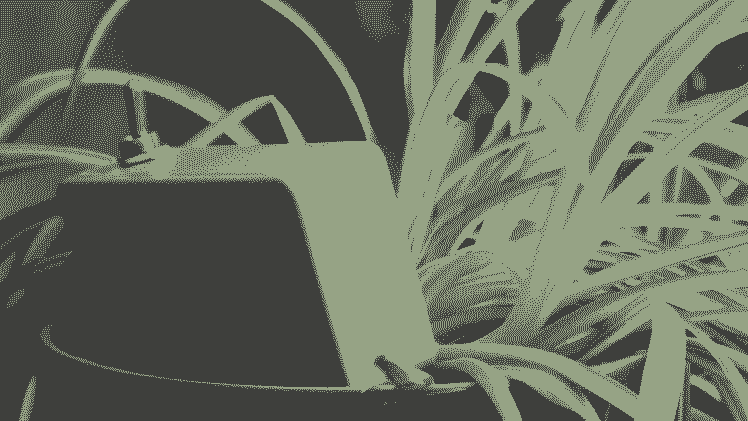

Just toggle on the switch, hide the devious device and enjoy the ensuing spectacle.

Schematics, diagrams and documents

Wiring

Code

madness.py

import RPi.GPIO as GPIO
import time
import random

GPIO.setmode(GPIO.BCM)

motorPin = 26
switchPin = 21

GPIO.setup(motorPin, GPIO.OUT)
GPIO.setup(switchPin, GPIO.OUT)

GPIO.output(motorPin, GPIO.LOW)
GPIO.output(switchPin, GPIO.HIGH)



while True:

    if GPIO.input(switchPin) == GPIO.HIGH:

        GPIO.output(motorPin, GPIO.HIGH)
        print('on')
        time.sleep(2)

        GPIO.output(motorPin, GPIO.LOW)
        print('off')
        time.sleep(random.randint(60,300))

Credits

8BitsAndAByte
