Ir Infrared Obstacle Avoidance Sensor With Atom Matrix Esp32
Made by Ron / Displays / Environmental Sensing / Robotics / Sensors
About the project
In this tutorial we are going to use a Infrared IR Obstacle Avoidance Sensor with ATOM Matrix ESP32. Watch the Video!
Project info
Difficulty: Easy
Platforms: Arduino, Visuino, M5Stack
Estimated time: 1 hour
License: GNU General Public License, version 3 or later (GPL3+)
Items used in this project
Hardware components
Story
If there is no obstacle detected a Green light will be visible and if the sensor detects an obstacle a Red light will be visible.
Step 1: What You Will Need1 / 4

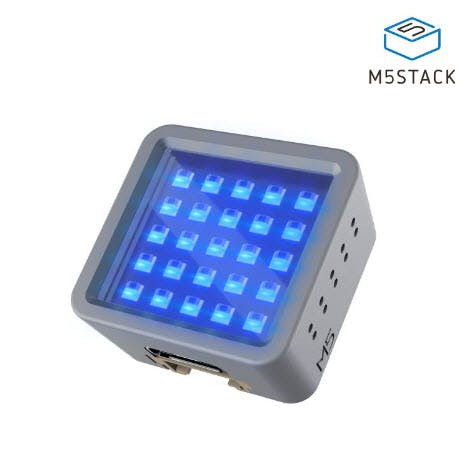

- ATOM Matrix ESP32 More info

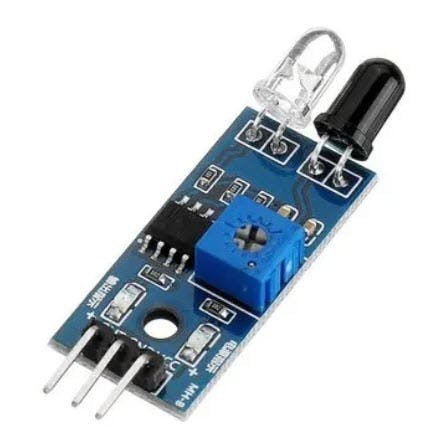

- IR Obstacle Avoidance Sensor
- Jumper wires
- Visuino program: Download Visuino

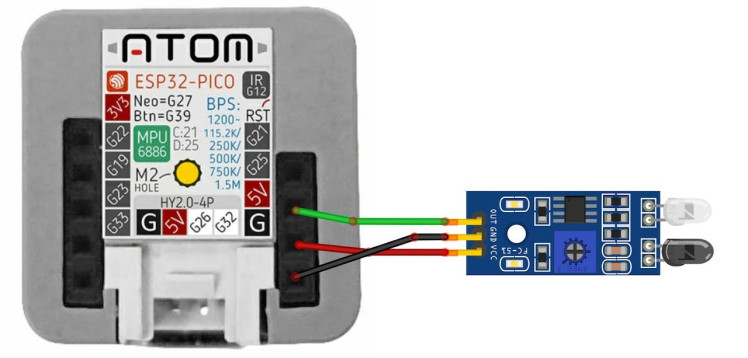

- Connect IR Obstacle Avoidance Sensor pin [VCC] to Atom Matrix pin [5V]
- Connect IR Obstacle Avoidance Sensor pin [GND] to Atom Matrix pin [GND]
- Connect IR Obstacle Avoidance Sensor pin [Out] to Atom Matrix pin [G25]
1 / 2

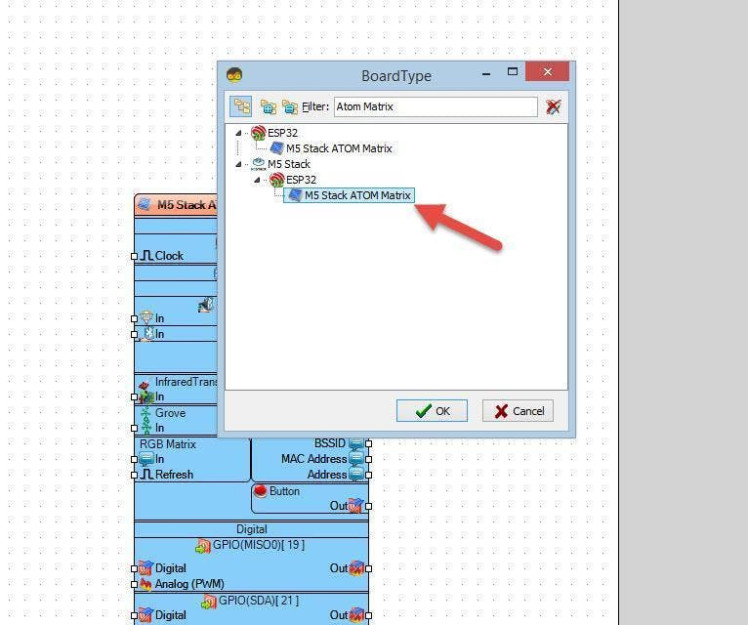

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Atom Matrix" as shown on Picture 2
Step 4: In Visuino Add Components1 / 2

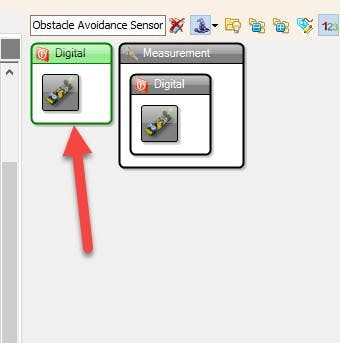

- Add "Obstacle Avoidance Sensor" component

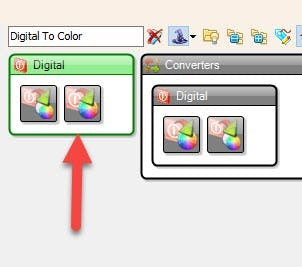

- Add "Digital To Color" component
With "Digital To Color" component we are going to set the Color based on the Digital input (True or False)
Step 5: In Visuino Set Components1 / 4

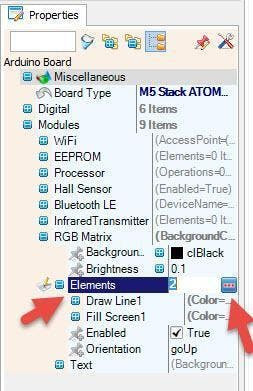

- Select "M5 Stack ATOM Matrix" board in the properties window expand "Modules">"RGB Matrix">"Elements" and click on the 3 dots button

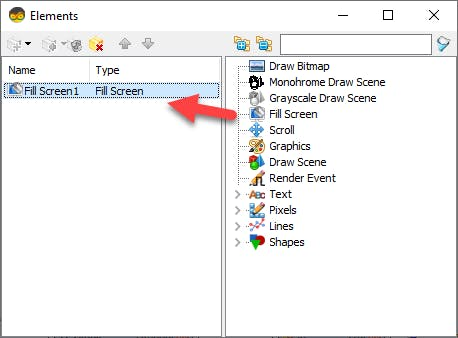

- In the "Elements" window drag "Fill Screen" to the left side and in the properties window select "Color" and click on the Pin Icon and select "Alpha Color SinkPin"
- Close the "Elements" window
- Select "DigitalToColor1" and in the properties window set "False Value" to clRed and "True Value" to clGreen
1 / 2

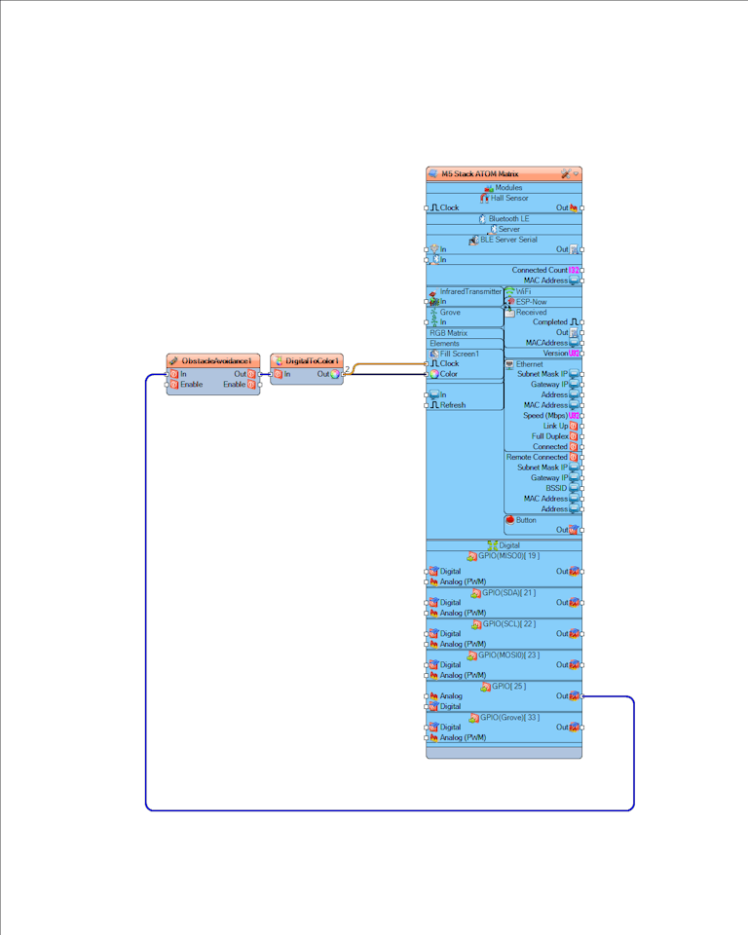

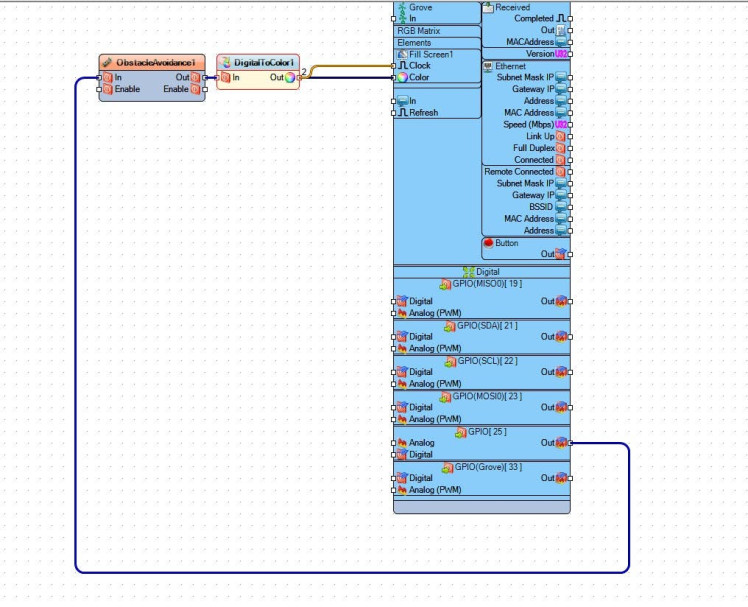

- Connect "M5 Stack ATOM Matrix" pin [GPIO 25] to "ObstacleAvoidance1" pin [In]
- Connect "ObstacleAvoidance1" pin [Out] to "DigitalToColor1" pin [In]
- Connect "DigitalToColor1" pin [Out] to "M5 Stack ATOM Matrix" > "Fill Screen1" pin [Color]
- Connect "DigitalToColor1" pin [Out] to "M5 Stack ATOM Matrix" > "Fill Screen1" pin [Clock]

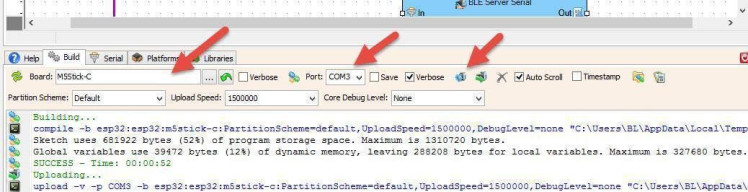

In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.
Step 8: PlayIf you power the ATOM Matrix module The Display will start to show Green color and you can put an obstacle in front of the Obstacle IR sensorthe the display will show a Red color.
Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this tutorial, you can download it and open it in Visuino: https://www.visuino.eu
