How To Use Max6675 Thermocouple Module & Tm1637 Led Display
Made by Ron / Displays / Environmental Sensing / Home Automation / Sensors / Weather
About the project
In this tutorial we are going to learn how to use MAX6675 Thermocouple Module & TM1637 LED to Display a temperature using probe sensor.
Project info
Difficulty: Easy
Estimated time: 1 hour
License: GNU General Public License, version 3 or later (GPL3+)
Items used in this project
Hardware components
Story
1 / 5

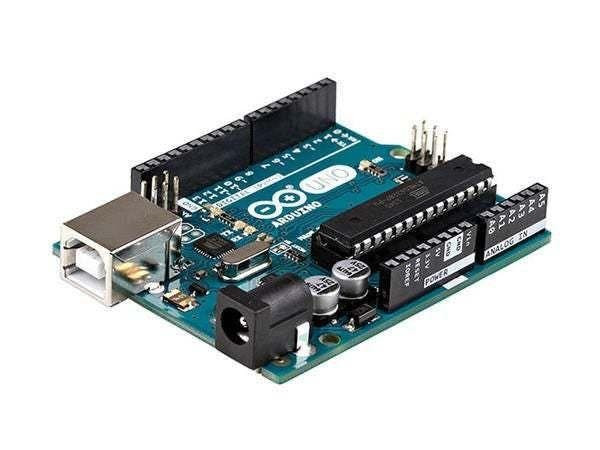

- Arduino UNO (or any other Arduino or ESP)

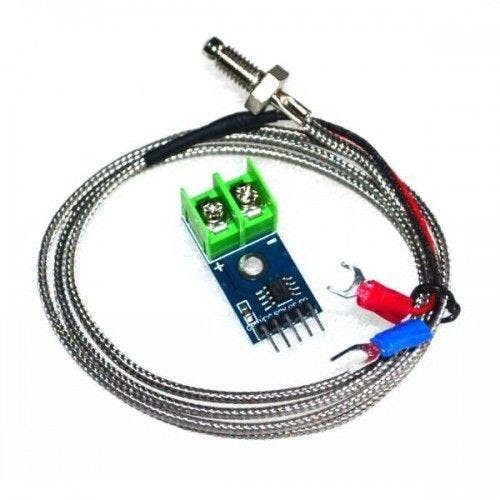

- Thermocouple Thermometer MAX6675 module with the sensor

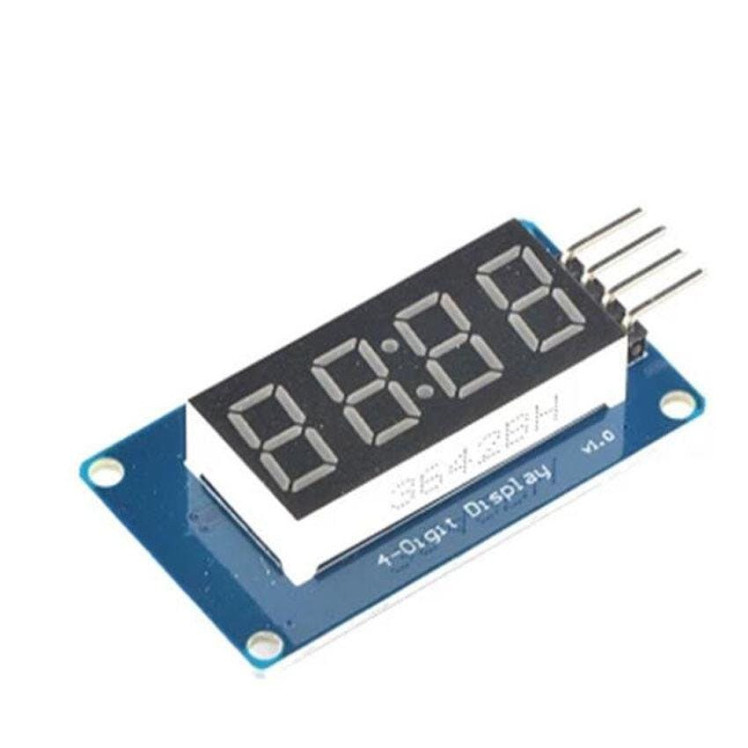

- TM1637 LED Display
- Jumper wires
- Visuino program: Download Visuino

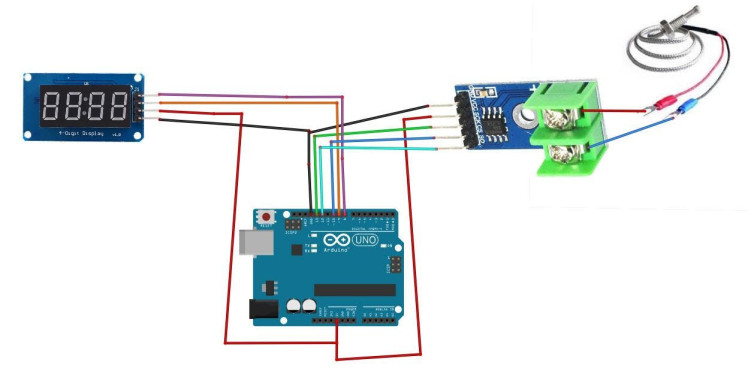

- Connect LED Display pin[CLK] to Arduino digital pin[8]
- Connect LED Display pin[DI0] to Arduino digital pin[9]
- Connect LED Display pin[GND] to Arduino pin[GND]
- Connect LED Display pin[VCC] to Arduino pin[5V
- ]Connect Thermometer MAX6675 module pin[VCC] to Arduino pin[5V]
- Connect Thermometer MAX6675 module pin[GND] to Arduino pin[GND]
- Connect Thermometer MAX6675 module pin[SO] to Arduino digital pin[12]
- Connect Thermometer MAX6675 module pin[CS] to Arduino digital pin[10]
- Connect Thermometer MAX6675 module pin[SCK] to Arduino digital pin[13]
- Connect Thermometer MAX6675 Sensor Red wire to Thermometer MAX6675 module pin[+]
- Connect Thermometer MAX6675 Sensor Blue wire to Thermometer MAX6675 module pin[-]
1 / 2

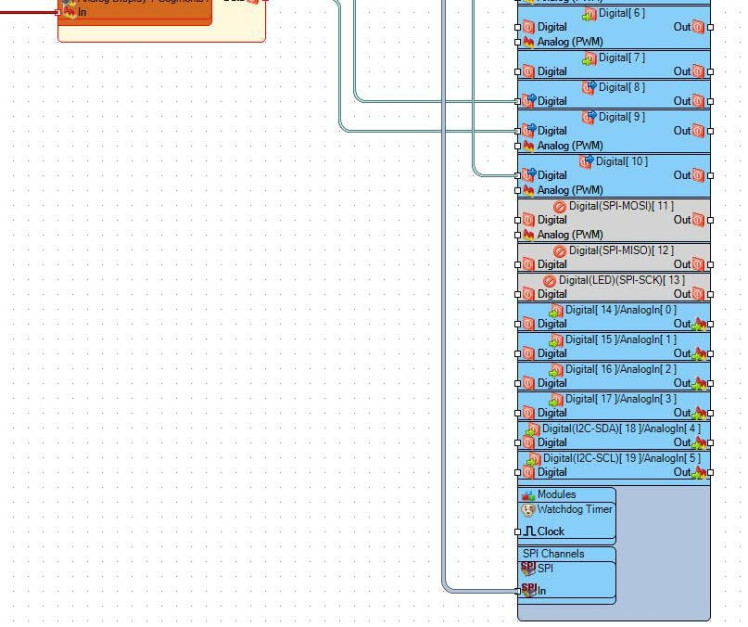

Start Visuino as shown in the first picture Click on the "Tools" button on the Arduino component (Picture 1) in Visuino When the dialog appears, select "Arduino UNO" as shown on Picture 2
Step 4: In Visuino Add & Set Components1 / 3
- Add "Clock Generator" component
- Add "MAX6675" component
- Add "TM1637 7 Segment Display 4 Digits Module + 2 Vertical Points (CATALEX)" component
- Select "Display1" and in the properties window set "Points" to True
- Double click on the "Display1" and in the "Digits" window Drag "Analog Display 7 Segments" to the left side
- Close the "Digits" window
1 / 3

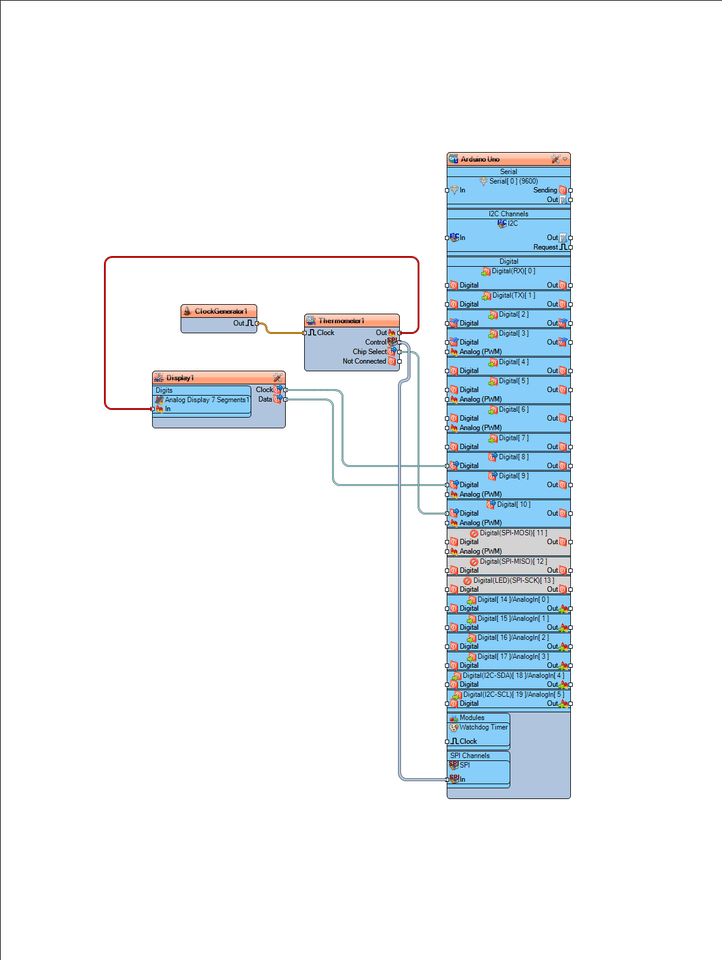

- Connect "ClockGenerator1" pin [Out] to "Thermometer1" pin [Clock]
- Connect "Thermometer1" pin [Out] to "Display1" pin [In]
- Connect "Thermometer1" pin Control [SPI] to "Arduino" pin SPI [In]
- Connect "Thermometer1" pin Control [Chip Select] to "Arduino" digital pin [10]
- Connect "Display1" pin Control [Clock] to "Arduino" digital pin [8]
- Connect "Display1" pin Control [Data] to "Arduino" digital pin [9]
In Visuino, at the bottom click on the "Build" Tab, make sure the correct port is selected, then click on the "Compile/Build and Upload" button.
Step 7: PlayIf you power the Arduino module, The LED Display will show the Temperature from the MAX6675 sensor.
Congratulations! You have completed your project with Visuino. Also attached is the Visuino project, that I created for this tutorial, you can download it and open it in Visuino: https://www.visuino.eu
