Generating Art From Comments

Made by 8BitsAndAByte / Art / Artificial intelligence / IoT

About the project

Turning the most questionable parts of the internet, chat rooms and comment sections, into fine art.

Project info

Difficulty: Easy

Platforms: Raspberry Pi

Estimated time: 1 day

License: Creative Commons Attribution-NonCommercial-ShareAlike CC BY-NC-SA version 4.0 or later (CC BY-NC-SA 4+)

Items used in this project

Hardware components

Raspberry Pi 3 Model B

x 1

Software apps and online services

	Remo.tv
	Deepai

Story

Introduction

This project is an ambitious one, where we want to use some of the most questionable parts of the internet, comment sections and chatrooms, to create art.

We also want to make the project easily accessible so anyone can try their hand at generating some fine AI art. If you can't wait to try it out yourself, here's a link to the project.

Project Video

Remo.tv

The first step is gathering chat messages and comments. With our idea to make it easily accessible, Remo.tv is a natural pick. It's a robot streaming platform which allows you to connect all kinds of hardware to the internet, and let anyone control them. It also has a chat functionality and the ability to display images, which is exactly what we're looking for!

In this, case the hardware we'll be using is a Raspberry Pi.

Remo.tv has a great Github page with setup instructions.

Once setup, our Raspberry Pi can start receiving the chat messages, sent via Remo.tv.

DeepAI

With Remo.tv setup we can move on the artsy part. Each comment that we receive needs to be transformed into art, and to achieve this we'll be using some artificial intelligence magic.

Luckily there as another platform to make our life easy, DeepAI. They have all kinds of AI related features, but the ones we are interested in are their APIs.

The first API we use is Text To Image, all we need to do is send a text and wait for the magic to happen. In the above picture you can see the result of sending A dog with a funny hat.

Our generated picture isn't art just yet, so we use their Fast Style Transfer. This API expects an original image, in our case our generated one, and a style to apply. You can see the result of combining our dog with a funny hat and a classic van Gogh painting.

Dataflow & Code

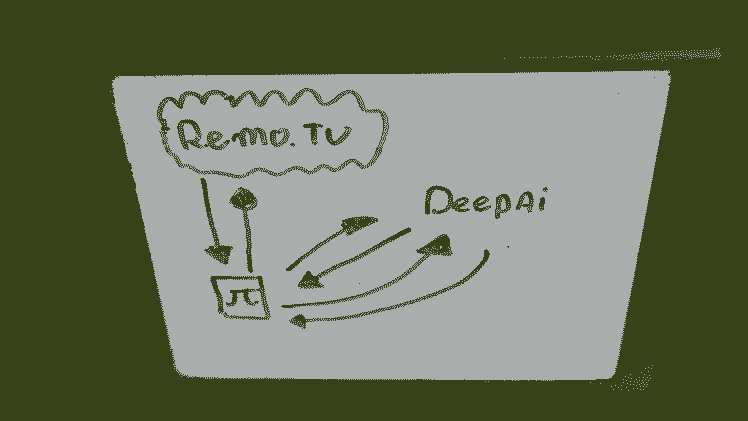

With al the separated pieces completed we can connect them. In the drawing we give an overview of the data flow:

A chat message arrives from Remo.tv to our Raspberry Pi
Our Pi sends this message to the Text To Image API and receives a generated image back
This image, together with a randomly selected art style, is then sent to the Fast Style Transfer API
After receiving the combination of the art style and the generated image, the Raspberry Pi streams the result to Remo.tv.

To be able to stream the generated image to Remo.tv we needed to write some custom code. Luckily, the lovely Remo.tv community helped us with that, thanks guys! :)

For all the curious, the full code is included in this project so you can get started right away.

Result

With all that hard work done, it's time to enjoy some fine art!

An old banana
Chicken nugget
Cute cats eating watermelon
Floating on a cloud
Loneliness
My happy place
Nowhere

Here is the link to Comment To Art on Remo.tv if you want to try it yourself!

Schematics, diagrams and documents

Dataflow

Code

controller.py

from __future__ import print_function

# TODO move all defs to the top of the file, out of the way of the flow of execution.
# TODO full python3 support will involve installing the adafruit drivers, not using the ones from the repo

import traceback
import argparse
import robot_util
import os.path
import networking
import time
import schedule
import sys
import watchdog
import logging
import logging.handlers
import json
import atexit

if (sys.version_info > (3, 0)):
    import importlib
    import _thread as thread
else:
    import thread
    # borrowed unregister function from
    # https://stackoverflow.com/questions/32097982/cannot-unregister-functions-from-atexit-in-python-2-7
    def unregister(func, *targs, **kargs):
        """unregister a function previously registered with atexit.
           use exactly the same aguments used for before register.
        """
        for i in range(0,len(atexit._exithandlers)):
            if (func, targs, kargs) == atexit._exithandlers[i] :
                del atexit._exithandlers[i]
                return True
        return False
    atexit.unregister = unregister

from threading import Timer

# fail gracefully if configparser is not installed
try:
    from configparser import ConfigParser
    robot_config = ConfigParser()
except ImportError:
    print("Missing configparser module (python -m pip install configparser)")
    sys.exit()

try:
    with open('controller.conf', 'r') as fp:
        robot_config.readfp(fp)
except IOError:
    print("unable to read controller.conf, please check that you have copied controller.sample.conf to controller.conf and modified it appropriately.")
    sys.exit()
except:
    print ("Error in controller.conf:", sys.exc_info()[0])
    sys.exit()

def write(self, config_file):
    sections = 0
    keys = 0
    errors = 0
    keys_in = 0
    sections_in = 0

    # count sections and keys in config
    for section in self.sections():
        sections_in += 1
        for option in self[section]:
            keys_in += 1

    # read the existing config file
    with open(config_file, 'r') as fp:
        lines = fp.readlines()

    # parse the config file line by line and update any keys found
    for count, line in enumerate(lines):
        temp_line = line.lstrip(' \t')
        if temp_line[0] == '#' or temp_line[0] == ';':
            continue # comment
        elif temp_line[0] == '[':
            section = temp_line.find(']')
            if sections == -1:
                errors += 1
                log.error("ERROR: Unable parse line {} of config as [section] header : '{}'".format(count, line.rstrip('\r\n')))
            else:
                sections+=1
                section = temp_line[1:section]
        elif temp_line[0] == '\r' or temp_line[0] == '\n':
            continue # blank line
        else:
            key = temp_line.find('=')
            if key == -1:
                errors += 1
                log.error("ERROR: Unable parse line {} of config as key=value pair : '{}'".format(count, line.rstrip('\r\n')))
            else:
                keys += 1
                key = temp_line[0:key]
                key = key.strip()
                value = robot_config.get(section, key)
                lines[count] = '{}={}\n'.format(key, value)

    if sections != sections_in:
        log.error("ERROR: {} sections in file, {} in object".format(sections, sections_in))
    if keys != keys_in:
        log.error("ERROR: {} keys in file, {} in object".format(keys, keys_in))

    # delete the existing config backup
    if os.path.exists(config_file + '.bak'):
        os.remove(config_file + '.bak')

    os.rename(config_file, config_file+'.bak')

    # write out the updated config file
    f = open(config_file, 'w')
    f.writelines(lines)
    f.close

    log.info("Config file saved.")

ConfigParser.write = write

handlingCommand = False
chat_module = None
move_handler = None

# pass the lock to robot_util so the controller can be terminated from outside.
terminate = thread.allocate_lock()
robot_util.terminate = terminate

# Enable logging, based upon the settings in the conf file.
log = logging.getLogger('RemoTV')
log.setLevel(logging.DEBUG)
console_handler=logging.StreamHandler()
console_handler.setLevel(logging.getLevelName(robot_config.get('logging', 'console_level')))
console_formatter=logging.Formatter('%(asctime)s - %(filename)s : %(message)s','%H:%M:%S')
console_handler.setFormatter(console_formatter)
try:
    file_handler=logging.handlers.RotatingFileHandler(robot_config.get('logging', 'log_file'),
        maxBytes=robot_config.getint('logging', 'max_size'),
        backupCount=robot_config.getint('logging', 'num_backup'))
except IOError:
    print("Error: Unable to write to log files. Check that they not owned by root, and that controller has write permissions to them")
    sys.exit()

file_handler.setLevel(logging.getLevelName(robot_config.get('logging', 'file_level')))
file_formatter=logging.Formatter('%(asctime)s %(name)s %(levelname)s - %(message)s','%Y-%m-%d %H:%M:%S')
file_handler.setFormatter(file_formatter)

log.addHandler(console_handler)
log.addHandler(file_handler)
log.critical('RemoTV Controller Starting up')

# Log all unhandled exceptions.
def exceptionLogger(exctype, value, tb):
    log.critical("Unhandled exception of type : {}".format(exctype),exc_info=(exctype, value, tb))
sys.excepthook = exceptionLogger

# This is required to allow us to get True / False boolean values from the
# command line
def str2bool(v):
    if v.lower() in ('yes', 'true', 't', 'y', '1'):
        return True
    elif v.lower() in ('no', 'false', 'f', 'n', '0'):
        return False
    else:
        raise argparse.ArgumentTypeError('Boolean value expected.')

# TODO assess these and other options in the config to see which ones are most
# appropriate to be overidden from the command line.
# check the command line for and config file overrides.
parser = argparse.ArgumentParser(description='start robot control program')
parser.add_argument('--robot-key', help='Robot API Key', default=robot_config.get('robot', 'robot_key'))
parser.add_argument('--type', help="Serial or motor_hat or gopigo2 or gopigo3 or l298n or motozero or pololu", default=robot_config.get('robot', 'type'))
parser.add_argument('--video', default=robot_config.get('camera', 'type'))
parser.add_argument('--custom-hardware', type=str2bool, default=robot_config.getboolean('misc', 'custom_hardware'))
parser.add_argument('--custom-tts', type=str2bool, default=robot_config.getboolean('misc', 'custom_tts'))
parser.add_argument('--custom-chat', type=str2bool, default=robot_config.getboolean('misc', 'custom_chat'))
parser.add_argument('--custom-video', type=str2bool, default=robot_config.getboolean('misc', 'custom_video'))
parser.add_argument('--ext-chat-command', type=str2bool, default=robot_config.getboolean('tts', 'ext_chat'))

parser.add_argument('--no-mic', dest='no_mic', action='store_true')
parser.set_defaults(no_mic=False)
parser.add_argument('--no-camera', dest='no_camera', action='store_true')
parser.set_defaults(no_camera=False)
parser.add_argument('--test', dest='test_mode', action='store_true')
parser.set_defaults(test_mode=False)
commandArgs = parser.parse_args()

log.debug('command line arguments : %s', commandArgs)

# push command line variables back into the config
robot_config.set('robot', 'robot_key', str(commandArgs.robot_key))
robot_config.set('robot', 'type', commandArgs.type)
robot_config.set('misc', 'custom_hardware', str(commandArgs.custom_hardware))
robot_config.set('misc', 'custom_tts', str(commandArgs.custom_tts))
robot_config.set('misc', 'custom_chat', str(commandArgs.custom_chat))
robot_config.set('tts', 'ext_chat', str(commandArgs.ext_chat_command))

if commandArgs.no_mic:
    robot_config.set('camera', 'no_mic', 'True')

if commandArgs.no_camera:
    robot_config.set('camera', 'no_camera', 'True')

# set variables pulled from the config
robotKey = commandArgs.robot_key
ext_chat = commandArgs.ext_chat_command
enable_async = robot_config.getboolean('misc', 'enable_async')

# check test_mode
test_mode = commandArgs.test_mode
if test_mode:
    log.critical("Remo.TV Controller starting in test mode")

if ext_chat:
    import extended_command


# Functions

def handle_message(ws, message):
    log.debug(message)

    try:
        messageData = json.loads(message)
    except:
        log.error("Unable to parse message")
        return

#    try:
    if "e" not in messageData:
        log.error("Malformed Message")
    event = messageData["e"]
    data = messageData["d"]

    if event == "BUTTON_COMMAND":
        on_handle_command(data)
       # handle_command(data)

    elif event == "MESSAGE_RECEIVED":
        if data['channel_id'] == networking.channel_id:
            if data['type'] != "robot":
               on_handle_chat_message(data)

    elif event == "ROBOT_VALIDATED":
        networking.handleConnectChatChannel(data["host"])

#    except Exception as e:
#        print(e)

def handle_chat_message(args):
    log.info("chat message received: %s", args)

    if ext_chat:
        extended_command.handler(args)

    message = args["message"]

    try:
        if not message[0] == ".":
            tts.say(args)
    except IndexError:
        exit()

def handle_command(args):
        global handlingCommand
        handlingCommand = True

        # catch move commands that happen before the controller has fully
        # loaded and set a move handler.
        if move_handler == None:
           return

        log.debug('got command : %s', args)
        move_handler(args,argsCustom)

        handlingCommand = False


def on_handle_command(*args):
   log.debug("on_handle_command : {} {}".format(handlingCommand, enable_async))
   if handlingCommand and not enable_async:
       return
   else:
       thread.start_new_thread(handle_command, args)

global argsCustom
def on_handle_chat_message(*args):
    global argsCustom
    argsCustom = args[0]

    if chat_module == None:
        thread.start_new_thread(handle_chat_message, args)
    else:
        thread.start_new_thread(chat_module.handle_chat,args)

def restart_controller(command, args):
    if extended_command.is_authed(args['sender']) == 2: # Owner
        terminate.acquire()


# TODO : This really doesn't belong here, should probably be in start script.
# watch dog timer
if robot_config.getboolean('misc', 'watchdog'):
    import os
    os.system("sudo modprobe bcm2835_wdt")
    os.system("sudo /usr/sbin/service watchdog start")

# Load and start TTS
log.info("Loading tts")
import tts.tts as tts
tts.setup(robot_config)

# Connect to the networking sockets
if not test_mode:
   log.info("Loading networking")
   networking.setupWebSocket(robot_config, handle_message)

# If custom hardware extensions have been enabled, load them if they exist. Otherwise load the default
# controller for the specified hardware type.
log.info("Loading hardware module")
log.debug("Loading module hardware/%s", commandArgs.type)
if commandArgs.custom_hardware:
    if os.path.exists('hardware/hardware_custom.py'):
        if (sys.version_info > (3, 0)):
              module = importlib.import_module('hardware.hardware_custom')
        else:
            module = __import__('hardware.hardware_custom', fromlist=['hardware_custom'])
    else:
        log.warning("Unable to find hardware/hardware_custom.py")
        if (sys.version_info > (3, 0)):
            module = importlib.import_module('hardware.'+commandArgs.type)
        else:
            module = __import__("hardware."+commandArgs.type, fromlist=[commandArgs.type])
else:
    if (sys.version_info > (3, 0)):
        module = importlib.import_module('hardware.'+commandArgs.type)
    else:
        module = __import__("hardware."+commandArgs.type, fromlist=[commandArgs.type])

#call the hardware module setup function
module.setup(robot_config)
move_handler = module.move

# Load the video handler
log.info("Loading video module")
log.debug("Loading module video/%s", commandArgs.video)
if commandArgs.custom_video:
    if os.path.exists('video/video_custom.py'):
        if (sys.version_info > (3, 0)):
            video_module = importlib.import_module('video.video_custom')
        else:
            video_module = __import__('video.video_custom', fromlist=['video_custom'])
    else:
        log.warning("Unable to find video/video_custom.py")
        if (sys.version_info > (3, 0)):
            video_module = importlib.import_module('video.'+commandArgs.video)
        else:
            video_module = __import__("video."+commandArgs.video, fromlist=[commandArgs.video])
else:
    if (sys.version_info > (3, 0)):
        video_module = importlib.import_module('video.'+commandArgs.video)
    else:
        video_module = __import__("video."+commandArgs.video, fromlist=[commandArgs.video])

# Setup the video encoding
video_module.setup(robot_config)
if not test_mode:
   video_module.start()

#load the extended chat commands
if ext_chat:
    log.info("Loading extended chat commands")
    extended_command.setup(robot_config)
    extended_command.move_handler=move_handler
    move_handler = extended_command.move_auth
    extended_command.add_command('.restart', restart_controller)

# Load a custom chat handler if enabled and exists
if commandArgs.custom_chat:
    if os.path.exists('chat_custom.py'):
        if (sys.version_info > (3, 0)):
            chat_module = importlib.import_module('chat_custom')
        else:
            chat_module = __import__('chat_custom', fromlist=['chat_custom'])

        chat_module.setup(robot_config, handle_chat_message)

    else:
       log.warning("Unable to find chat_custom.py")

atexit.register(log.debug, "Attempting to clean up and exit nicely")
if not test_mode:
    log.critical('RemoTV Controller Started')
    while not terminate.locked():
        time.sleep(1)
        watchdog.watch()

    log.critical('RemoTV Controller Exiting')
else:
    log.critical('RemoTV Controller Test Complete')
sys.exit()

none.py

import robot_util
import requests
import urllib.request
import requests
import random
from video.ffmpeg_process import *
import audio_util
import networking
import watchdog
import subprocess
import shlex
import schedule
import extended_command
import atexit
import os
import sys
import logging
import time
import signal
import re

styles = []

# Add your art styles urls here
styles.append('https://cdn.britannica.com/78/43678-050-F4DC8D93/Starry-Night-canvas-Vincent-van-Gogh-New-1889.jpg')

def textToImage(text):

    r = requests.post(
        "https://api.deepai.org/api/text2img",
        data={
            'text': text,
        },
        headers={'api-key': 'YOUR API KEY HERE'}
    )
    result = r.json()
    return result['output_url']


def styleTransfer(targetURL):

    index = random.randint(0, len(styles)-1)
    styleUrl =styles[index]

    r = requests.post(
        "https://api.deepai.org/api/fast-style-transfer",
        data={
            'content': targetURL,
            'style': styleUrl,
        },
        headers={'api-key': 'YOUR API KEY HERE'}
    )
    result = r.json()
    return result['output_url']

def startFFMPEG(command, name, atExit, process):

    try:
        if sys.platform.startswith('linux') or sys.platform == "darwin":
            ffmpeg_process=subprocess.Popen(command, stderr=subprocess.PIPE, shell=True, preexec_fn=os.setsid)

        globals()[process] = ffmpeg_process
    except OSError: # Can't find / execute ffmpeg
        robot_util.terminate_controller()
        return()

    if ffmpeg_process != None:
        try:
            atexit.unregister(atExit) # Only python 3
        except AttributeError:
            pass


def generateImage(text, author):

    robot_util.sendChatMessage("Generating...")
    cleanText= re.sub('[^A-Za-z0-9]+', '', text)
    cleanUser = re.sub('[^A-Za-z0-9]+', '', author)
    targetURL = textToImage(text)
    resultURL = styleTransfer(targetURL)
    imgPath = "/home/pi/remotv/img/"+ str(int(time.time()))+ '-' + cleanText + '-' + cleanUser + ".png"
    urllib.request.urlretrieve(resultURL, imgPath)

    os.system("sudo killall ffmpeg")
    videoCommandLine = 'ffmpeg -loop 1 -i {PathToFile} -s 720x480 -f mpegts -codec:v mpeg1video -an -b:v 2500k -muxdelay 0.001 http://remo.tv:1567/transmit?name=<YOUR ROBOT UID HERE>-video'
    videoCommandLine = videoCommandLine.format(PathToFile=imgPath)
    startFFMPEG(videoCommandLine, 'Video',  atExitVideoCapture, 'video_process')
    robot_util.sendChatMessage("Now showing: " + text + " by " + author)


def atExitVideoCapture():
    print('it dead!')

def setup(robot_config):
    return

def move(args, argsCustom):

    try:

        if args['button']['label'] == 'Generate':
            message = argsCustom['message']
            user = argsCustom['sender']
            generateImage(message,user)

        if args['button']['label'] == 'More Info':
            robot_util.sendChatMessage("Type in the chat and press 'Generate' to create an piece of AI art.")
            time.sleep(5)

    except:
        pass


    return

Credits

8BitsAndAByte

We’re Dane & Nicole, two makers that create tremendously terrible tech, which we happily share with you on our channel! https://www.youtube.com/c/8bitsandabyte

Shop

Project Hub

Video

Blog

Shop home

3D printing

Single Board Computers

Development kits

Sensors

Internet of things

Robotics

Accessories

Product of the Week

Electromaker Educator

The Electromaker Show

The Electromaker Podcast

Generating Art From Comments

About the project

Project info
