Diy Fume Extractor With Hepa & Carbon Filter

Made by Mellow_Labs / 3D Printing / Health / Upcycling

About the project

Build a DIY fume extractor with HEPA and carbon filters for cleaner air

Project info

Difficulty: Easy

Estimated time: 1 hour

License: Creative Commons Attribution CC BY version 4.0 or later (CC BY 4+)

Story

After nearly 20 years of inhaling solder fumes, I finally decided to build a proper fume extractor. But this isn't your standard "strap a carbon filter to a fan" setup. This DIY fume extractor features both a HEPA filter and an activated carbon filter, providing a robust solution for capturing solder fumes efficiently.

Parts List

Fan: A salvaged 24V fan.
HEPA filter sheets: Customizable to fit the desired size.

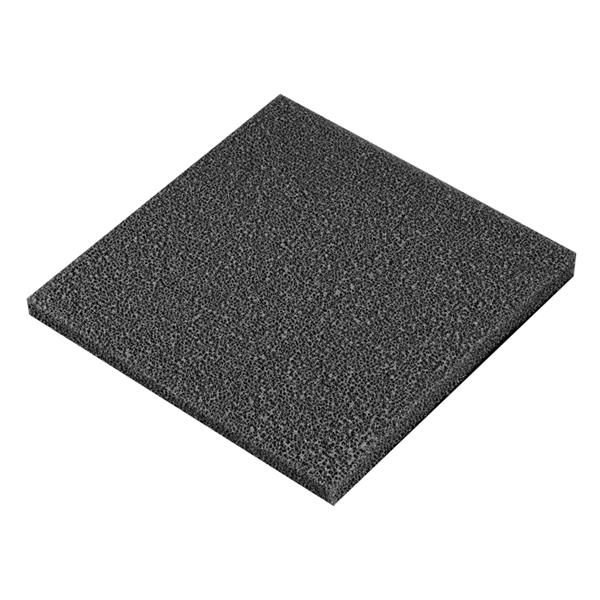

Activated carbon foam filters: Purchased in bulk to replace as needed.
DC speed controller: Rated for 3-35V at 5A.
USB-C PD module: 20V output for power supply.
3D printed enclosure: Designed to house all components securely.

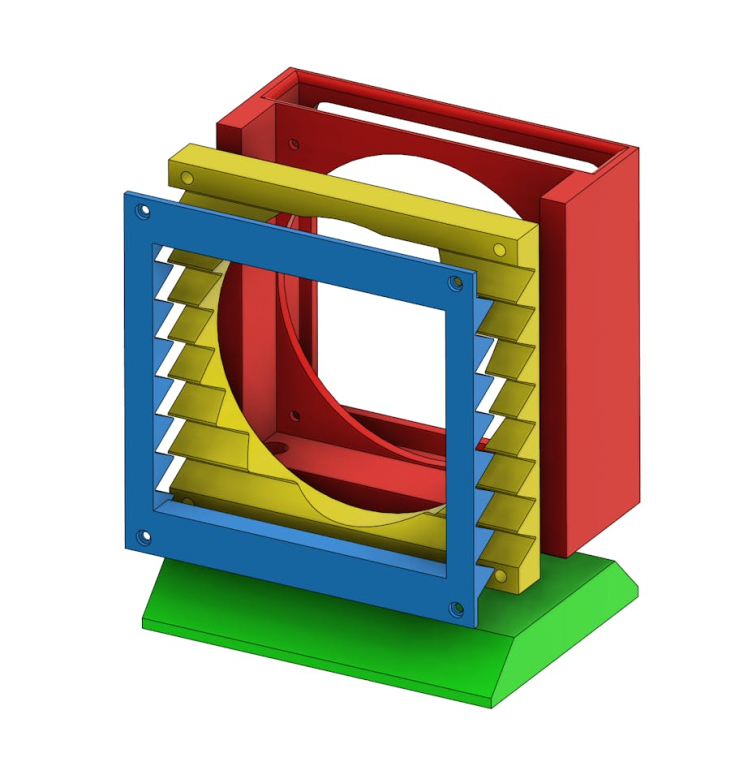

Step 1: Enclosure Design and Printing

The enclosure was designed to allow easy replacement of both the carbon and HEPA filters. It features a slot-in mechanism for quick swaps and heat insert fittings for secure assembly. The parts were designed to be easy to 3D print, which does require some super glue for assembly. They fit snugly with minimal post-processing required. Filament choice is flexible based on personal preference. You can purchase the design files over on my Patreon.

Step 2: Electronics and Wiring

The electronics setup includes a USB-C PD module that provides a stable 20V power supply to the fan through a DC speed controller, allowing for precise speed adjustments. Connections were soldered directly for a reliable and secure fit, with heat-shrink tubing applied to ensure durability and prevent short circuits. The compact arrangement keeps everything neat and minimizes clutter, making it easy to troubleshoot or upgrade in the future.

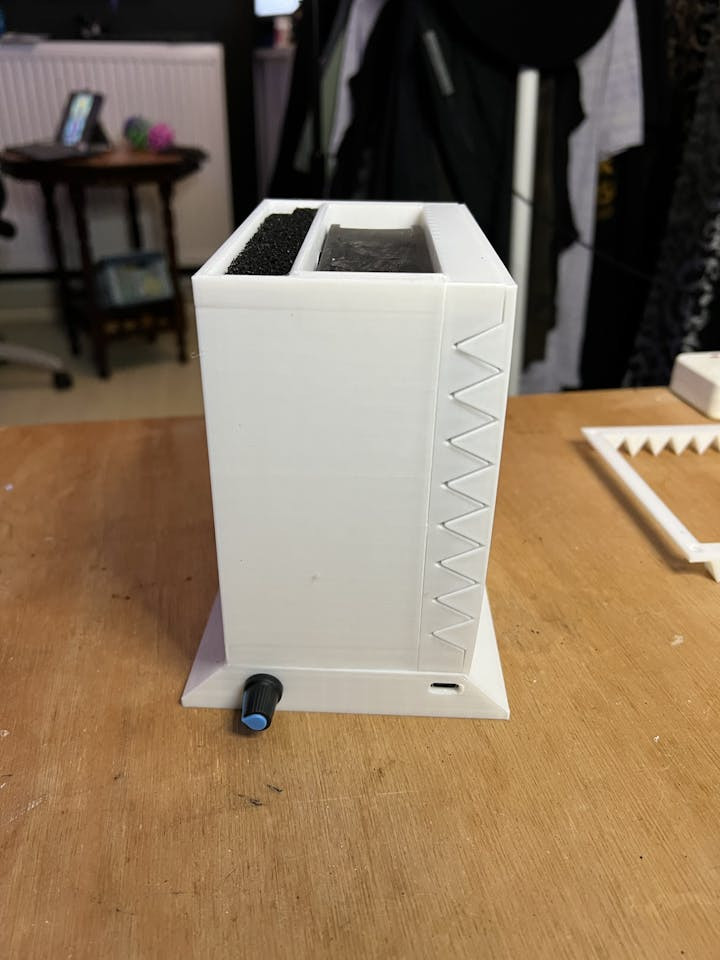

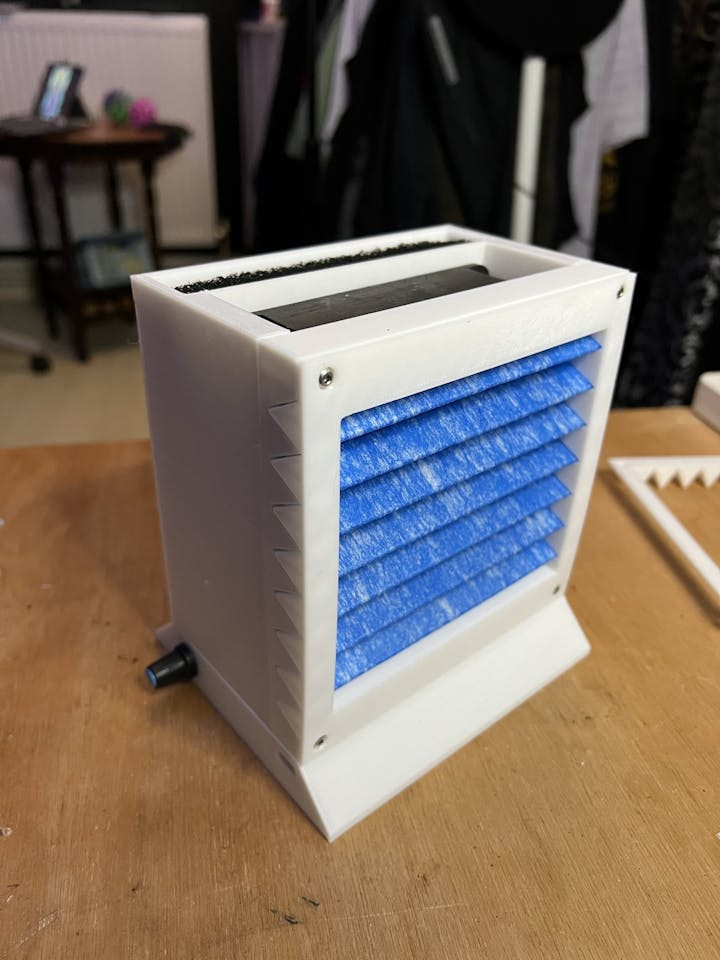

Step 4: Final Assembly

With all components assembled, the fan effectively pulled fumes through the carbon and HEPA filters, resulting in significantly improved air quality. The modular design allows for easy maintenance and filter replacements, making it a practical addition to any workspace.

1 / 3

Future Improvements:

Battery operation for field work.
Auto stop and start based on soldering iron state.

Conclusion

This DIY fume extractor is an affordable and highly effective solution for anyone working with soldering or other fume-generating projects. Combining HEPA and carbon filters ensures cleaner air in your workspace. If you'd like to build your own, check out my Patreon for downloadable STL files and more details.
