Mega Animated The One Ring
Made by christoferjh / 3D Printing / Art / Home Automation / Lights / Notifications
About the project
Animated mega sized the one ring. Used for notifications from smart home.
Project info
Difficulty: Moderate
Platforms: Arduino, Everything ESP
Estimated time: 2 days
License: MIT license (MIT)
Items used in this project
Hardware components
Story

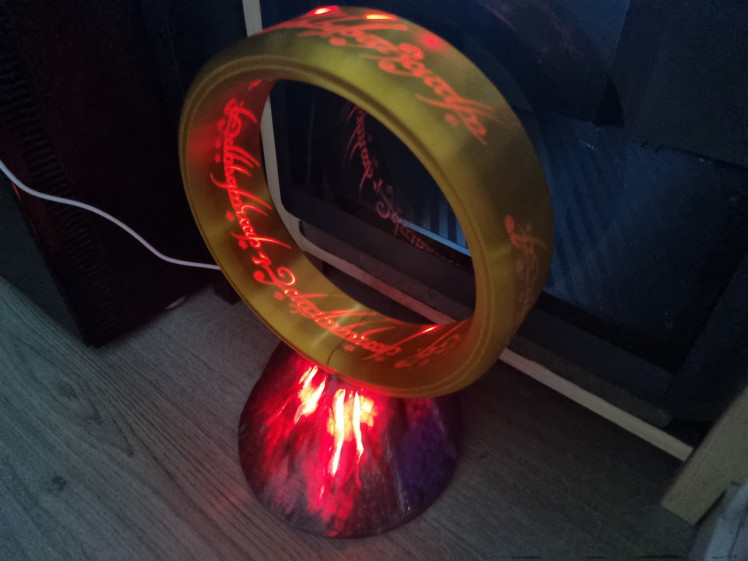

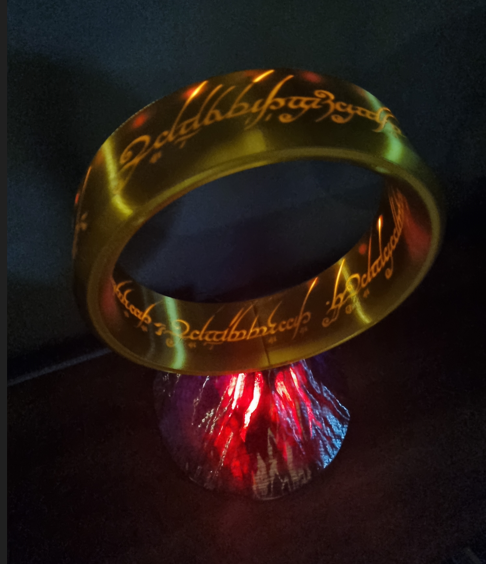

Animated mega sized the one ring
https://github.com/christoferjh/the-one-ring
https://makerworld.com/en/models/533264#profileId-450094
The One Ring Notification Device
Overview
The One Ring Notification Device is an innovative and visually appealing notification system integrated into a smart home environment. Utilizing an array of individually addressable LEDs, this device is designed to provide real-time notifications by displaying various animations and colors, all controlled via Home Assistant and Node-RED.
Features
- Color Roll: A rotating color effect cycling through red, green, and blue.
- Full On: All LEDs lit with a single, user-defined color.
- Color Follow: A moving light effect where a specified number of LEDs follow each other.
- Glow: A pulsing glow effect with adjustable brightness.
- Lava Flow: A trickling lava animation with independent streams, creating a captivating visual effect.
- Seamlessly connects with Home Assistant, allowing the LED ring to serve as a visual notification hub for various home automation events.
- Node-RED flows manage the LED animations and color changes based on triggers from Home Assistant.
- Provides a user-friendly interface for creating complex automation scenarios without extensive coding.
- A simple HTML interface to control the LED ring's brightness, animation type, and color.
- Accessible via any web browser on the local network.
Technical Specifications
- Microcontroller: ESP8266, providing Wi-Fi connectivity.
- LED Type: WS2812B, individually addressable LEDs.
- Power Supply: 5V DC, adequate for powering the ESP8266 and LEDs.
- Communication: Initially attempted MQTT, but switched to Node-RED for enhanced stability and reliability.
Setup and Configuration
- Connect the WS2812B LED ring to the ESP8266 microcontroller, ensuring proper power and data connections.
- Power the setup using a stable 5V power supply.
- Flash the ESP8266 with the provided Arduino code, ensuring the inclusion of necessary libraries such as
ESP8266WiFi,FastLED, andESP8266WebServer. - Configure the device to connect to your home Wi-Fi network using credentials stored in a
secrets.hfile.
- Set up Node-RED within Home Assistant to communicate with the ESP8266 device.
- Create Node-RED flows to handle various home automation events and control the LED ring accordingly.
- Access the web interface through the ESP8266s IP address to manually control the LED ring's settings.
- Adjust brightness, set default colors, change animation types, and set individual LED colors using the provided web controls.
Use Cases
- Notification Alerts:
- Use the LED ring to visually notify you of important events such as incoming emails, security alerts, or weather warnings.
- Ambiance Lighting:
- Set the LED ring to a calming glow or a dynamic color roll to enhance the ambiance of your living space.
- Status Indicators:
- Use different colors and animations to indicate the status of various home automation devices, such as door locks, thermostat settings, or light statuses.
Troubleshooting and Tips
- Power Supply:
- Ensure a stable power supply to prevent flickering or unexpected behavior of the LEDs.
- Wi-Fi Connectivity:
- Place the ESP8266 within a strong Wi-Fi signal range to ensure consistent communication with Home Assistant.
By leveraging the flexibility of the ESP8266, the versatility of WS2812B LEDs, and the powerful automation capabilities of Home Assistant and Node-RED, the LED Ring Notification Device serves as a sophisticated and customizable solution for enhancing your smart home experience.

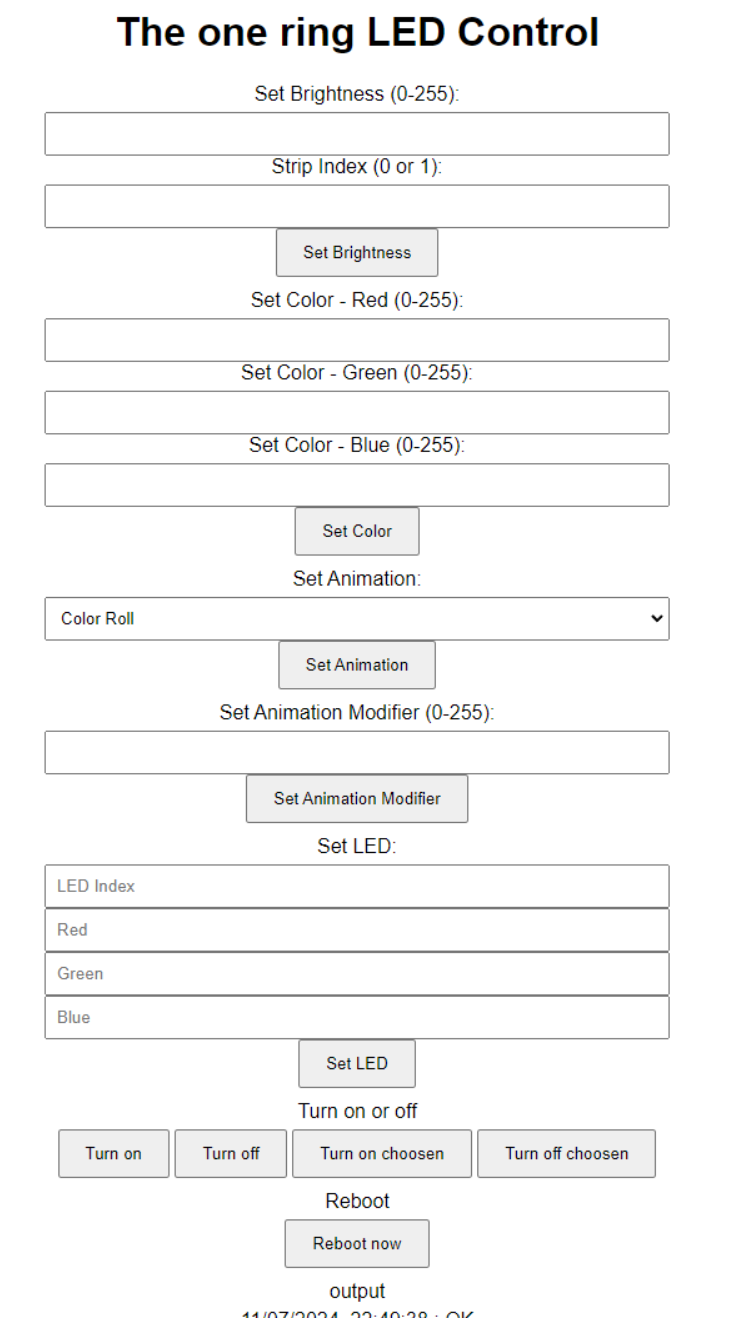

Controll page
If you open the ipadress of the controller there is a simple controllpage
Video
https://www.youtube.com/shorts/hci9DGwAlOc
