Arduino Tutorial : Mini Piano

Photo of the lonely programmer

Made by the lonely programmer / Kids & Family / Music / Voice

About the project

In this video, I show you how to make a mini piano using Arduino.

Project info

Difficulty: Moderate

Platforms: Arduino

Estimated time: 1 hour

License: GNU Lesser General Public License version 3 or later (LGPL3+)

Like

Items used in this project

Hardware components

	Arduino uno	x 1
	Switched JST-PH 2-Pin SMT Right Angle Breakout Board	x 7
	330ohms resistor	x 7

Software apps and online services

arduino ide

Story

Step 1: Parts and Material

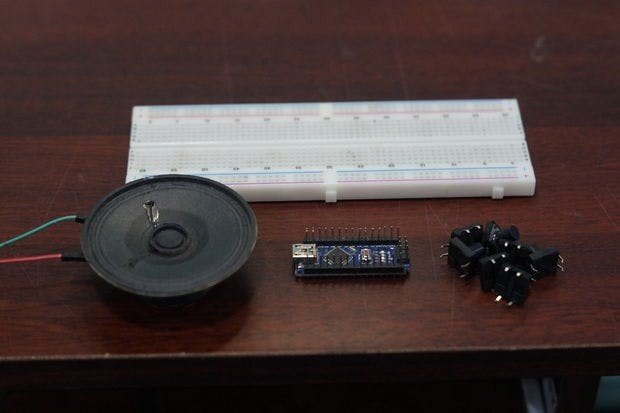

The Parts which we need are :

* Arduino

* Piezo Buzzer

* Push Buttons - 7

* Jumper Cables

Step 2: Connections

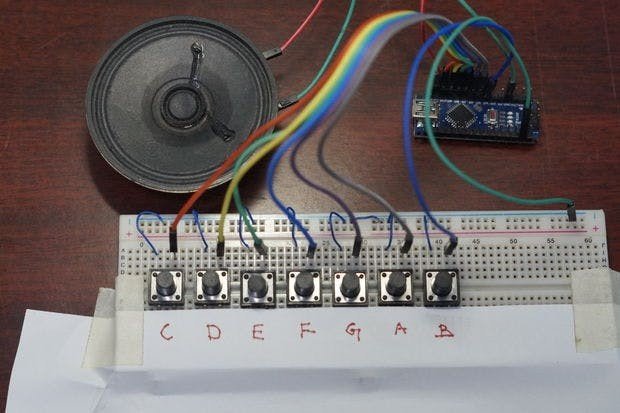

The Buttons are connected to D4 to D10 of the Arduino

The Piezo Buzzer -> D11 of the Arduino

Step 3: Play!

And that's it! You should now be able to tap on the keys and hear the corresponding notes played through the buzzer. If the note isn't accurate, you can adjust the note value in the Arduino sketch to set what value that the pitch is achieved.You can also change the scale that is played by uncommenting one of the few scales included, or make your own scale! If you make your own piano, please comment and show us some pictures and videos. We'd love to see some creative instruments!

Give a thumbs up if it really helped you and do follow my channel for interesting projects :)

Thanks for reading!

Working of the Project

Schematics, diagrams and documents

Connections

I had explained in the video. Kindly refer

Code

Arduino Tutorial : Mini Piano

The Code is attached

//Arduino Piano
/*

Visit the Channel for more interesting projects

https://www.youtube.com/channel/UCks-9JSnVb22dlqtMgPjrlg

*/

#define T_C 262
#define T_D 294
#define T_E 330
#define T_F 349
#define T_G 392
#define T_A 440
#define T_B 493

const int C = 10;
const int D = 9;
const int E = 8;
const int F = 7;
const int G = 6;
const int A = 5;
const int B = 4;

const int Buzz = 11;
const int LED = 13;

void setup()
{
  pinMode(LED, OUTPUT);
  pinMode(C, INPUT);
  digitalWrite(C,HIGH);

  pinMode(D, INPUT);
  digitalWrite(D,HIGH);

  pinMode(E, INPUT);
  digitalWrite(E,HIGH);

  pinMode(F, INPUT);
  digitalWrite(F,HIGH);

  pinMode(G, INPUT);
  digitalWrite(G,HIGH);

  pinMode(A, INPUT);
  digitalWrite(A,HIGH);

  pinMode(B, INPUT);
  digitalWrite(B,HIGH);

   digitalWrite(LED,LOW);
}

void loop()
{
  while(digitalRead(C) == LOW)
  {
    tone(Buzz,T_C);
    digitalWrite(LED,HIGH);
  }

  while(digitalRead(D) == LOW)
  {
    tone(Buzz,T_D);
    digitalWrite(LED,HIGH);
  }

  while(digitalRead(E) == LOW)
  {
    tone(Buzz,T_E);
    digitalWrite(LED,HIGH);
  }

  while(digitalRead(F) == LOW)
  {
    tone(Buzz,T_F);
    digitalWrite(LED,HIGH);
  }

  while(digitalRead(G) == LOW)
  {
    tone(Buzz,T_G);
    digitalWrite(LED,HIGH);
  }

  while(digitalRead(A) == LOW)
  {
    tone(Buzz,T_A);
    digitalWrite(LED,HIGH);
  }

  while(digitalRead(B) == LOW)
  {
    tone(Buzz,T_B);
    digitalWrite(LED,HIGH);
  }

  noTone(Buzz);
  digitalWrite(LED,LOW);

}
