Arduino Mkr1010 And Alibaba Cloud Iot By Using Grove Sensor
Made by radhyahmad / Communication / Displays / Environmental Sensing / Food & Drinks / Weather
About the project
This project shows grove gas sensor V2 and Grove - AMG8833 8x8 Infrared Thermal Temperature of seeed studio integrated with arduino mkr1010.
Project info
Difficulty: Moderate
Platforms: Arduino, Seeed Studio, MQTT, PlatformIO
Estimated time: 5 hours
License: Apache License 2.0 (Apache-2.0)
Items used in this project
Hardware components
Story
Grove - Multichannel Gas Sensor V2 has 4 measuring units, each of them is sensitive to various kinds of gases, which means you are able to get four sets of data at the same time. And different sorts of gases can also be judged by these four sets of data. The gas sensor used in this module is based on MEMS technology and has the advantage of being in a small size with considerable measurement stability and is more suitable for qualitative than quantitative measurement (https://wiki.seeedstudio.com/Grove-Multichannel-Gas-Sensor-V2/).
Grove - AMG8833 8x8 Infrared Thermal Temperature Sensor Array is a high precision infrared array sensor based on advanced MEMS technology. This sensor can measure temperatures ranging from 0°C to 80°C (32°F to 176°F) and provide the accuracy of +- 2.5°C (4.5°F). It can support temperature detection of the two-dimensional area of 8 × 8 (64 pixels) and a maximum 7 meters detection distance (https://www.seeedstudio.com/Grove-Infrared-Temperature-Sensor-Array-AMG8833.html).
This project is aimed to show how to use Arduino MKR1010 WiFi and Grove - Multichannel Gas Sensor V2 and Grove - AMG8833 8x8 Infrared Thermal Temperature Sensor Array in IoT implementation. Device integrated with both sensors will collect data of measurements. All of data will be sent to the Alibaba Cloud IoT Platform.
IoT Infrastructure
IoT Infrastructure
Alibaba Cloud IoT Platform allows IoT companies stable communication between devices and the IoT Platform. Featuring nodes deployed globally, devices around the world can communicate with the IoT platform rapidly and with low latency. Alibaba Cloud IoT Platform also provides various security measures that guarantee individual device security as well as secure communication between devices and the IoT platform. Critical to Alibaba Cloud's IoT Platform is its data storage and processing capabilities which allow for the integration of APIs and other Alibaba Cloud services. Finally, Alibaba Cloud IoT platform is highly customizable, featuring a rules engine for rapid data analysis, storage, and application development (https://www.alibabacloud.com/product/iot).
Hardware and Cloud Integration
Hardware and Cloud Integration
Some libraries are used in this project:
1. https://github.com/arduino-libraries/WiFiNINA
2. https://github.com/Seeed-Studio/Seeed_Arduino_MultiGas
3. https://github.com/arduino-libraries/ArduinoMqttClient
4. https://github.com/sparkfun/SparkFun_GridEYE_Arduino_Library
5. https://github.com/bblanchon/ArduinoJson

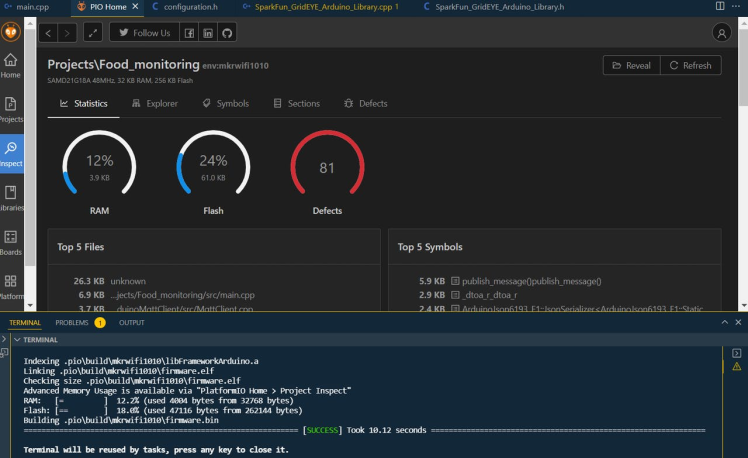

After finishing installation of library on this project, we can do inspect of the code and all libraries. So the usage of RAM and FLASH memory are clearly known and also we can find the defects by using cppcheck (https://cppcheck.sourceforge.io/) which is a static analysis tool for C/C++ code.
Alibaba Cloud IoT Platform
Alibaba Cloud IoT Platform

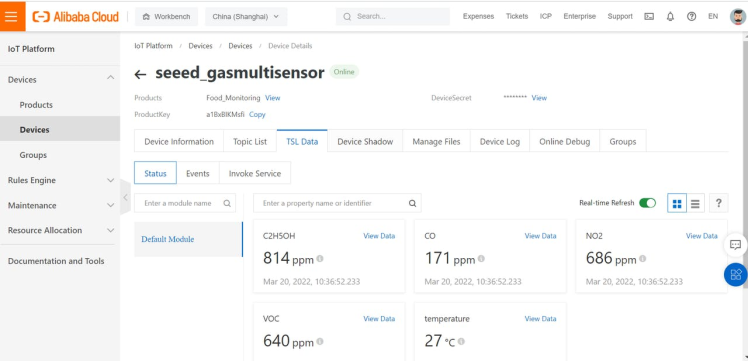

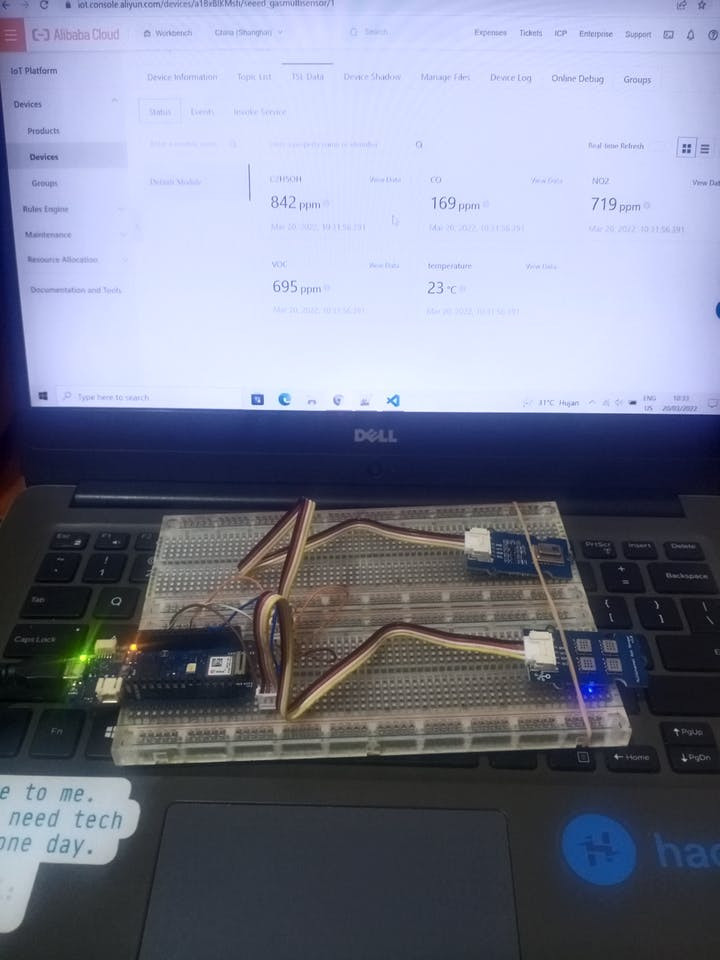

Finally, It has been successfully connected to Alibaba Cloud IoT Platform.
