Introduction
Many AA or AAA battery chargers charge batteries in pairs, but plenty of devices use 1 or 3 batteries, meaning that some of your batteries get overcharged and some get undercharged. NiCd and NiMH batteries also benefit from an occasional full discharge, which most normal battery chargers won't do.
If you're anything like me you'll end up with a lot of rechargeable batteries, none of which end up being charged properly, and some of which turn out to be completely unusable. It'd be perfect if you had a low-power battery charger that you could leave on all the time, that would charge your batteries individually, automatically discharge them, and give you an idea of their real capacity. That's what you'll make in this tutorial!
Note: To make this nice and simple, the charger uses Espruino's GPIO pins to directly charge and discharge the batteries. This means it can't charge batteries very quickly (it can take days to charge and discharge them!).
You'll Need
- One Espruino Pico
- A long Breadboard
- A PCD8544 LCD display
- Some patch wire (normal solid core wire is fine)
- 4x 100 Ohm resistors
- AA or AAA battery holders with pins (available from Rapid Electronics: AA or AAA)
Wiring Up

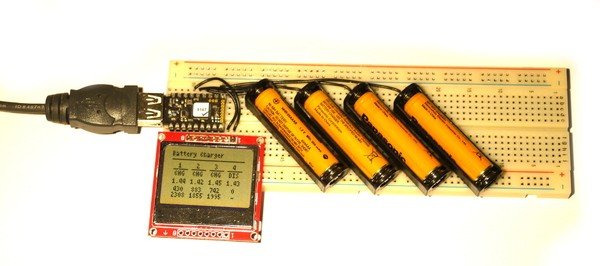

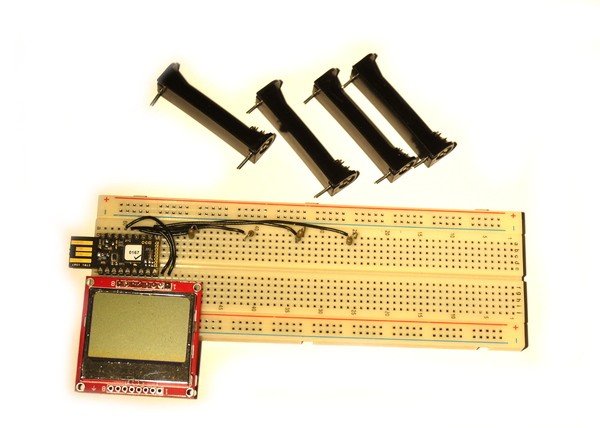

- Place the breadboard with the
-
row of pins right at the bottom, and the+
row right at the top. - Plug the Espruino Pico into the breadboard as far left as it will go (as in the picture)
- Add a wire from Espruino's
GND
pin (on the far left) straight down to the bottom-
row of pins. You can't see this in the picture because it's under the LCD screen. - Plug the PCD8544 into the breadboard below the Pico, with 2 pins sticking out to the right of the Pico (it should overlap the GND wire)
- Take a patch wire and connect from pin
B1
on the Pico to the top of a column 5 pins to the right of the Pico (see the picture) - Fold a 75 Ohm resistor, cut it to length, and add it diagonally between the 5th column right of the Pico and the 6th.
- Now add 3 more sets of wires and resistors, from pins
A7
,A6
andA5
, to new columns, each with 7 columns of pins between it and the last. Note: This works for AAA batteries - for AA you will need to space the columns out a bit more. - Cut the pins on your battery holders down so they'll fit in the breadboard, and then place the battery holders in the breadboard at an angle: With the
+
contact relative to the resistor (as shown below), and with the-
contact in the bottom-
row of pins on the breadboard.
- Now add 2 wires for the LCD:
B10
to the pin nearest the Pico, andB13
to the pin right on the edge.
And you're done!
Software
Connect to the Web IDE, copy the following software into the right-hand side, and upload it:
- var g;
- B3.write(0); // GND
- // B4.write(1); // Backlight
- B5.write(1); // VCC
- // The pins each battery is connected to
- var BATS = [ B1, A7, A6, A5 ];
- // The resistor's value
- var RESISTOR_VALUE = 100;
- // Are we charging or discharging batteries?
- var batCharge = [ 0, 0, 0, 0 ];
- // How much charge has gone into batteries (in mAh-ish)
- var cntCharge = [ 0, 0, 0, 0 ];
- // How much have batteries been discharged (in mAh-ish)
- var cntDischarge = [ 0, 0, 0, 0 ];
- function getBatteryVoltages() {
- var voltages = [0,0,0,0];
- // read voltages multiple times, and take an average
- var N = 20;
- for (var i=0;i
= 0) { g.drawStringCenter(batCharge[i] ? "CHG" : "DIS", x, 20); g.drawStringCenter(volts[i].toFixed(2), x, 28); g.drawStringCenter(cntDischarge[i] ? (cntDischarge[i]|0) : "-", x, 36); g.drawStringCenter(cntCharge[i] ? (cntCharge[i]|0) : "-", x, 42); } else { g.drawStringCenter("-", x, 20); } } g.flip(); } function onInit() { var spi = new SPI(); spi.setup({ sck:B6, mosi:B7 }); g = require("PCD8544").connect(spi, A8 /*DC*/, B10 /*CE*/, B13 /*RST*/, function() { g.setRotation(2); g.clear(); g.drawString("Loading...",0,0); g.drawLine(0,10,84,10); g.flip(); }); g.drawStringCenter = function(txt,x,y) { this.drawString(txt, x-this.stringWidth(txt)/2, y); }; lastInterval = getTime(); setInterval(onInterval, 2000); } // What happens when we press a button setWatch(function() { if (batCharge=="0,0,0,0") batCharge.fill(1); else batCharge.fill(0); cntCharge.fill(0); cntDischarge.fill(0); onInterval(); }, BTN, { repeat: true, edge:"rising", debounce:50});
