Low Cost, Low Power Microcontroller: Texas Instruments LP-MSPM0C1104 Launchpad Review
Today we look into a little wonder — the LP-MSPM0C1104! Spoiler: we’re not calling it that. Instead, let's meet the ‘Super Awesome TI LaunchPad’ that packs a punch in microcontroller prototyping. Your new favorite tool for the latest MSPM0 series.
In this article, we’ll explore the features, benefits, and real-world applications of the Super Awesome TI LaunchPad, equipped with the MSPM0C1104 microcontroller. You’ll discover why this development kit is ideal for low-power, low-cost projects, and how it can be integrated into commercial applications. Plus, we’ll look at some exciting project ideas you can try, from motor controllers to sensor devices, showcasing just how versatile this little powerhouse can be.

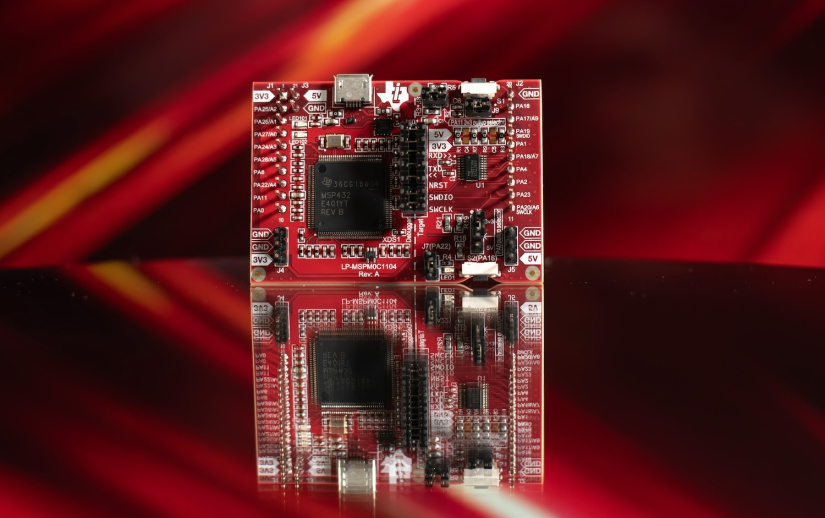

What is the LP-MSPM0C1104 LaunchPad Development Kit?
The main reason we have selected this development kit as this week's Product of the Week is that it’s got everything an engineer needs — a debugger, programmer, connectivity, GPIOs, and more, all in one package, ready to go!
At the heart of this kit lies the MSPM0C1104 microcontroller, designed for low-power and low-cost applications. This tiny marvel houses a 24MHz Arm Cortex-M0+ MCU with 16 KB flash, 1KB SRAM, 12-bit ADC PLUS a suite of integrated peripherals, packed into an impressively small footprint. Sure, the big IC might look like it’s doing the heavy lifting, but the real star here is the tiny U1 microcontroller, delivering powerful functionality where it counts.
LP-MSPM0C1104 LaunchPad - Features and Specs
What makes the LP-MSPM0C1104 LaunchPad so awesome? It's incredibly low power, low cost, and packed with everything you need for prototyping. And the best part? It costs just 18 cents per chip in bulk. That’s right, 18 cents for a microcontroller that can power up your projects without draining your budget!
Note: If you want something even smaller, take a look at its cousin, the MSPM0C103. It comes with 8KB flash and costs only 16 cents per chip. These MCUs are perfect for large-scale projects where cost efficiency is key.
Let’s talk specs! The LP-MSPM0C1104 brings a lot to the table for such a tiny chip:
- ARM Cortex M0+ clocked at 24MHz
- 16KB Flash memory and 1KB RAM
- 12-bit ADC at 1.5Mbps
- Low power consumption (87uA/MHz)
- USB-powered with onboard debugger and programmer
- Up to 12 PWM channels, I2C, UART, and SPI support
- USB-C connectivity
It’s like packing an entire toolbox into a pocket-sized chip — power, precision, and all the tech goodness you could ask for!
The LP-MSPM0C1104 LaunchPad also features 20-pin BoosterPack headers that support a range of expansion modules, from wireless connectivity to environmental sensing. With an onboard LED and user button, quick tests are easy. Additionally, the XDS110 debug probe allows for seamless integration into CCS Cloud, making programming and debugging a breeze.
What Projects Can You Prototype With This Kit?
This development board is perfect for testing new ideas, especially when working on commercial prototypes where cost and power efficiency are key. The LP-MSPM0C1104 LaunchPad makes the development process affordable and accessible to engineers. Imagine pushing a product to market without sweating over high costs — this tiny powerhouse could be your ticket!
Motor Controllers
The MSPM0C1104 is an excellent choice for motor controller designs. Its ADC can measure current, and the PWM channels can control motor speed. Pair this MCU with an H-Bridge driver, and you’ve got yourself a cost-effective miniature motor controller!
Real-Time Sensor Devices
Consider using this MCU in real-time sensor applications. A thermistor, for example, could pair with the MSPM0C1104 to create an intelligent sensor system. The MCU can act as an I2C-enabled component with built-in calibration, enabling seamless integration into various projects.
Resources For Getting Started
With its perfect blend of cost efficiency, low power consumption, and versatility, this sleek little kit offers everything an engineer could need for prototyping and beyond. From motor controllers to sensor devices, the possibilities are endless!
If you’re ready to dive into the LP-MSPM0C1104 LaunchPad, you can find it on Texas Instruments’ product page. To get the most out of your development, explore TI’s Code Composer Studio, IAR Embedded Workbench, and other development tools. For example codes, SDKs, and community forums, check out the resources available through TI’s Cloud Developer Zone and the MSP Academy.
