M5Stack Dial REVIEW with WiFi, Bluetooth & More!
Welcome to the future of interactive controls! Imagine a device so versatile and compact that it redefines how you interact with your projects, whether at home, in the workplace, or in industrial settings. Enter the M5Stack Dial ESP32-S3 Smart Rotary Knob, a cutting-edge solution designed to bring precision, programmability, and innovation to your fingertips.
At the heart of this device is its small yet powerful programmable rotary knob, boasting a sleek, ergonomic design housed in a durable enclosure. But what truly sets the M5Stack Dial apart is its wealth of integrated features: a vibrant 1.28-inch circular TFT touch display, an onboard RFID reader for secure interactions, and the flexibility to seamlessly integrate into a multitude of applications.
This week, we shine the spotlight on this remarkable device, showcasing why it’s not just a tool but a gateway to endless possibilities. Whether you’re a hobbyist, maker, or professional, the M5Stack Dial’s intuitive design and advanced functionality make it the perfect addition to your next big project.

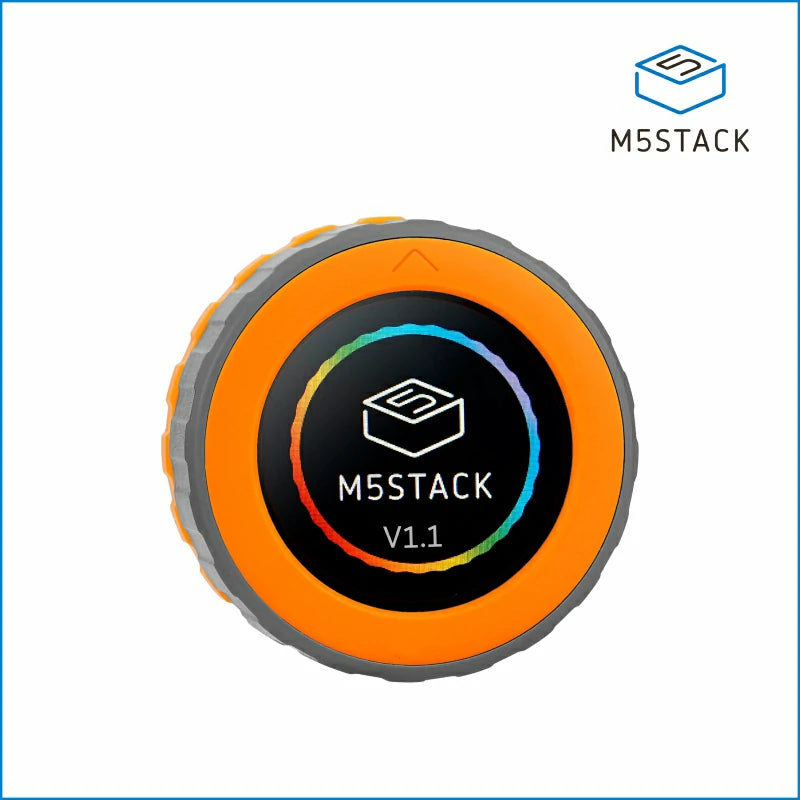

What is the M5Stack Dial?
The M5Stack Dial is a fully programmable rotary device designed to revolutionize human-machine interfaces. Featuring a 1.28-inch circular TFT touch screen, this compact yet powerful tool provides an intuitive and engaging way to interact with your projects. Its ergonomic design ensures it fits comfortably in any environment, whether it’s a smart home, a commercial application, or an industrial setting.
Hardware Features
At the heart of the M5Stack Dial lies the ESP32-S3 microcontroller, a robust and efficient processor celebrated for its low power consumption and high performance. This microcontroller forms the backbone of the device, offering advanced capabilities like Wi-Fi and Bluetooth connectivity. Complementing the ESP32-S3 are a host of integrated components that enhance the device's functionality:
- Rotary Encoder: Provides precise input and control.
- RFID Reader: Enables seamless interaction with RFID cards and tags for secure access and identification.
- RTC Circuit: Maintains accurate timekeeping for time-sensitive applications.
- Buzzer: Offers auditory feedback for user interactions.
- Under-Screen Buttons: Additional tactile input options for enhanced control.
Programming Compatibility
The M5Stack Dial is fully compatible with popular development platforms such as Arduino and ESP-IDF. This wide-ranging compatibility empowers developers to tap into a rich ecosystem of tools, libraries, and resources, making it easy to bring creative projects to life. Whether you’re building a smart home controller or a sophisticated industrial system, the M5Stack Dial offers unparalleled flexibility and ease of use.
Why is the M5Stack Dial Awesome?
The M5Stack Dial stands out as an exceptional device for creators, developers, and innovators. Packed with advanced features and designed with usability in mind, it offers an unrivaled combination of functionality, versatility, and style.
Highlight Standout Features
At the core of the M5Stack Dial is the powerful ESP32-S3 microcontroller, which brings together essential features for modern projects:
- Wi-Fi and Bluetooth Connectivity: Seamlessly integrate the device into connected ecosystems.
- Dual-Core Processing: Ensure fast and efficient performance, even for complex tasks.
- 8MB Flash Memory: Ample storage for applications, especially those with graphical interfaces.
- Hardware Security: Safeguard your projects with advanced security features.
The touch-sensitive rotary encoder delivers precise input, allowing users to adjust settings or navigate interfaces with ease. Additionally, the 1.28-inch circular TFT display with a 240px x 240px resolution provides vibrant visuals and dynamic feedback, elevating the user experience. The built-in RFID reader adds another layer of interactivity, enabling secure access control or other tag-based applications.
Design Benefits
The M5Stack Dial is engineered for practicality and durability. Its compact size and robust housing make it suitable for use in various environments, from smart homes to industrial facilities. The device is designed to seamlessly integrate with other systems, enhancing versatility and usability across diverse applications.
Practical Perks
In addition to its feature-packed design, the M5Stack Dial supports USB-C connectivity, ensuring fast and reliable power delivery and data transfer. This modern convenience makes it easier than ever to incorporate the device into your projects, whether stationary or portable.
Features and Specifications
The M5Stack Dial ESP32-S3 is packed with advanced features and powerful components, making it a highly versatile tool for a wide range of applications. Here’s a closer look at its core specifications and user-centric design.
Core Specifications
- Processor: Powered by the ESP32-S3, a dual-core microcontroller running at 240MHz, with 512KB SRAM and 8MB flash memory for smooth and efficient performance.
- Display: A 1.28-inch round TFT screen with a 240x240 resolution, driven by the GC9A01 screen driver, delivering crisp visuals and vibrant colors.
- Touch Screen: Equipped with a capacitive touch panel using the FT3267 driver, enabling precise and responsive interactions.
- Connectivity: Wi-Fi and Bluetooth capabilities ensure seamless integration into connected systems and IoT ecosystems.
- Power Options: Supports a wide input voltage range of 6V–36V and features built-in charging for battery-powered operation, offering flexibility for various use cases.
- Additional Features: Includes an RFID reader for secure access, a buzzer for audible feedback, GPIO extensions for peripheral connectivity, and an RTC circuit for accurate timekeeping.
User-Friendly Design
The M5Stack Dial is designed with user experience in mind, combining advanced functionality with intuitive usability:
- Rotary Encoder Feedback: Provides highly interactive and precise input, ideal for navigation and control in various applications.
- Energy Efficiency: Optimized for standby and operational power efficiency, ensuring reliable performance in both portable and stationary setups.
With its robust features and thoughtful design, the M5Stack Dial is a game-changer in the realm of human-machine interfaces.
Applications of the M5Stack Dial
The versatility and feature-rich design of the M5Stack Dial ESP32-S3 open up a world of possibilities across various domains. Whether you’re automating a home, streamlining industrial processes, or exploring creative endeavors, this innovative device adapts seamlessly to your needs.
Smart Home Control
The M5Stack Dial serves as a centralized control hub for smart home systems. It can be used to manage lighting, air conditioning, and security systems with ease. A standout use case is the “Dad AC Interface,” which leverages RFID access to restrict temperature adjustments to authorized users—ensuring peace of mind and optimal climate control.
Industrial Automation
In industrial settings, the M5Stack Dial shines as a compact and reliable interface for monitoring and controlling machinery. Its precision and versatility make it ideal for tasks such as robotic system control, where programmable inputs allow for efficient and accurate adjustments in complex workflows.
Creative Projects
For the creatively inclined, the M5Stack Dial offers exciting opportunities in music and multimedia production. It can function as a MIDI controller for creating dynamic compositions or as a digital synthesizer knob for manipulating physical circuits or software-based sound modules. Its touch-sensitive rotary encoder and vibrant display enhance both form and function in creative applications.
Miscellaneous Ideas
The M5Stack Dial’s portable design and battery-powered operation enable it to be used in a variety of on-the-go applications. Whether it’s a custom remote control, an innovative teaching tool, or a unique user interface for experimental projects, this device is only limited by your imagination.
Why Should You Choose the M5Stack Dial?
The M5Stack Dial ESP32-S3 sets itself apart as a device that blends innovation, versatility, and practicality. Whether you're a seasoned developer or a curious beginner, here’s why this rotary knob deserves a spot in your toolkit:
Cutting-Edge Technology
The M5Stack Dial is a technological powerhouse, integrating advanced features that are rarely found in a device of its size and form factor. From its dual-core ESP32-S3 processor to its RFID reader and capacitive touch screen, it offers tools that elevate your projects to the next level.
Flexibility and Scalability
With support for GPIO expansion, the M5Stack Dial allows for seamless integration with a wide range of peripherals. Whether you’re connecting sensors, actuators, or additional displays, the device provides the scalability needed to meet the demands of increasingly complex projects.
Affordability and Accessibility
Offering high-value functionality at a competitive price point, the M5Stack Dial makes cutting-edge technology accessible to all. Its comprehensive feature set eliminates the need for additional components, ensuring cost efficiency for developers and makers.
User-Centric Design
Designed with users in mind, the M5Stack Dial boasts an intuitive interface, an ergonomic build, and robust software support for platforms like Arduino and ESP-IDF. These elements combine to create a seamless development experience, empowering users to bring their ideas to life effortlessly.
The M5Stack Dial isn’t just a tool; it’s a gateway to endless possibilities, delivering cutting-edge technology, exceptional value, and user-focused design in a compact and versatile package.
Wrapping Up
The M5Stack Dial ESP32-S3 is a remarkable device that redefines the way we interact with technology. From its cutting-edge features like the ESP32-S3 processor, vibrant touch display, and RFID capabilities to its versatility across smart home control, industrial automation, and creative projects, the M5Stack Dial proves to be a powerful tool for makers, developers, and professionals alike.
Its intuitive interface, compact design, and robust compatibility with platforms like Arduino and ESP-IDF make it accessible and easy to use. Whether you’re designing a centralized smart home system, crafting a complex robotic controller, or exploring innovative musical applications, the M5Stack Dial offers endless possibilities to bring your ideas to life.
Ready to take your projects to the next level? Explore the M5Stack Dial today! You can find it in the Electromaker shop. Don’t miss the chance to unlock its full potential in your next big project.
We’d love to hear from you! How would you use the M5Stack Dial in your creations? Share your ideas in the comments and join the conversation. Let’s inspire each other to innovate and create!
