Silent Switcher 3: Analog Devices’ Solution for Low-Frequency Noise Control

At Electronica 2024, Analog Devices introduced the latest in power technology: Silent Switcher 3, a solution designed to tackle the challenge of low-frequency noise in power-sensitive applications. Engineers working on noise-sensitive designs often struggle with balancing efficiency and noise reduction, and conventional methods, like Low Dropout Regulators (LDOs), can increase complexity and reduce power efficiency.

Silent Switcher 3 changes the game by delivering a single-component solution that minimizes low-frequency noise without sacrificing efficiency, addressing a critical need in power design. In this article, we explore how Silent Switcher 3 offers a compact and efficient alternative to traditional multi-stage setups, making it ideal for engineers focused on achieving both simplicity and performance in their designs.

The Challenge of Low-Frequency Noise in Power Applications

Power supply noise, especially at low frequencies, can be a significant hurdle in designing stable electronic systems. Low-frequency noise tends to interfere with sensitive components, impacting the overall performance and stability of a device. Engineers often turn to Low Dropout Regulators (LDOs) to address this issue, as they offer effective noise reduction. However, using LDOs can add complexity to the design process and reduce power efficiency, which is especially problematic in applications where space and energy are at a premium.

Analog Devices understands these challenges and developed Silent Switcher 3 to help engineers overcome them. Unlike traditional approaches that combine a buck converter and LDO for noise suppression, Silent Switcher 3 provides a streamlined, single-component solution. This innovative design simplifies the architecture, enhances efficiency, and ultimately allows for more compact and cost-effective systems.

Silent Switcher 3 – A Single-Component Solution

Silent Switcher 3 represents a breakthrough for power designers looking to simplify their circuits without compromising on performance. By combining the benefits of a switching regulator and low-noise capabilities, Silent Switcher 3 eliminates the need for a multi-stage buck-LDO solution. This single-component design offers several advantages, including higher efficiency, reduced component count, and ease of integration into compact applications.

For engineers, this means less time spent on complex designs and more focus on achieving optimal power performance. Silent Switcher 3 maintains high efficiency and low noise levels, making it ideal for noise-sensitive applications where both simplicity and performance are key priorities.

Demo Highlights at Electronica 2024

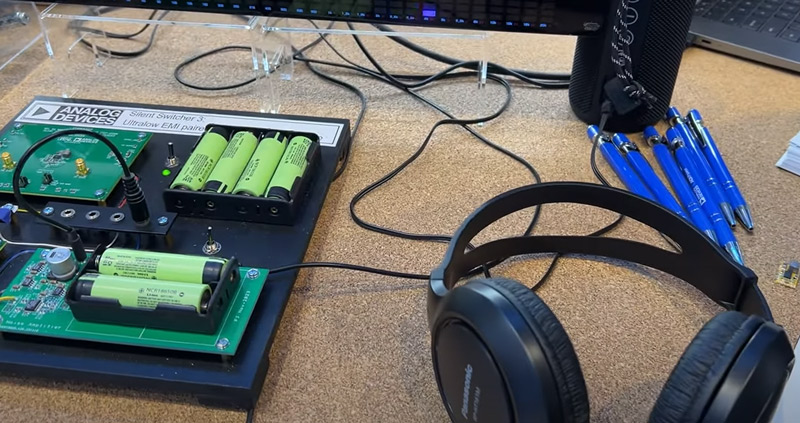

At Electronica 2024, Analog Devices showcased Silent Switcher 3 with a live demo, allowing attendees to experience its noise-reducing capabilities firsthand. The setup included headphones and multiple power regulation solutions, enabling a direct comparison of noise levels across different regulator types.

The demonstration featured four configurations: a typical switcher from a competitor, the Silent Switcher 3, a conventional LDO, and a high-performance LDO from Analog Devices. Attendees could hear a marked difference as they switched between these configurations. Notably, Silent Switcher 3 outperformed traditional switchers and even some LDOs in terms of audible noise reduction, providing a quieter and more efficient solution without the need for a complex multi-stage setup.

This demo highlighted Silent Switcher 3’s superior noise performance and ease of integration, offering engineers a tangible example of its benefits in real-world applications.

Benefits of Silent Switcher Technology

Analog Devices’ Silent Switcher technology delivers distinct advantages for noise-sensitive applications where efficiency and compact design are essential. The Silent Switcher 3, designed for high efficiency and ultralow noise, achieves up to 96% efficiency, making it a reliable choice for applications that require both performance and energy savings.

Key benefits of Silent Switcher technology include:

• High Efficiency: Operating at up to 96% efficiency, Silent Switcher solutions maximize power performance while minimizing losses.
• Ultralow Noise: Silent Switcher’s noise cancellation design reduces EMI, enhancing system stability and lowering output ripple.
• Compact Footprint: By reducing the need for multiple components, Silent Switcher technology simplifies design and saves valuable space, ideal for compact systems.
• Flexible Power Design: Supporting a wide range of input voltages and load currents, Silent Switcher technology suits diverse applications, from automotive and healthcare to industrial and data center environments.

With Silent Switcher 3, Analog Devices addresses the specific needs of modern power applications, offering a single-component solution that combines simplicity, efficiency, and low noise.

For more details on Silent Switcher 3 and how it can benefit your designs, visit the Analog Devices Silent Switcher Technology Solutions page.
