Seeedstudio Xiao RA4M1 Voltage Controlled Oscillator: Affordable, Modular Synth Power

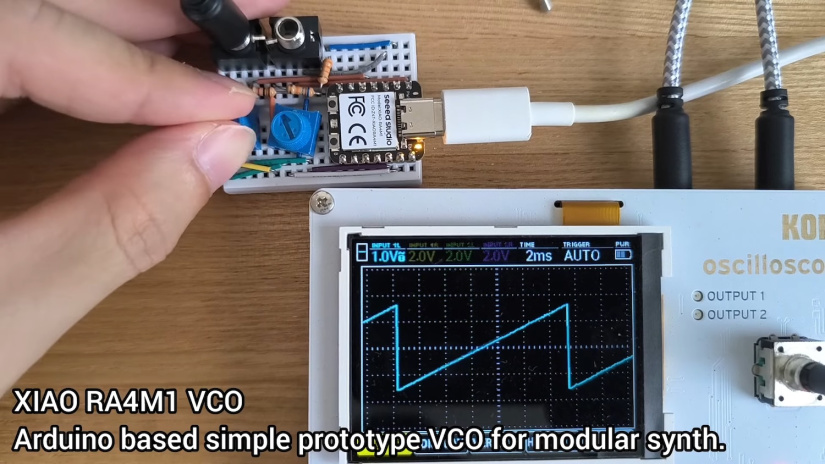

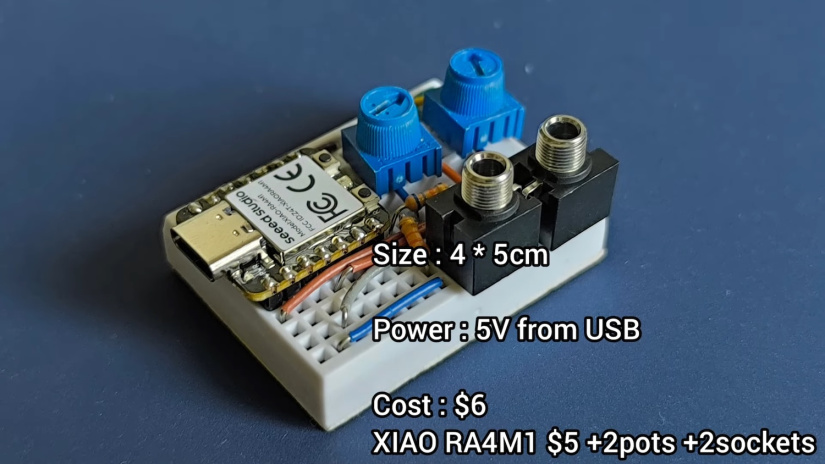

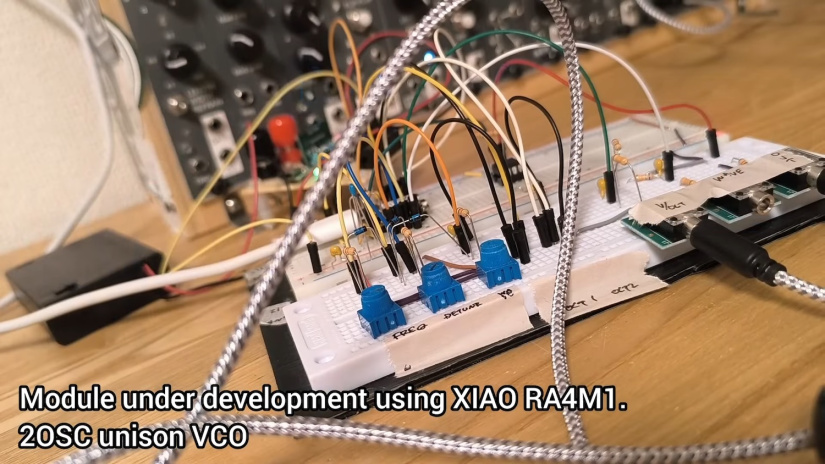

The Seeedstudio Xiao RA4M1 Voltage Controlled Oscillator (VCO) is a powerful yet affordable solution for anyone looking to build modular synthesizers. This project leverages the Xiao RA4M1 board, which is based on the Renesas microcontroller, the same one used in the popular Arduino Uno R4. The result is a versatile and budget-friendly platform for creating a fully functional VCO.

What makes this project stand out is the combination of performance and cost-efficiency. The Xiao RA4M1 offers the precision and power required for modular synthesizer setups at a fraction of the price of commercial alternatives, making it an ideal choice for enthusiasts on a budget.

The overall goal of the project is to create a digital voltage-controlled oscillator with the flexibility to adjust frequency and waveforms while maintaining the modular capabilities essential to synth projects. This affordable VCO solution provides a perfect entry point for makers looking to dive into the world of modular synth building.

The Idea Behind the Project

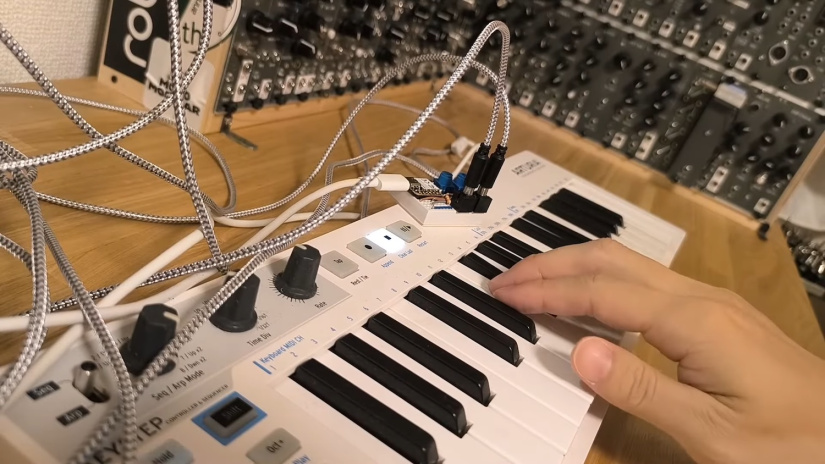

The Seeedstudio Xiao RA4M1 VCO project was created by HAGIWO, a well-known YouTuber from Japan who has been designing modular Eurorack synthesizer parts for years. HAGIWO’s channel focuses on using low-powered microcontroller boards, like Arduino, to build functional and budget-friendly synthesizer modules. His approach to DIY modular synth building has earned him a strong following in the maker community, as he consistently demonstrates how to create powerful tools at a fraction of the commercial cost.

The Seeedstudio Xiao RA4M1 is a perfect fit for modular synthesizer projects due to its combination of powerful features and cost-effectiveness. Using the same Renesas microcontroller found in the Arduino Uno R4, the Xiao RA4M1 offers plenty of processing power for generating digital audio signals while keeping the price accessible to hobbyists. This makes it an excellent choice for anyone looking to build their own modular synthesizer without breaking the bank.

Modular synthesizers have been growing in popularity among makers and music enthusiasts due to the creative possibilities they offer. Building a system from the ground up, with customizable modules and features, allows users to craft a unique sound palette. The DIY aspect also provides the satisfaction of creating something personalized and functional, all on a budget. HAGIWO’s Seeedstudio Xiao RA4M1 VCO project taps into this trend, making modular synth building more accessible to a broader audience.

Key Features of the Build

The Seeedstudio Xiao RA4M1 VCO is packed with technical features that make it an excellent choice for DIY synthesizer builders. One of the standout components is the 12-bit DAC (Digital-to-Analog Converter), which provides high precision for digital audio output. This level of resolution ensures that the sound generated is smooth and accurate, an essential quality for any modular synthesizer.

Two main controls give users flexibility in shaping their sound. The first is a knob for adjusting frequency, which changes the pitch of the note being generated. The second control adjusts the wave shape, allowing users to modify the waveform of the sound output. These two controls provide a wide range of tonal possibilities, giving the user creative freedom in crafting their sound.

The Xiao RA4M1 board also includes outputs for both audio and control voltage (CV), which are crucial for integrating with other modular synthesizer components. The CV output allows the VCO to interface with other modules in a synth setup, making it fully compatible with most modular systems. This modularity, combined with the audio output, makes the Seeedstudio Xiao RA4M1 a versatile tool for any synth enthusiast.

Additionally, the system is designed to support a voltage range of 0-5V, ensuring compatibility with a wide variety of modular synthesizer setups. This flexibility, combined with the affordability of the Xiao RA4M1, makes it a compelling option for DIY synth builders looking to create a fully functional, customizable VCO without the high costs typically associated with modular synth components.

Challenges and Solutions

As with any DIY electronics project, the Seeedstudio Xiao RA4M1 VCO build came with its own set of challenges. One of the primary hurdles HAGIWO faced was working with the 12-bit DAC. While the DAC offers great precision for audio output, it requires careful control to achieve the desired audio quality, especially when generating complex waveforms. Ensuring the smoothness of the sound and minimizing distortion were key concerns during the project.

Working within the limitations of a low-cost microcontroller like the Xiao RA4M1 can also present technical challenges, particularly in terms of power and output quality. Lower-cost microcontrollers often come with trade-offs, such as limited processing power or reduced output capabilities, which can affect the performance of a voltage-controlled oscillator. However, HAGIWO skillfully navigated these limitations to produce a high-quality VCO.

HAGIWO employed clever software and hardware solutions to overcome these challenges. One such solution involved writing custom code to ensure precise wave shaping, allowing for better control over the output signal. This attention to detail helped maximize the potential of the 12-bit DAC, resulting in a VCO that delivers high-quality sound while remaining cost-effective. By leveraging the strengths of the Xiao RA4M1 and fine-tuning both the software and hardware, HAGIWO was able to create a reliable and functional VCO for modular synthesizers.

Wrapping Up

The Seeedstudio Xiao RA4M1 VCO project stands as an impressive example of how affordable microcontroller-based solutions can offer high functionality and flexibility in modular synthesizer builds. With the Xiao RA4M1’s powerful 12-bit DAC and versatile controls for pitch and wave shape, it provides DIY synth enthusiasts with a cost-effective way to create a fully functional VCO without sacrificing sound quality.

If you're interested in more inspiring projects that combine technical expertise with creative innovation, subscribing to HAGIWO’s YouTube channel is a must. His channel continues to provide valuable insights and projects that make modular synth building both accessible and enjoyable for all levels of experience.
