Seeed Studio Round Display: Compact Meets Versatile for Makers
In this episode of Product of the Week, we take a look at the Seeed Studio Round Display for Xiao boards, a perfect solution for wearables, IoT devices, and control interfaces. The Seeed Studio Round Display features a 240x240 resolution, support for 65,000 colors, and built-in extras like an RTC battery, charging chip, and TF card slot!
WIN a Seeed Studio Round Display for XIAO! Tell us in the comments of this video what you would make with the display and use the hashtag #Seeed. A winner will be selected on 3rd December 2024.
The Seeed Studio Round Display offers not just a sleek, compact design but also a wealth of functionality. Tailored for IoT and wearable applications, it simplifies integration with XIAO development boards, giving creators a robust platform to bring their ideas to life.
What is the Seeed Studio Round Display?

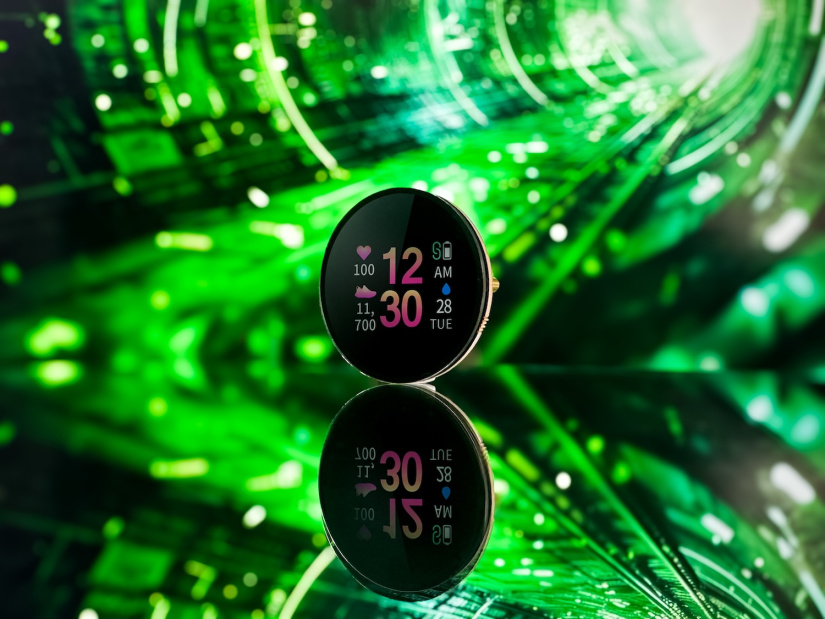

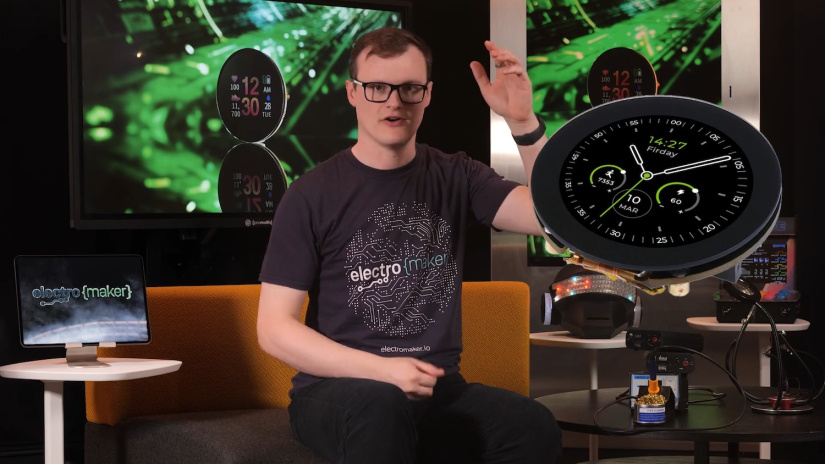

The Seeed Studio Round Display is a compact, 39mm circular display featuring capacitive touch technology. Designed with wearables and compact IoT projects in mind, it combines practicality with sleek aesthetics, making it a standout addition to any maker's toolkit.
What sets this display apart is its high compatibility with all XIAO development boards. Whether you're a seasoned maker or a beginner, the Seeed Studio Round Display offers seamless integration, ensuring a smooth development process.
Its onboard features enhance its functionality significantly, including:
- RTC Battery Holder: Supports CR927 batteries, enabling reliable timekeeping for projects requiring precise scheduling or timestamps.
- Expandable Memory: A TF card slot accommodating up to 32GB FAT, ideal for projects needing additional storage for data or multimedia.
- Power Connection: A JST 1.25 connector designed for 3.7V Li-ion batteries, ensuring a consistent and portable power supply.
These features, combined with its compact form factor, make the Seeed Studio Round Display a versatile tool for an array of applications.

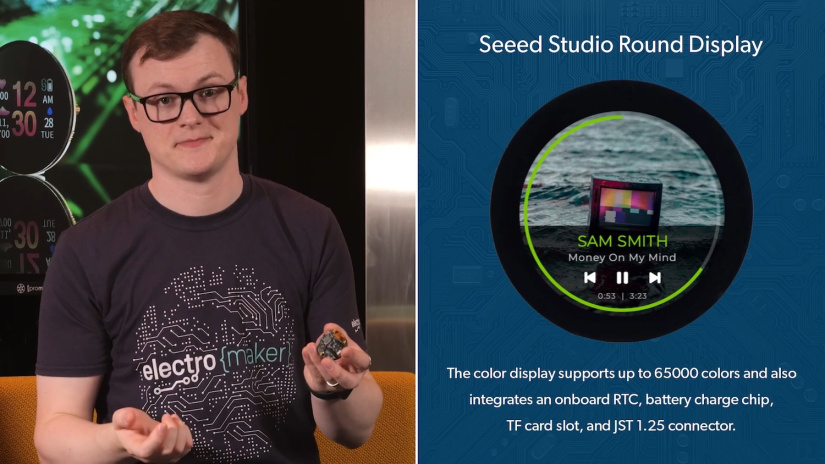

Key Features and Specifications
The Seeed Studio Round Display is packed with features and specifications that make it an ideal choice for wearable and compact device projects. Here's a closer look at what this remarkable display has to offer:
Screen Attributes
- 1.28-inch Round Capacitive Touch Screen: Designed for precise touch input, making it perfect for interactive applications.
- 240x240 Resolution: Delivers sharp and clear visuals with up to 65K colors, offering vibrant and detailed graphics.
Power and Hardware
- Power Supply: Operates via a USB Type-C connection, consuming only 35mA at 5V, ensuring efficiency and reliability.
- Integrated Charge Chip: Supports a charge current of approximately 485mA, making it easy to power and recharge with compatible batteries.
- Expandable Memory: Includes a TF card slot that supports storage capacities of up to 32GB FAT, ideal for data-intensive projects.
Design Elements
- Compact, Watch-Sized Design: Measuring just 39mm in diameter, it's perfectly suited for wearable technology and space-limited applications.
- Plug-and-Play Usability: Fully exposed pins mean no soldering is required, allowing for quick and hassle-free integration with XIAO boards.
Other Peripherals
- Real-Time Clock: Comes with an integrated RTC for accurate timekeeping in projects requiring precision scheduling.
- Power Protection Circuit: Ensures stability and protects against damage from power-related issues.
- Fully Exposed Pins: Allows seamless integration with XIAO boards, offering flexibility for various project needs.
With these advanced features and specifications, the Seeed Studio Round Display is designed to cater to the needs of innovative makers and developers.
Why is the Seeed Studio Round Display Unique?
The Seeed Studio Round Display stands out in a world where square and rectangular screens dominate the market. Its circular design not only sets it apart visually but also opens up new possibilities for applications that demand innovation and elegance. This distinctive shape is particularly appealing for wearables and compact IoT devices, where space and aesthetics are key considerations.
The versatility of this display shines in its wide range of applications. From smartwatches and fitness trackers to compact IoT sensors and control panels, the Seeed Studio Round Display is perfectly suited for wearable and space-limited projects. Its size and design make it a natural fit for projects requiring both functionality and style.
Adding to its uniqueness is the ease of programming. Thanks to its compatibility with XIAO development boards and support for the Arduino IDE, setting up and customizing the display is stress-free. Makers can quickly get started on their projects, leveraging the seamless integration and straightforward development environment.
The Seeed Studio Round Display's combination of a visually striking design, unmatched versatility, and effortless usability make it a unique and valuable tool for creators looking to innovate in the wearable and IoT space.
Potential Applications
The Seeed Studio Round Display is a versatile tool that opens the door to a myriad of innovative applications. Its compact size, touch capabilities, and robust feature set make it suitable for various creative and practical uses. Here are some of the most exciting possibilities:
Wearables
- Smartwatches: Create sleek, interactive touch displays that combine aesthetics with functionality, perfect for wearable timepieces and gadgetry.
- Fitness Trackers: Design devices capable of monitoring health metrics with a vibrant, user-friendly interface.
IoT Projects
- Internet-Enabled Thermostats: Develop compact, touch-enabled controls for managing environmental sensors and smart home devices.
- Wall-Mounted Smart Controls: Build IoT interfaces for controlling lighting, climate, or security systems in a visually appealing form factor.
Innovative Dashboards
- Vehicle Control Panels: Replace traditional knobs and buttons with touch interfaces for a modernized, streamlined user experience.
- Compact Gaming Interfaces: Use the display to create dashboards and control panels for gaming devices, offering real-time data visualization.
Creative Possibilities
- Miniature "Portal" Displays: Experiment with innovative projects such as live camera feeds through two connected screens, creating a "portal" effect for interactive displays.
The versatility of the Seeed Studio Round Display enables creators to push the boundaries of what's possible, making it an invaluable asset for wearables, IoT devices, and more imaginative applications.
Getting Started with the Seeed Studio Round Display
Setting up the Seeed Studio Round Display is a straightforward process, whether you’re a seasoned maker or just getting started. Here's how to get up and running:
Hardware Setup
- Aligning the XIAO Board: Ensure the XIAO board is properly aligned with the pins on the back of the display. The Type-C connector of the XIAO board should face the edge of the display for correct orientation.
- Avoiding Connection Issues: Double-check the alignment to prevent reverse polarity. While the display includes a power protection circuit, long-term reverse connections are not recommended.
Software Preparation
Once your hardware is ready, follow these steps to set up the software:
- Install Arduino IDE: Download and install the latest stable version of Arduino IDE for your operating system.
- Configure the IDE for XIAO: Add support for your specific XIAO board by following Seeed Studio's setup guides.
- Download Required Libraries: Install the following libraries to enable advanced display functionality:
- LVGL: A lightweight and powerful GUI library for creating stunning user interfaces.
- TFT_eSPI: Essential for driving the display and rendering graphics efficiently.
- BM8563 RTC: Needed for utilizing the onboard real-time clock capabilities.
- Install Libraries: Add the downloaded libraries to Arduino IDE by navigating to
Sketch > Include Library > Add .ZIP Libraryand selecting the library files.
With the hardware connected and software configured, you’re ready to start building interactive projects with the Seeed Studio Round Display. Whether it’s a wearable device, a dashboard, or an IoT control panel, this setup process ensures a seamless beginning to your creative journey.
Enriching Your Projects
The Seeed Studio Round Display isn't just a tool—it's a gateway to enhancing your projects with vivid visuals, intuitive interfaces, and expanded functionality. Here's how you can make the most of its features:
Optimizing the 240x240 Resolution for Circular Displays
The 240x240 resolution is uniquely adapted to the display's circular form, offering a seamless visual experience. The pixels are distributed across the circular screen's diameter, ensuring crisp and clear imagery. This resolution allows for intricate designs, smooth animations, and precise text rendering, making it ideal for dynamic GUIs in compact devices.
Real-Life Examples of Enhanced GUIs
- Smartwatch Interfaces: Create visually appealing and interactive watch faces with vibrant color schemes and responsive touch capabilities.
- Compact Dashboards: Design dashboards with real-time data visualization for IoT applications or gaming setups, utilizing the full-color spectrum for clarity and engagement.
- Control Panels: Develop user-friendly control panels with animated icons and touch-based navigation for modern IoT devices.
Leveraging the RTC and TF Card Slot
The integrated RTC (Real-Time Clock) chip is a game-changer for projects requiring accurate timekeeping. Whether you're building a clock, a scheduler, or a time-stamped data logger, the RTC ensures precision and reliability.
The TF card slot, supporting up to 32GB of expandable storage, is perfect for storing large datasets, multimedia files, or logging sensor data over extended periods. This functionality is invaluable for applications like environmental monitoring or multimedia interfaces in wearables.
With these features at your disposal, the Seeed Studio Round Display empowers you to take your projects to the next level, combining functionality with innovation for truly enriched creations.
Wrapping Up
The Seeed Studio Round Display is a remarkable tool that combines compact design, powerful features, and user-friendly integration. Its 1.28-inch circular screen, vibrant 240x240 resolution, and compatibility with XIAO boards make it an exceptional choice for wearable devices, IoT projects, and creative innovations.
With features like an integrated real-time clock, expandable memory, and touch capabilities, this display is not just versatile but also a delight to work with. Whether you're a seasoned maker or a newcomer, the Seeed Studio Round Display opens up endless possibilities for creating interactive and visually appealing projects.
So why wait? Get your Seeed Studio Round Display today and unlock new possibilities for your XIAO projects! Dive into the world of compact, innovative designs and make your creative visions a reality.
