Espressif ESP32-S3-BOX-3B: Your All-in-One Solution for Rapid IoT Prototyping
The ESP32-S3-BOX-3B is a cutting-edge development kit crafted by Espressif, a leading name in IoT technology and the brains behind popular SoCs like the ESP8266 and ESP32. Known for pushing the boundaries of IoT innovation, Espressif has designed the ESP32-S3-BOX-3B, also known as The Box, to be a versatile, modular tool that offers both form and function. This kit opens up a world of possibilities, enabling developers to build projects that span across IoT, edge IoT, and Industrial IoT (IIoT) applications with remarkable ease.
Equipped with an extensive suite of features, The Box is tailored to meet the demands of today’s diverse IoT landscape. Whether you’re a hobbyist looking to automate a smart home setup or a professional engineer developing advanced IIoT systems, the ESP32-S3-BOX-3B provides the flexibility and power required to bring your vision to life. From compact smart devices to complex industrial solutions, this development kit allows you to create highly connected, intelligent systems.
Understanding the ESP32-S3-BOX-3B: Design, Purpose, and Audience
The ESP32-S3-BOX-3B, is a unique development kit that stands out for its versatility and modular design. Espressif has engineered The Box to be a highly customizable platform, offering a compact, visually appealing enclosure that houses the powerful ESP32-S3 SoC. This design not only enhances functionality but also balances aesthetics and performance, making it a practical yet sophisticated choice for developers seeking more from their IoT projects.
In terms of design and purpose, The Box is built to adapt to a wide range of applications. Its modular construction allows users to add, modify, or scale components as needed, enabling endless possibilities for creating unique, tailored projects. With the ESP32-S3 at its core, The Box delivers advanced processing power and extensive connectivity options, making it ideal for building anything from simple devices to complex, multi-functional IoT systems. This modular approach promotes creativity, allowing developers to experiment, prototype, and innovate without limitations.
Audience Appeal is another significant factor that sets The Box apart. Designed with a broad user base in mind, The Box caters to everyone from hobbyists and makers to professional engineers and developers. Its user-friendly, scalable nature means that beginners can start with basic projects, while seasoned professionals can utilize its advanced capabilities for sophisticated applications. The Box is especially suitable for rapid prototyping, smart home integrations, AI-driven applications, and industrial IoT (IIoT) development, offering a one-stop solution for diverse project needs.
Whether you’re working on AI-enhanced devices, home automation, or industrial systems, the ESP32-S3-BOX-3B is equipped to handle it all, providing both flexibility and power. This makes it a valuable tool for anyone looking to bring intelligent, connected projects to life in a streamlined and efficient way.
Key Features and Capabilities of the ESP32-S3-BOX-3B
The ESP32-S3-BOX-3B is packed with a range of features that make it an exceptional tool for IoT projects of all scales. Below is a breakdown of its core capabilities, designed to provide both performance and flexibility for developers and makers:
ESP32-S3 Core Features
- Powered by the ESP32-S3 SoC, featuring Wi-Fi and Bluetooth 5 (LE) connectivity, ensuring reliable communication and integration with IoT systems.
- Includes up to 8MB of PSRAM, which expands support for graphics, AI processing, and other complex applications, allowing for the creation of more sophisticated projects.

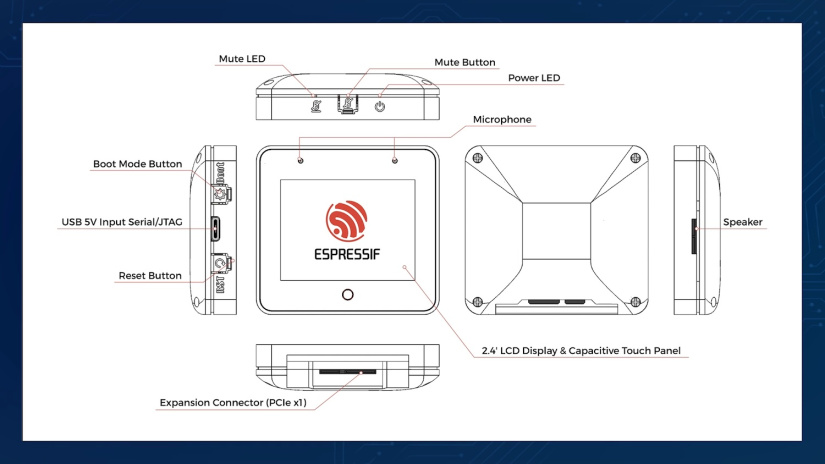

Built-in Components
- 2.4-inch 320 x 240 SPI touchscreen for building interactive user interfaces and enhancing user experience in IoT applications.
- Dual digital microphones that enable robust voice recognition, making it ideal for voice-controlled applications and hands-free operation.
- Speaker for audio output, supporting multimedia projects and providing audio feedback for interactions.
- High-density PCIe connector for advanced hardware expansion, allowing users to add additional modules or peripherals as needed.

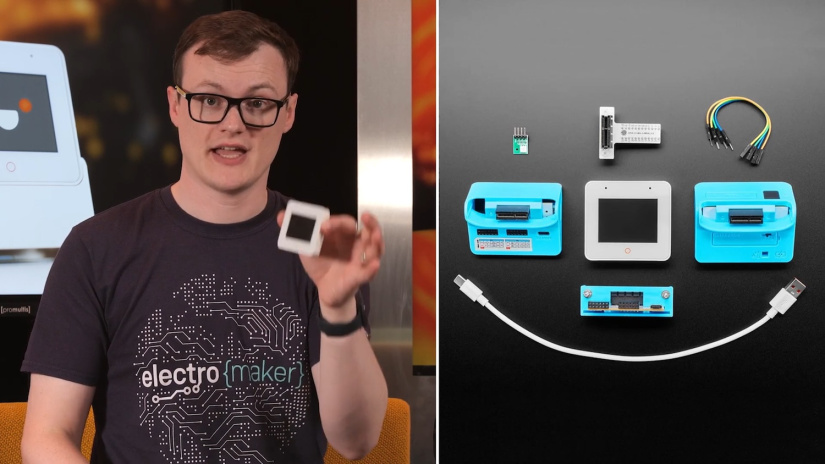

Accessories in the Kit
- Dock: Provides a stable stand and facilitates expanded hardware connections, making it easy to set up and use The Box in various configurations.
- Sensor Board: Equipped with temperature, humidity, IR, and radar sensors, making it ideal for environmental monitoring and data collection projects.
- Breadboard Adapter: Enables hands-on prototyping by connecting The Box to a standard breadboard, perfect for electronics experiments and testing.
- USB-C Power Cable: Ensures modern connectivity and reliable power for uninterrupted operation.
- RGB LED Module: Includes Dupont wires for easy connection, providing a versatile lighting component for creative projects.
Software Compatibility
The ESP32-S3-BOX-3B is highly versatile in its software support:
- Matter compatibility for seamless IoT integration, making it easy to connect with and control smart devices.
- Compatible with Espressif’s ESP RainMaker platform, enabling users to configure GPIO and customize voice commands through a mobile app, offering remote management and control for IoT projects.
With these comprehensive features, the ESP32-S3-BOX-3B provides a powerful platform that can support a wide range of applications, from basic IoT projects to complex AI and IIoT setups.
Why the ESP32-S3-BOX-3B Stands Out
The ESP32-S3-BOX-3B is a remarkable tool for IoT development, offering several advantages that make it an ideal choice for developers seeking both functionality and ease of use. Here are two key reasons why The Box stands out in the world of IoT:
Enhanced Processing and Storage
One of the most significant features of the ESP32-S3-BOX-3B is its advanced processing power, supported by integrated PSRAM. This allows developers to build more sophisticated applications that require higher memory capacity, such as real-time graphics or on-device AI processing. With up to 8MB of PSRAM, The Box can handle data-intensive tasks and complex processing requirements, making it possible to implement advanced functionalities that were previously difficult to achieve on compact hardware. This expanded memory opens up new possibilities for creating responsive, powerful IoT devices with capabilities such as embedded AI, enhanced graphics, and more.
Comprehensive Kit for IoT and IIoT Development
The ESP32-S3-BOX-3B provides everything a developer needs to get started with IoT and IIoT projects. Its comprehensive feature set includes support for offline voice wake-up and speech recognition, enabling hands-free control and interaction. The inclusion of multiple sensors and peripherals—such as temperature, humidity, IR, and radar sensors—eliminates the need for additional equipment, making The Box a fully functional platform right out of the package. This robust combination of components and capabilities makes it accessible for rapid prototyping and project development, giving developers a versatile and efficient toolkit for exploring a wide array of IoT applications.
Together, these features make the ESP32-S3-BOX-3B a standout choice for IoT innovation, supporting everything from creative DIY projects to professional-grade industrial applications.
Potential Applications of the ESP32-S3-BOX-3B
The ESP32-S3-BOX-3B opens up a wealth of possibilities for innovative and practical applications, making it suitable for a variety of creative and functional projects. Below are some standout ways users can leverage The Box, each highlighting a unique capability of this powerful development kit:
Smart AI Assistant
The Box can be transformed into a desktop AI helper, combining ESP32-based voice commands with online AI services like OpenAI APIs. This setup allows The Box to process spoken requests, making it a hands-free coding assistant or mini chatbot that can respond to commands, provide helpful information, or answer questions. This type of application is especially useful for developers or individuals looking for a convenient, voice-activated assistant to support daily tasks without needing to run software on their main computer.
Smart Home Hub
With its versatile features, The Box is an excellent choice for building a smart home hub. It can manage various home automation systems, such as lighting, thermostats, and security devices, all from a single interface. Voice-activated commands enable seamless control, while the built-in touchscreen serves as a visual interface for adjusting settings when voice control might not be practical. This makes The Box a central control point for a connected home, providing both ease of use and functionality for home automation enthusiasts.
Industrial IoT (IIoT) Controller
The ESP32-S3-BOX-3B is also highly suited to industrial IoT applications, where it can monitor the status of machinery, report sensor data, and even control devices remotely. Its robust connectivity options and portability make it ideal for use in both static and mobile scenarios, such as robotics or warehouse management. For IIoT environments, The Box can play a critical role in real-time monitoring and control, ensuring operational efficiency and providing valuable insights through data collection and analysis.
These applications demonstrate the flexibility of the ESP32-S3-BOX-3B, showcasing its potential to support projects ranging from personal smart assistants to large-scale industrial solutions.
Setting Up the ESP32-S3-BOX-3B: Getting Started with Your First Project
Getting started with the ESP32-S3-BOX-3B is simple, thanks to its intuitive setup process and user-friendly interface. Here’s a quick guide to help you power up and begin exploring The Box’s capabilities.
Power and Boot
To begin, power on the device using the included USB-C cable. Once connected, The Box will automatically display a boot animation, guiding you through the initial setup. This boot sequence ensures that the device is properly configured and ready for use, setting you up for a smooth first experience with the development kit.
Quick Start Guide
After booting up, navigate through the built-in Quick Start Guide. This guide provides an overview of The Box’s basic functions, such as controlling the RGB LED, testing voice commands, and interacting with the touchscreen interface. Following this guide is a great way to familiarize yourself with the device’s core features and to start experimenting with simple commands and functions.
Firmware Update
For optimal performance, it’s recommended to update to the latest firmware using Espressif’s ESP Launchpad tool. This update ensures you have access to the newest features and bug fixes, enhancing The Box’s stability and functionality. You can check the current firmware version by navigating to the “About Us” section in the menu. Regular firmware updates are essential for maintaining peak performance and accessing any new capabilities that Espressif may release.
Customizing Commands
To further personalize your experience, use the ESP-BOX app to set up custom voice commands for specific tasks. The app enables you to define command words for actions like turning the RGB LED on or off, adjusting its colors, and more. This flexibility allows you to tailor The Box to your project’s unique needs. The app provides a straightforward interface for configuring voice commands, LED settings, and other parameters, making it easy to adapt The Box to suit your preferences and requirements.
With these initial steps, you’ll be well on your way to unlocking the full potential of the ESP32-S3-BOX-3B, ready to embark on your first IoT project with confidence.
Tips and Tricks for Optimizing Your ESP32-S3-BOX-3B Experience
Firmware and Troubleshooting
To ensure the ESP32-S3-BOX-3B operates at its best, it’s important to follow a few simple maintenance tips. First, be sure to remove the screen protector before using any microphone-dependent applications, as this can interfere with the microphone’s sensitivity and accuracy. Additionally, if you plan to switch between different docks—such as moving from the standard Dock to the Sensor Board—the device may require a reboot to properly recognize the new dock and ensure full functionality. Power-cycling The Box in these situations can help prevent any compatibility issues and keep your setup running smoothly.
Voice Recognition Tips
For those utilizing the voice recognition features, there are a few best practices to enhance the device’s responsiveness. Use short, concise voice commands for optimal results, as this can improve the accuracy of command recognition. Make sure that the microphones are free from obstructions to allow for clear sound pickup. The Box also supports a convenient wake-word feature, enabling hands-free operation. Simply say the designated wake word to activate the device, then follow with a command. For example, you might use commands like “Turn on the light,” “Set to red,” or “Play music.” Custom commands can be configured through the ESP-BOX app, providing even more flexibility in voice control and helping you tailor the experience to suit specific tasks or preferences.
By following these tips, you’ll be able to make the most out of your ESP32-S3-BOX-3B, ensuring smooth performance and an enhanced user experience.
Espressif ESP32-S3-BOX-3B - Final Thoughts
For those interested in maximizing the potential of The Box, Espressif provides extensive community resources, including a GitHub repository filled with documentation, SDKs, and project examples. This community-driven support allows users to learn, collaborate, and explore the limitless possibilities of the ESP32-S3-BOX-3B. As you embark on your IoT journey with this powerful development kit, you’ll find it to be a gateway to cutting-edge projects and a catalyst for future innovations.
