LattePanda Sigma Review: Unveiling the Ultimate Single-Board Server
Want to win a LattePanda Sigma? Find out how to enter our giveaway on this week's Electromaker YouTube Show!
The world of single-board computers has seen numerous innovations, but none as groundbreaking as the LattePanda Sigma. Designed to redefine performance benchmarks, the LattePanda Sigma is not just another board; it's a technological marvel. In this comprehensive review, we'll delve deep into its features, capabilities, and why it stands out in the crowded market.
Besides being a machine that would absolutely dominate any other single-board system out there, the LattePanda Sigma is a single-board server with a small size, plenty of I/O, and processing capabilities. While this machine can be used as a desktop system for daily activities, it makes far more sense to use it for cloud and server operations such as file sharing, backups, heavy data processing, and home entertainment systems. However, as we dive into its specs, you’ll understand why this thing is more than just a server…
Why is the LattePanda Sigma awesome?
Everyone loves a good quality latte, and pandas are adorable (albeit useless, like the Koala, smoothed brain idiot), but the LattePanda Sigma is none of these things. With its 12-core Intel i5 13th generation processor, 16GB of 6400MHz memory, and a whole range of peripherals that will make your mainstream desktop machine look like a relic, this computer is honestly like nothing I have seen before. Not only does this machine support all your favorite operating systems (as it is x86 based), but the many BIOS features make it a highly adaptable machine capable of automated tasks, and its ridiculous size along with its low thermal profile make this thing slick and discrete.
Features and specs of the LattePanda Sigma
Powerful Processor
Getting into the nitty gritty details of the LattePanda Sigma, the first feature that stands out is the 12-core Intel i5 1340P which is a 13th generation intel processor (hence, the 13 in the name). This CPU, which by the way is a mobile processor, is made up of 4 performance cores clocked at 4.6GHz, and 8 energy-efficient cores clocked at 3.4GHz. This combination of cores allows for intensive processes to be executed on the performance cores, while times of low power consumption can take advantage of the energy-efficient cores. At the same time, the i5 1340P has 12MB of cache, which provides efficient use of memory.
Stunning Graphics Capabilities

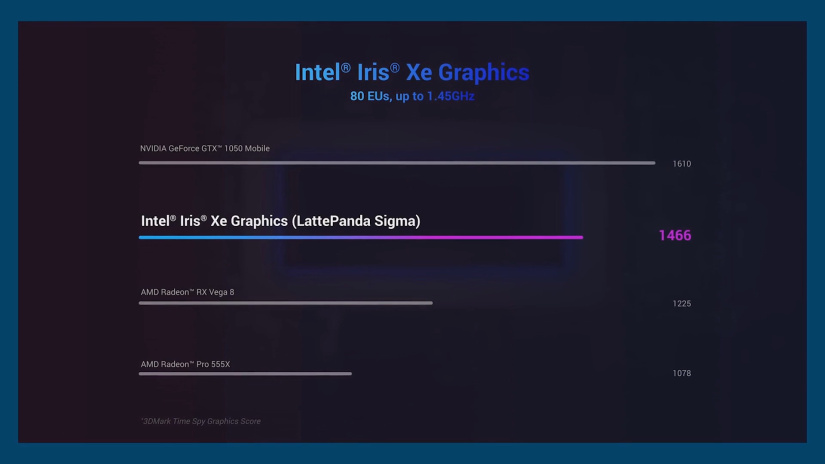

The integrated graphics processor is an Intel Iris Xe which has 80 execution units operating up to 1.45Ghz. What this translates to is that this system can easily support 4 external 4K screens, which is more than what most people need (honestly, I wouldn’t even know what to do with 4 screens, hell I still use a single laptop for all my work).
Robust Memory and Networking
With regards to memory, the LattePanda Sigma packs a whopping 16GB of RAM which is LPDDR5-6400MHz, so yes, memory constraints and speed issues won’t be a problem (unless you're running Minecraft, no idea why a game based on blocks uses up so many resources).
Networking is totally dominated by this machine thanks to its two separate ethernet ports supporting 2.5Gbps connections, giving maximum data transfer speeds of around 282MB/s. With regards to general purpose I/O, this machine integrates 2 USB 2.0 ports, 2 USB 3.2 Gen2 Type A ports, and 2 thunderbolt ports which support 40GBps each. External display ports include HDMI 2.1, DP 1.4a, and eDP 1.4 all of which support 4K (but the DP port actually supports up to 7680 x 4320, so kind of 8K).

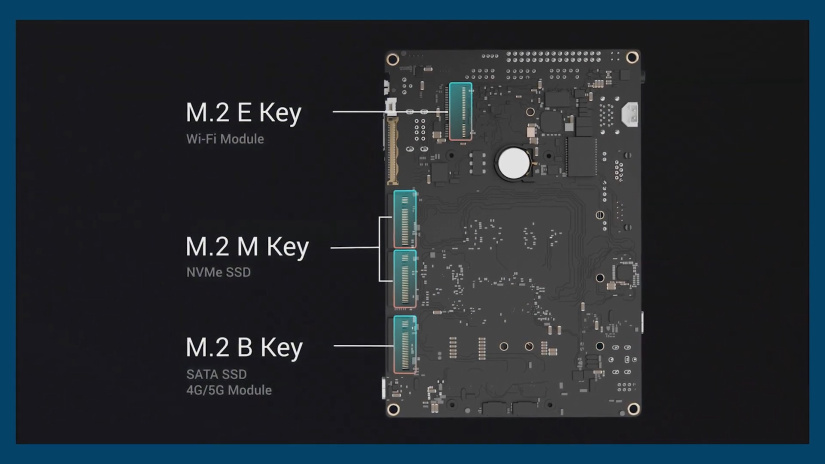

For additional expansion with memory and PCIe devices, the LattePanda integrates multiple M.2 M Key slots, an M.2 B Key, and an M.2 E Key. Interestingly, this board also comes with a micro SIM card slot, meaning that cellular connectivity is possible if a cellular module is inserted into one of the M.2 Key slots.
With regards to its size, the LattePanda measures just 146x102mm which is obscenely small when considering its capabilities, and its 44WW thermal dissipation makes this machine just an absolute beast. Oh, and thanks to its x86 instruction set, you can use most operating systems in widespread use such as Windows 10, Windows 11, and Linux.
What can you use a LattePanda Sigma for?
So, it’s obvious at this point that you will be getting one of these machines after seeing just how much of a beast it is, but what would you do with it?
Home Server and Media Delivery
Well, the first, and most obvious use for this machine, is as a home server that is responsible for backups, cloud services, and media delivery. Many modern TVs have the ability to stream files from networked resources, so this device, thanks to its 2.5Gbps ethernet ports and immense processing capabilities, can service multiple clients simultaneously. At the same time, this machine can act as a VPN so that you can connect to your internal network no matter where you are in the world.
Everyday Desktop System
Another excellent use for such a machine is as your everyday desktop system. Its ability to support up to 4 external 4K screens makes this machine ideal for multitasking, and this is only further proved by its 12-core CPU. For example, one screen can be configured for word processing, another for web browsing, the third for picture editing, and the fourth for whatever other activities you would want. At the same time, the numerous USB connections and PCIe expansion slots give you the ability to add extra peripherals, external drives, and interfaces.
Automation and Advanced Applications
Finally, this board could very well be useful in automation and autonomous systems. The immense performance capabilities of the LattePanda Sigma in combination with its large (and fast) RAM make it a candidate for machine learning. In applications where training models are needed, the use of a cellular modem and SIM card could give the LattePanda Sigma a connection to a remote datacentre which can help offload data-intensive tasks (even for the LattePanda Sigma, training models require huge amounts of data processing). Thus, the LattePanda Sigma could be used as a controller for an experimental vehicle, drone, or some other form of aviation (hydrogen airships, let’s bring them back).
Should I buy a LattePanda Sigma?
All in all, the LattePanda Sigma is so powerful that it would make Oppenheimer blush. The 12-core intel processor combined with the 16GB of RAM, two 2.5Gbps ethernet ports, and more connectors than that overflowing draw of cables you have make this machine truly unmatched in the world of single board servers (oh yeah, let’s just bear in mind this is a single board system). So, if you are looking to wield what can only be described as the power of god in the palm of your hand, head over to the Electromaker store where you can find this and everything else you need to build anything your imagination, minus your bank allowance, can handle.
Conclusion
In the realm of single-board servers, the LattePanda Sigma is undeniably a game-changer. Its unparalleled processing power, coupled with an impressive array of features, positions it leagues ahead of its competitors. Whether you're seeking a robust home server, a versatile desktop system, or a powerhouse for automation projects, the Sigma proves to be a worthy investment. Its capabilities extend far beyond its compact size, offering users a blend of performance and flexibility that's hard to find elsewhere. If you're on the hunt for a single-board system that doesn't compromise on any front, the LattePanda Sigma is the choice to make. Dive into the future of computing with this remarkable piece of technology.
Convinced about the prowess of the LattePanda Sigma? If you're wondering, "Where can I buy the LattePanda Sigma?", look no further. Head over to our store for the best LattePanda Sigma prices and deals. Don't miss out on owning this revolutionary single-board server!
