Jeff Geerling Explores the Raspberry Pi 500: A Compact Powerhouse

Jeff Geerling, widely regarded as a leading expert on Raspberry Pi, has provided a detailed teardown and analysis of the Raspberry Pi 500. His insights reveal a device that not only builds on the success of the Pi 400 but also introduces features and design elements that set the stage for future enhancements.

Watch Ian talk about Jeff Geerling's Pi500 Teardown in this episode of The Electromaker Show

In his analysis, Geerling highlights the Pi 500’s blend of powerful hardware, compact design, and forward-thinking PCB layout. With unpopulated M.2 and Power over Ethernet (PoE) pads, the device hints at exciting possibilities for future upgrades. Geerling’s comprehensive review underscores the Pi 500’s potential as a versatile tool.

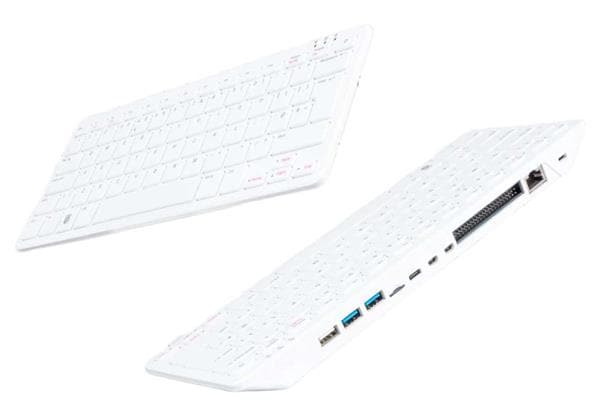

Raspberry Pi 500: A Closer Look

Hardware Highlights: At its core, the Raspberry Pi 500 is powered by the Raspberry Pi 5, offering up to 3x faster performance compared to the Pi 400. It comes equipped with 8GB of RAM and includes a 32GB A2-class microSD card preloaded with Raspberry Pi OS, ensuring a seamless out-of-the-box experience.

Innovative PCB Design: One of the most intriguing aspects of the Pi 500 is its PCB. While the board includes unpopulated pads for an M.2 slot and Power over Ethernet (PoE), these features are not functional in the current model. However, this design showcases the potential for future upgrades, offering exciting possibilities for extended functionality.

Built-In Keyboard: The Pi 500 features a built-in keyboard powered by an RP2040 microcontroller running open-source QMK firmware. This allows for customizable key mappings and opens the door for modifications, such as integrating a mechanical keyboard for a truly bespoke setup.

Key Features and Applications

Performance and Connectivity: The Raspberry Pi 500 boasts dual 4K HDMI outputs, Gigabit Ethernet, and multiple USB ports, making it a versatile option for a variety of tasks, from coding and multimedia projects to everyday computing. Its upgraded hardware ensures smooth performance across demanding applications.

Developer-Friendly Features: With advanced GPIO support and the potential for future M.2 storage and PoE capabilities, the Pi 500 is ideal for developers and tinkerers looking to build or prototype innovative projects. Its compatibility with open firmware adds further flexibility for customization.

Portability and Versatility: The all-in-one, compact design of the Pi 500 makes it perfect for on-the-go use or space-constrained setups. It’s a valuable tool for educators seeking an easy-to-deploy solution or for professionals requiring a portable yet powerful computing device.

The Raspberry Pi 500 redefines compact computing by combining powerful hardware, a sleek design, and the potential for future upgrades. With features like dual 4K HDMI outputs, customizable firmware, and advanced GPIO support, it appeals to a diverse audience, from hobbyists and educators to developers and professionals.
