Inside the ST1VAFE6AX: Biopotential and Motion Tracking in One Compact Sensor

At electronica 2024 in Munich, STMicroelectronics showcased its latest breakthrough in biosensor technology—the ST1VAFE6AX. This compact, all-in-one biosensor brings together advanced biopotential signal detection and motion tracking in a single package, making it ideal for next-generation wearables in health, fitness, and wellness applications.

With integrated AI processing capabilities and low power consumption, the ST1VAFE6AX offers developers a streamlined solution for creating devices that monitor both physiological signals and movement. This unique combination within such a compact design marks a significant step forward in wearable technology, enabling more efficient data handling and analysis in compact formats.

Overview of the ST1VAFE6AX Biosensor

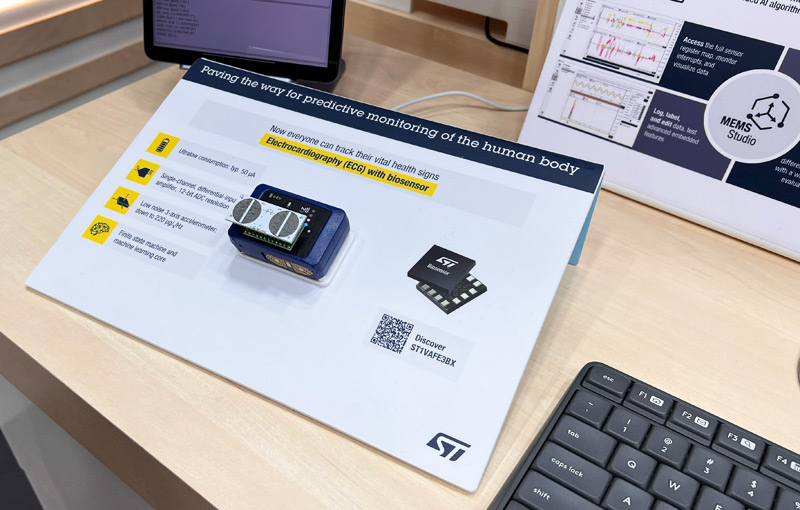

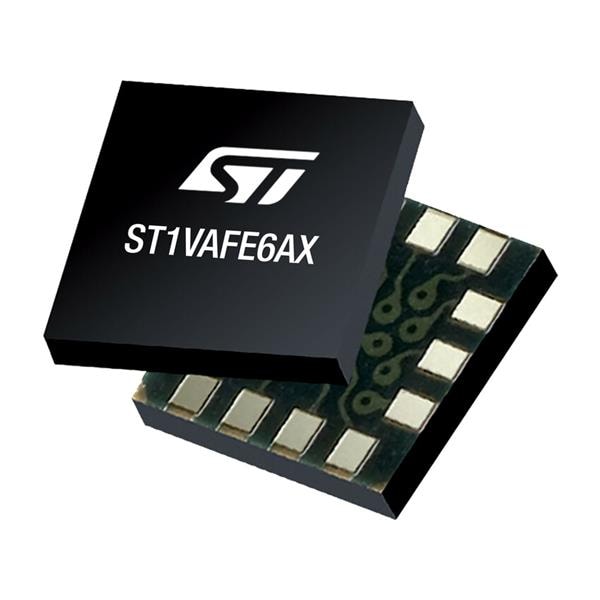

The ST1VAFE6AX biosensor is designed as a dual-function device, combining biopotential signal detection and motion tracking capabilities into a single, ultra-compact package. This sensor integrates a vertical analog front-end (vAFE) for accurate biopotential measurements from sources like the heart and brain, enabling detailed tracking of essential health metrics.

With a built-in 6-axis inertial measurement unit (IMU), the ST1VAFE6AX adds advanced motion tracking that includes a 3-axis accelerometer and a 3-axis gyroscope, capturing comprehensive motion data in real-time. Its compact size, measuring just 2.5 mm x 3.0 mm x 0.71 mm, makes it an ideal solution for portable and wearable devices where space is at a premium.

In addition to its sensing abilities, the ST1VAFE6AX biosensor incorporates AI-driven data processing features, allowing certain analytics and signal smoothing to occur directly on the device. This minimizes the load on external processors, enabling more efficient and responsive applications for health and fitness monitoring.

Key Features and Specifications

The ST1VAFE6AX biosensor stands out for its blend of advanced sensing capabilities and on-device data processing, tailored for applications in health, fitness, and wearable technology. Here’s a closer look at its core features:

• Biopotential Signal Detection: Equipped with vertical analog front-end (vAFE) technology, this sensor accurately detects biopotential signals, such as ECG readings from the heart and EEG signals from the brain, making it suitable for comprehensive health monitoring.
• Motion Tracking: The integrated 6-axis inertial measurement unit (IMU) combines a 3-axis accelerometer and a 3-axis gyroscope, enabling precise motion data tracking for movement analysis in fitness and wellness applications.
• AI-Enhanced Processing: Featuring a Finite State Machine (FSM), Sensor Fusion Low Power (SFLP), Adaptive Self-Configuration (ASC), and a Machine Learning Core (MLC), the ST1VAFE6AX offers versatile data handling and the potential for embedded AI functionality, allowing for responsive, low-latency analysis.
• Low Power Consumption: Designed for "always-on" applications, this sensor supports extended battery life, a crucial factor for wearable devices.
• Compact Design: The sensor’s small form factor (2.5 mm x 3.0 mm x 0.71 mm) makes it ideal for ultracompact solutions, fitting seamlessly into various wearable devices.

These features position the ST1VAFE6AX as a highly adaptable component, ready to support a range of innovative applications within health and fitness monitoring devices.

Application and Real-World Use Cases

The ST1VAFE6AX biosensor is a versatile solution that bridges technical sophistication with practical health and wellness applications. Here are some of the ways it’s being utilized in real-world settings:

• Wearable Health Devices: The sensor’s ability to measure biopotential signals and track motion makes it ideal for wearable devices, such as ECG patches for heart monitoring and fitness wearables that monitor both physical activity and vital signs.

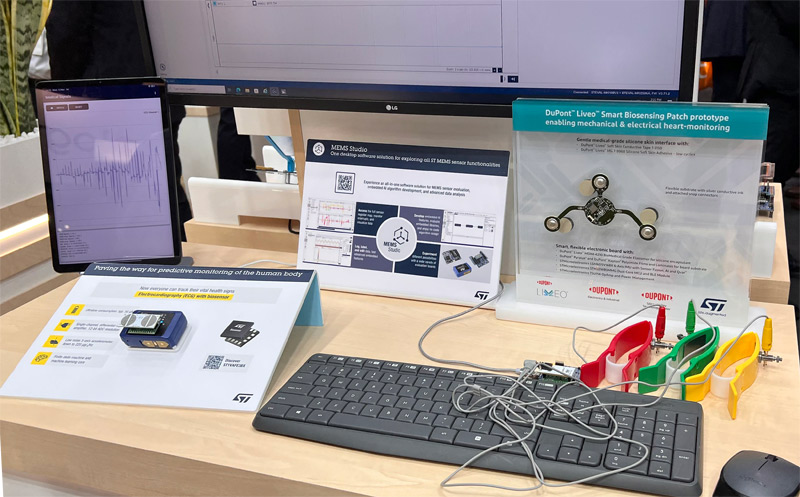

• Prototype with Japon: In collaboration with Japon, STMicroelectronics demonstrated the ST1VAFE6AX in a chest patch prototype. This patch combines the sensor’s biopotential and motion-tracking capabilities to provide continuous heart activity monitoring in a compact, user-friendly form factor.
• Industrial IoT and Remote Monitoring: Beyond personal health, the sensor can support applications in industrial IoT, enabling remote monitoring and tracking in settings that require compact, low-power sensing solutions.

By integrating advanced biosensing and motion-tracking technology, the ST1VAFE6AX allows developers to design next-generation wearables and health monitoring devices with greater efficiency and accuracy.

Getting Started: Development Kits and Software

For developers interested in experimenting with the ST1VAFE6AX biosensor, STMicroelectronics offers a robust ecosystem to facilitate rapid prototyping and development:

• STEVAL-MKI249KA Evaluation Kit: This evaluation kit includes the ST1VAFE6AX sensor along with essential components for testing and integration. It provides developers with hands-on experience in working with the sensor’s biosensing and motion-tracking capabilities.
• MEMS-Studio Software: STMicroelectronics offers MEMS-Studio, a free tool that enables developers to design algorithms and embed AI functionalities. The software provides a graphical interface that simplifies the setup and configuration process, helping developers harness the full potential of the ST1VAFE6AX.

Both the ST1VAFE6AX product page and the STEVAL-MKI249KA evaluation kit page on STMicroelectronics' website provide access to further documentation, resources, and purchasing information, making it easy for developers to get started.
