Sensor Overload! Red Pitaya’s Click Shield Adds Endless Options!
The Red Pitaya Click Shield, showcased at electronica 2024 in Munich, is designed to extend the already versatile capabilities of Red Pitaya boards. Known as the “Swiss army knife” for engineers, Red Pitaya’s platform offers an extensive range of functions, and the Click Shield takes it a step further. With this modular expansion, users can tap into a powerful multi-channel measurement system and add diverse peripherals through mikroBUS™ connectivity, making it an ideal choice for engineers looking for adaptable prototyping solutions.
Check out our Product of the Week episode on the Red Pitaya Click Shield!
What Is the Red Pitaya Click Shield?
The Red Pitaya Click Shield is a modular add-on designed to expand the functionality of Red Pitaya boards by enabling easy integration of a wide array of external modules. Equipped with dual mikroBUS™ sockets, the Click Shield allows users to connect up to two MIKROE Click Boards™ at a time, opening up options for additional peripherals without complicated setup.
With compatibility for over 1,500 Click Boards™, including high-resolution ADCs, GPS modules, LoRa connectivity, LCD displays, motor controllers, and various sensors, the Click Shield offers a quick and seamless way to equip your Red Pitaya with additional capabilities. Engineers and developers can leverage this modularity to enhance prototyping and testing, making it an invaluable tool for projects that require adaptable, high-performance solutions.
This approach enables engineers to add functionality as needed, supporting applications ranging from environmental monitoring to machine interfacing—all while keeping setup flexible and straightforward.
Key Features and Capabilities of the Click Shield
Multi-Channel Measurement System
The Red Pitaya Click Shield facilitates precise, synchronized multi-channel measurement setups by allowing multiple Red Pitaya units to connect and operate in tandem. Engineers can configure multiple devices to share clock and trigger signals with minimal jitter, providing the accuracy needed for complex measurements across various channels. This feature makes the Click Shield ideal for applications where timing and synchronization are critical, such as signal processing and multi-point data acquisition.
Versatile Sensor Integration
Designed with flexibility in mind, the Click Shield enables easy sensor integration across projects. Thanks to its dual mikroBUS™ sockets, users can connect a broad variety of sensors, including environmental, motion, and industrial types. This setup allows for high-frequency data transmission, essential for capturing accurate, real-time data without the need for extensive hardware adjustments. The Click Shield empowers engineers to rapidly switch and test different sensors, streamlining prototyping and expanding Red Pitaya’s adaptability.
Logic Analyzer & Debugging Tools
For engineers focused on development and troubleshooting, the Click Shield offers integrated logic analyzer capability to monitor SPI, UART, and I2C signals. This feature provides a crucial tool for debugging and signal monitoring, allowing users to quickly connect and analyze signals directly from the board. The added convenience of built-in connectors further enhances the Click Shield's functionality, making it an all-in-one solution for engineers tackling complex debugging tasks.
Applications and Real-World Use Cases
The Red Pitaya Click Shield’s versatility makes it suitable for a range of applications, from sensor-based monitoring to multi-channel synchronization setups. Engineers can harness its capabilities for rapid prototyping in fields such as IoT device development, automotive testing, and machine interface testing.

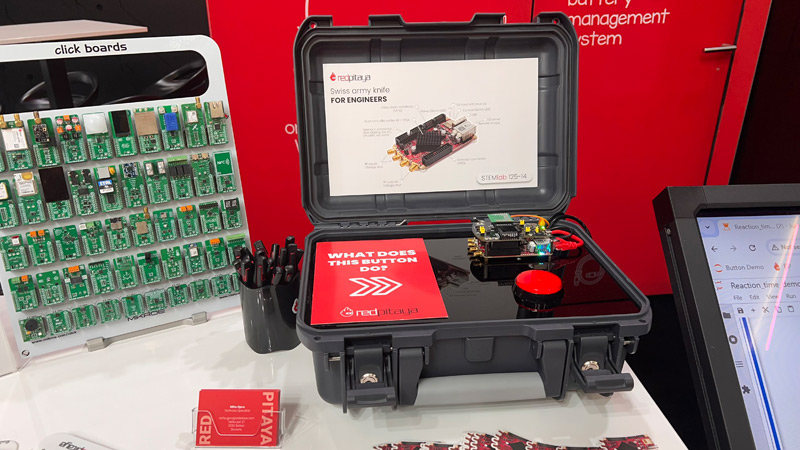

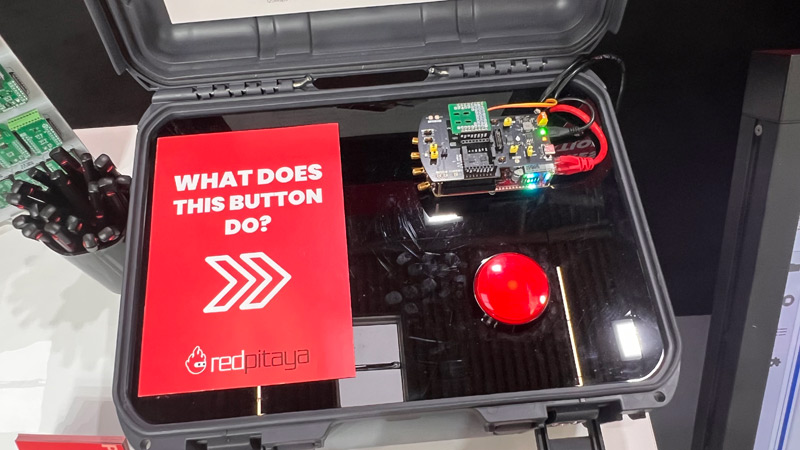

At electronica 2024, Red Pitaya demonstrated the Click Shield’s potential by setting up an interactive reaction time test using a Click Board™ with a button interface. This example showcased how the Click Shield can support quick, hands-on testing, allowing engineers to experiment with real-time data and test their hardware configurations immediately. Such demonstrations highlight the Click Shield's value in simplifying prototyping and providing engineers with accessible, adaptable tools.
With MIKROE releasing new Click Boards™ regularly, Red Pitaya Click Shield users have a steady stream of peripheral updates, ensuring their Red Pitaya setup remains future-proof and adaptable to the latest hardware innovations.
To explore the full range of compatible Click Boards™ and learn more about the Red Pitaya Click Shield, visit the official Red Pitaya product page.
