DIY Dodepan Synthesizer: Portable, Open-Source, and Motion-Responsive

The Dodepan project is an open-source creation blending the appeal of DIY electronics with the art of music-making. Inspired by the unique tones of a traditional handpan, Dodepan offers a compact MIDI controller and standalone synthesizer that fits perfectly into the hands of makers and musicians alike. Built on the versatile Raspberry Pi Pico, this instrument delivers both flexibility and simplicity, inviting hobbyists to explore endless sound possibilities on a budget.

Watch Ian talk about the Dodepan a Cap Touch Standalone Synthesizer, Sequencer, and Midi controller in this episode of The Electromaker Show

Dodepan’s Unique Hardware Design and Features

Capacitive Touch Pads for Expressive Play

The Dodepan features an array of capacitive touch pads that allow for expressive, pressure-sensitive sound creation. Each pad responds to varying touch pressures, letting users produce different tones based on how lightly or firmly they press, much like a traditional handpan. This touch-sensitivity enhances the musical experience, providing subtle control over each note played.

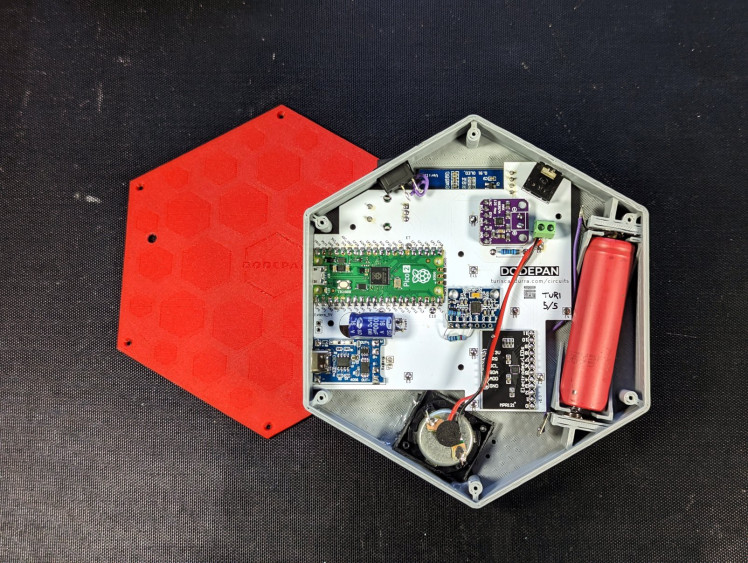

Compact, Portable Build with Built-in Speaker and Rotary Encoder

Designed for portability, Dodepan’s compact case includes a built-in speaker, a screen, and a rotary encoder, enabling users to explore different sounds and MIDI settings with ease. This setup makes the Dodepan an ideal instrument for on-the-go music making, whether you’re at home or out performing.

Open-Source Design and Battery Management

Embracing a fully open-source model, Dodepan offers all its hardware schematics and 3D designs to the maker community. With integrated battery management, the device runs as a true portable instrument, providing freedom to play anywhere. Its open hardware design also means makers can freely customize and experiment with Dodepan’s components.

Advanced Control Features Powered by Raspberry Pi Pico

MIDI and Standalone Synthesizer Functions

The Dodepan serves as both a MIDI controller and a standalone synthesizer, offering flexibility to connect with other MIDI instruments or music software. This dual functionality allows users to create and control a vast range of sounds, bringing versatility to any DIY musician’s setup.

9-Axis IMU for Motion-Based Controls

Equipped with a 9-Axis IMU, the Dodepan lets users incorporate movement into their music. By tilting or panning the device, players can introduce pitch bends and adjust filters, adding a new layer of expression and making each performance unique.

Sequencer and Looper Capabilities

The built-in sequencer and looper allow users to record, replay, and even transpose sound patterns. With the diatonic transposition selector, users can adjust recordings to match the current scale, a valuable tool for both live performances and creative experimentation.

Open-Source Accessibility and Community Appeal

Completely Open Hardware for DIY Builders

The Dodepan’s open hardware design allows DIY builders to customize and modify the instrument freely. With design files, schematics, and 3D print files available, creators can replicate or enhance Dodepan to fit their personal preferences, making it a flexible project for electronics enthusiasts.

Affordability and Customization Potential

As an open-source project, Dodepan is accessible and budget-friendly, appealing to both beginners and experienced makers. Its modular design encourages users to experiment with different materials or components, sparking creativity within the DIY music community.

Integration of Popular Modules and Community Collaboration

Designed with widely available modules, Dodepan is accessible even to users without advanced electronics expertise. The creator encourages community collaboration, allowing makers to bring their own enhancements to the project, building a supportive ecosystem around this unique musical tool.
