Breadboards Without Wires: Exploring the Game-Changing Jumperless V5

Circuit prototyping has traditionally relied on breadboards, but the introduction of the Jumperless breadboard revolutionized this process. Developed by Kevin Capucho and first showcased on the Electromaker project hub, Jumperless eliminates the need for cumbersome jumper wires, making prototyping more streamlined. Traditional breadboards, while effective, often result in a tangle of wires that complicate circuit testing and troubleshooting. Jumperless, on the other hand, allows users to designate circuit connections through software, giving precise control over component linking. This innovative approach makes circuit design faster and cleaner, and significantly reduces errors.

The first version of Jumperless gained attention due to its innovative design, which featured LEDs to provide visual feedback on connections. Additionally, Jumperless allowed users to probe circuits directly from software, making it a valuable tool for rapid prototyping. A key feature of the original design was its compatibility with Arduino Nano headers, which expanded its usability across various development boards.

Jumperless Version 5: Major Enhancements and New Features

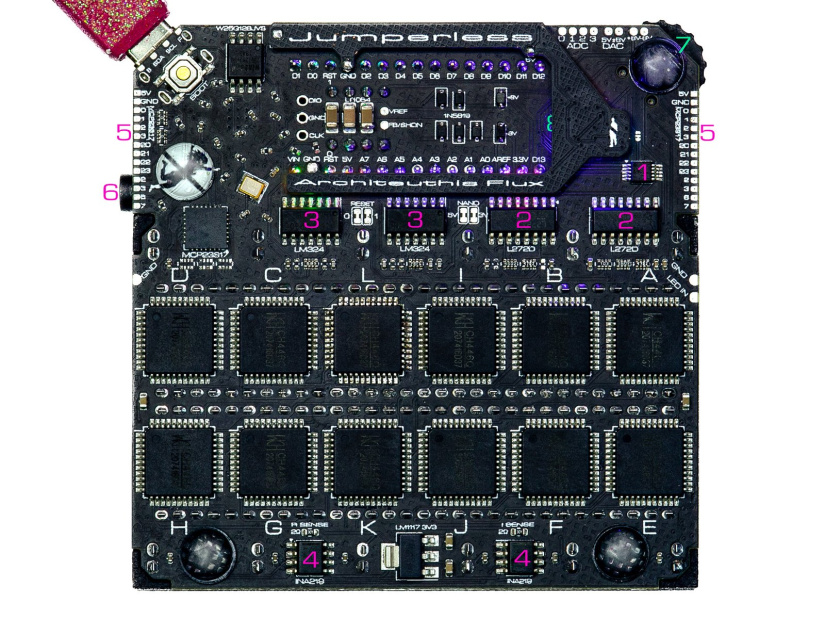

The latest iteration, Jumperless Version 5, marks a significant improvement over previous versions. Building on its predecessors, Jumperless V5 integrates several new features while maintaining the core functionalities that made it successful. At its core, it retains the analog crossbar switches, which allow users to connect any point on the board to another, enabling versatile circuit configurations. This version, however, steps up the game by providing two independent voltage rails. Users can now set custom voltages for both rails, ranging between -8 and +8 volts, which opens up more possibilities for complex circuit designs.

One of the most significant updates in Version 5 is the inclusion of the RP2040 B chip from Raspberry Pi. This upgraded silicon provides a substantial increase in GPIO options, making the board even more versatile for advanced projects. The RP2040 B’s ability to handle more GPIOs is particularly useful for projects requiring multiple input/output channels, as it eliminates the need for external GPIO expanders. This integration allows users to control a larger number of components simultaneously, ideal for more complex designs.

Jumperless V5 also introduces improved multiplexing capabilities, which enable users to probe any point under the board using high-speed switches. This makes it easier to debug and analyze circuit behavior at specific nodes, significantly aiding in troubleshooting during the prototyping phase.

Visual Feedback and Improved User Experience

In addition to its technical enhancements, Jumperless V5 offers an improved user experience through its comprehensive LED feedback system. This version includes over 450 individually addressable LEDs that provide real-time visual feedback for each connection point on the board. This feature enhances usability by giving immediate insight into how components are connected, which is especially helpful when working with complex circuits. The LEDs simulate physical wire connections, making it feel more intuitive for users familiar with traditional breadboards.

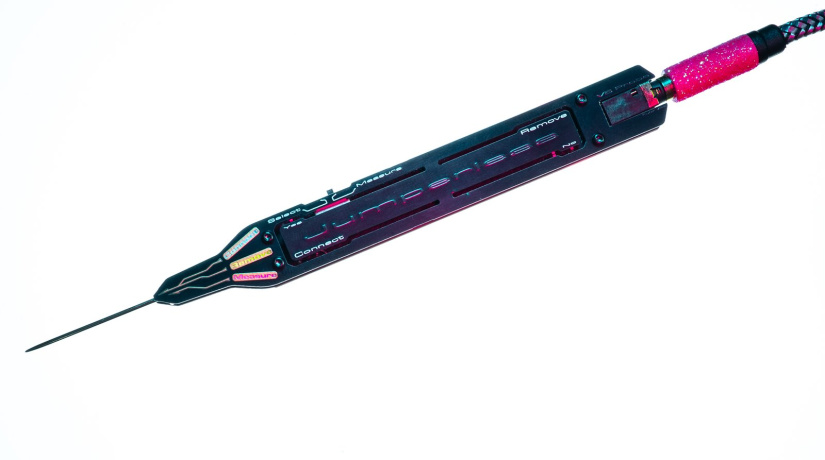

Another standout feature is the enhanced probing system. This system allows users to measure voltages directly at any point on the board, which is invaluable for power profiling and debugging. Jumperless V5’s probing system, combined with its visual feedback, creates a user-friendly environment that simplifies complex tasks, such as voltage measurement and current tracking, without requiring additional tools or hardware.

The Evolution of Jumperless: From Concept to Version 5

With its latest version, Jumperless V5, the breadboard has been reimagined to offer far more than just a prototyping tool—it’s now a comprehensive system that streamlines circuit testing and design. By integrating features like dual voltage rails, a high-speed probing system, and expanded GPIO capabilities, Jumperless V5 stands out as a must-have for both hobbyists and professional electronics developers. As it launches on Crowd Supply, Jumperless V5 is poised to further transform the way engineers and makers approach circuit prototyping, offering an unparalleled level of control, flexibility, and ease of use.
