Arduino Nano Matter and ESP32: The Perfect IoT Duo for Smart Homes
Building a smart home system often involves proprietary hardware, which can limit flexibility and control. However, with the Open Thread Border Router project, you can create a robust, customizable solution using open-source components. By leveraging the Arduino Nano Matter and an ESP32 board, this setup allows you to manage smart home devices without relying on third-party hubs like Google Nest or Alexa.
Watch Ian talk about the Open Thread Border Router in this episode of The Electromaker Show
This innovative project provides a cost-effective way to explore IoT ecosystems while maintaining privacy and hands-on control. The collaboration of these two powerful boards makes it easier than ever to set up a functional thread-based system that works entirely offline. Let’s dive into how this can transform your smart home experience.
What is an Open Thread Border Router?
An Open Thread Border Router acts as a central hub for managing thread networks, allowing seamless communication between smart home devices. Unlike proprietary systems, this open-source solution eliminates the need for dedicated hardware like Google Nest or Alexa, providing a more flexible and independent approach to home automation.
Core Components: The project utilizes two key boards: the Arduino Nano Matter, which serves as the radio core processor, and an ESP32 board, which acts as the control unit for UART communication. While the Arduino Nano ESP32 board is recommended, the project can be adapted to work with any ESP32 board by adjusting pin configurations during setup.
This setup empowers users to build a fully customizable, locally managed thread network, offering control and functionality without reliance on cloud services.
How It Works

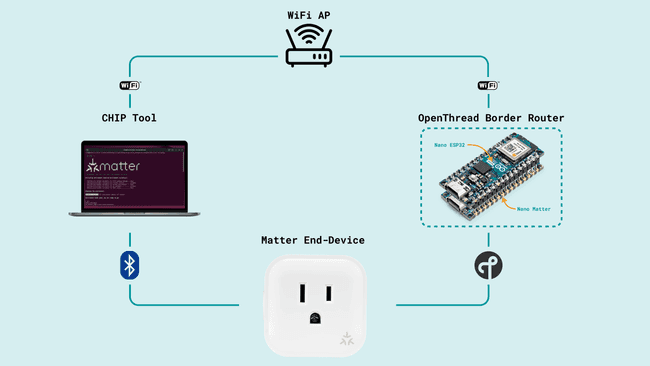

Step-by-Step Integration: The Arduino Nano Matter acts as the radio core processor, while the ESP32 board serves as the control unit. Communication between the two is handled via UART, with the ESP32 board managing configuration and signaling. This allows the Nano Matter to function as a thread hub, enabling seamless device communication.
Software Setup: The setup requires using Silicon Labs software and the Arduino IDE. By configuring the boards, users can establish a fully operational thread network. Additional tools like the chip tool allow for comprehensive thread system management directly from a PC.
Practical Functionality: For instance, a smart relay can be created to control home devices without any third-party hub. This means that users can design fully autonomous systems, free from reliance on cloud-based services or proprietary software, ensuring both flexibility and privacy.
Benefits of the Project
Privacy and Security: One of the standout advantages of this setup is its offline capability. By avoiding reliance on cloud-based solutions, users gain complete control over their data and smart home functionality. The system ensures that your interactions remain private, with no external devices constantly listening or storing data.
Flexibility and Cost-Effectiveness: The use of open-source hardware and software makes this project highly adaptable. At just $21.96 for the Arduino Nano Matter, and with the versatility of ESP32 boards, it provides a low-cost entry point into advanced IoT development. Users can modify and extend the setup to suit specific needs, such as integrating additional sensors or custom protocols.
Hands-On Learning: This project is not only practical but also a great way to dive deeper into the workings of IoT protocols. It empowers users to learn how smart home systems operate at a fundamental level, offering valuable skills and insights for both enthusiasts and developers.
Pricing and Accessibility
Hardware Cost: The Arduino Nano Matter is priced at $21.96 (€21.96), making it an affordable option for IoT enthusiasts. ESP32 boards, which are widely available, offer additional flexibility with varying price points depending on specific features and configurations.
Availability: Both the Arduino Nano Matter and compatible ESP32 boards can be purchased through Arduino's official store and other authorized distributors. These components are readily accessible for global users, ensuring an inclusive entry point for IoT development.
Documentation: Comprehensive, step-by-step tutorials are available on the Arduino Docs platform, guiding users through the setup process. The detailed instructions cater to both beginners and advanced users, making the project easy to implement regardless of experience level.
